Orbit Industries EEL22-150 Emt Conduit Elbow 22.5 Deg 1-1/2 in

Product Description

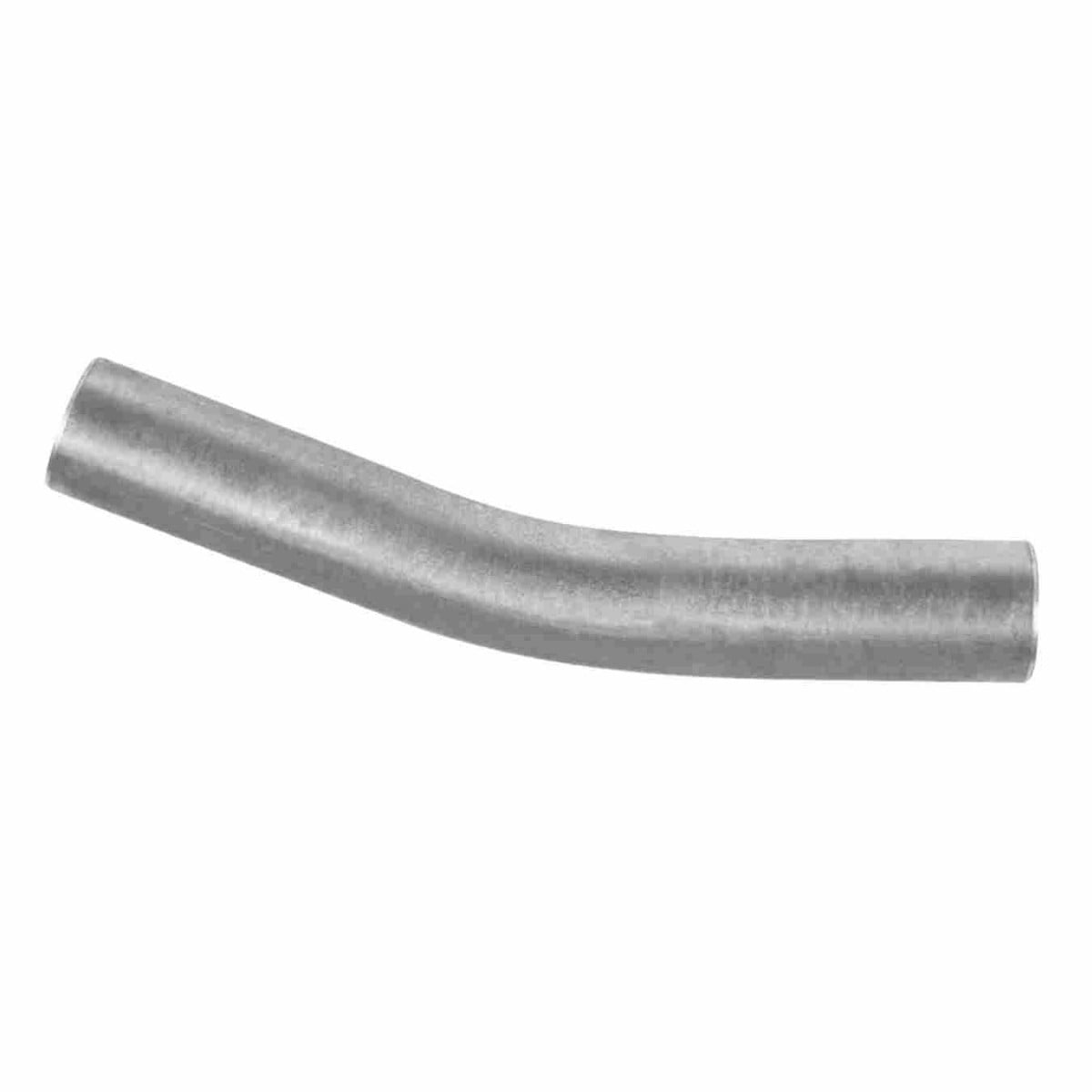

The ORBIT INDUSTRIES EEL22-150 is a 22.5-degree EMT conduit elbow in a 1-1/2 inch trade size, manufactured for use in electrical conduit systems. This elbow is produced from prime EMT conduit stock in accordance with ANSI C80.3 (UL797) specifications. Interior and exterior surfaces are free from defects and feature a smooth welded seam. The elbow is finished using a hot-dip galvanizing process for a thorough, even zinc coating. Licensed electricians and electrical contractors install this fitting wherever a conduit run requires a 22.5-degree change in direction.

This elbow is suited for commercial and residential electrical installations where EMT conduit systems require directional changes without sharp bends. It fits standard 1-1/2 inch trade-size EMT conduit runs and is appropriate for use in exposed or concealed wiring applications. The 22.5-degree angle allows gradual routing around structural elements or between transition points in a conduit layout where a full 45- or 90-degree bend is not practical.

Key Features

• 22.5-degree bend angle for moderate directional changes in EMT conduit runs
• Manufactured to ANSI C80.3 (UL797) specifications
• Hot-dip galvanized zinc coating on interior and exterior surfaces for corrosion resistance
• Smooth welded seam interior reduces friction during wire and cable pulls
• Produced from prime EMT conduit stock with defect-free surfaces
• 1-1/2 inch trade size fits standard EMT conduit in that size range

Compatibility

Designed as an OEM-style replacement and standard fitting for use with 1-1/2 inch trade-size EMT conduit systems in residential and commercial electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the work area before beginning conduit work. Use appropriate EMT couplings and connectors to secure the elbow within the conduit run. Avoid over-tightening set-screw fittings, which can deform the conduit end and compromise the connection.

Technical Specifications

• Trade Size: 1-1/2 inches
• Bend Angle: 22.5 degrees
• Conduit Type: EMT (Electrical Metallic Tubing)
• Standard: ANSI C80.3 (UL797)
• Finish: Hot-dip galvanized zinc coating
• Seam Type: Smooth welded seam
• UPC: 835243054097

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: EEL22-150
