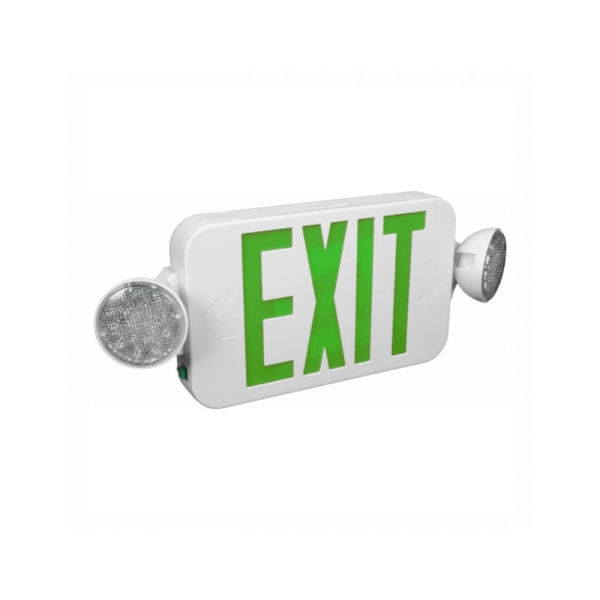

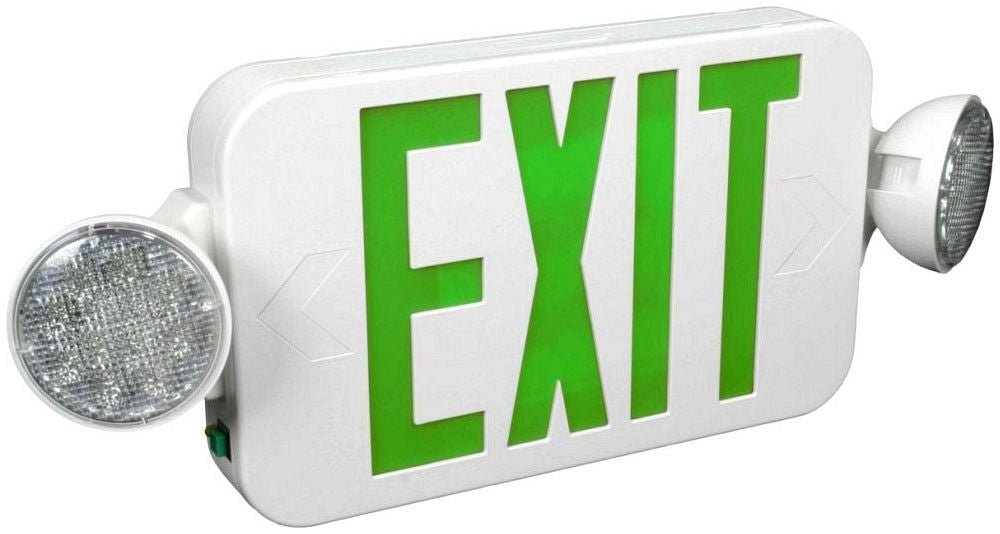

Orbit Industries EECLM-LED-W-G-RC Micro LED Emergency Light/Exit Sign Combination Unit 120/277VAC 17-29/32 Inch W X 4-5/16 Inch D X 8-13/64 Inch H

Product Description

The ORBIT INDUSTRIES EECLM-LED-W-G-RC is a Micro LED Emergency Light/Exit Sign Combination Unit designed for reliable emergency illumination. It operates on a dual-voltage input of 120/277VAC and features long-lasting, energy-saving LED lamps. This unit provides a minimum of 90 minutes of emergency operation, powered by a maintenance-free 6V, 4.5AH sealed lead-acid battery. The durable injection-molded, 5VA flame retardant, high-impact thermoplastic housing ensures longevity, suitable for damp locations.

• Dual-voltage input (120/277VAC) operation for versatile power compatibility.
• Long-lasting, energy-saving LED lamps provide 90 minutes minimum emergency illumination.
• Durable injection-molded, 5VA flame retardant, high-impact thermoplastic housing.

Product Highlights

Micro LED Emergency Light/Exit Sign Combination Unit with Battery Back-up, cULus certified for damp locations.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: EECLM-LED-W-G-RC

Technical Specifications

• Brand: Orbit Industries
• MPN: EECLM-LED-W-G-RC
• Input Voltage: 120/277VAC
• UL Listing: Damp Location
• Lamp Type: LED
• Emergency Operation Duration: 90 Minutes Minimum
• Housing Material: Injection Molded, 5VA Flame Retardant, High Impact, Thermoplastic
• Lamp Head Wattage: 0.75W per lamp head
• Mounting Type: Universal Mounting Plate (ceiling or end)
• Directional Indicators: Snap-out Chevrons
• Double-Face Conversion: Field convertible with included extra faceplate
• Test Feature: Push to Test Switch
• Battery Type: Maintenance-free 6V, 4.5AH Sealed Lead-Acid
• Operation Mode: Fully automatic
• Certifications: cULus
• Finish: White
