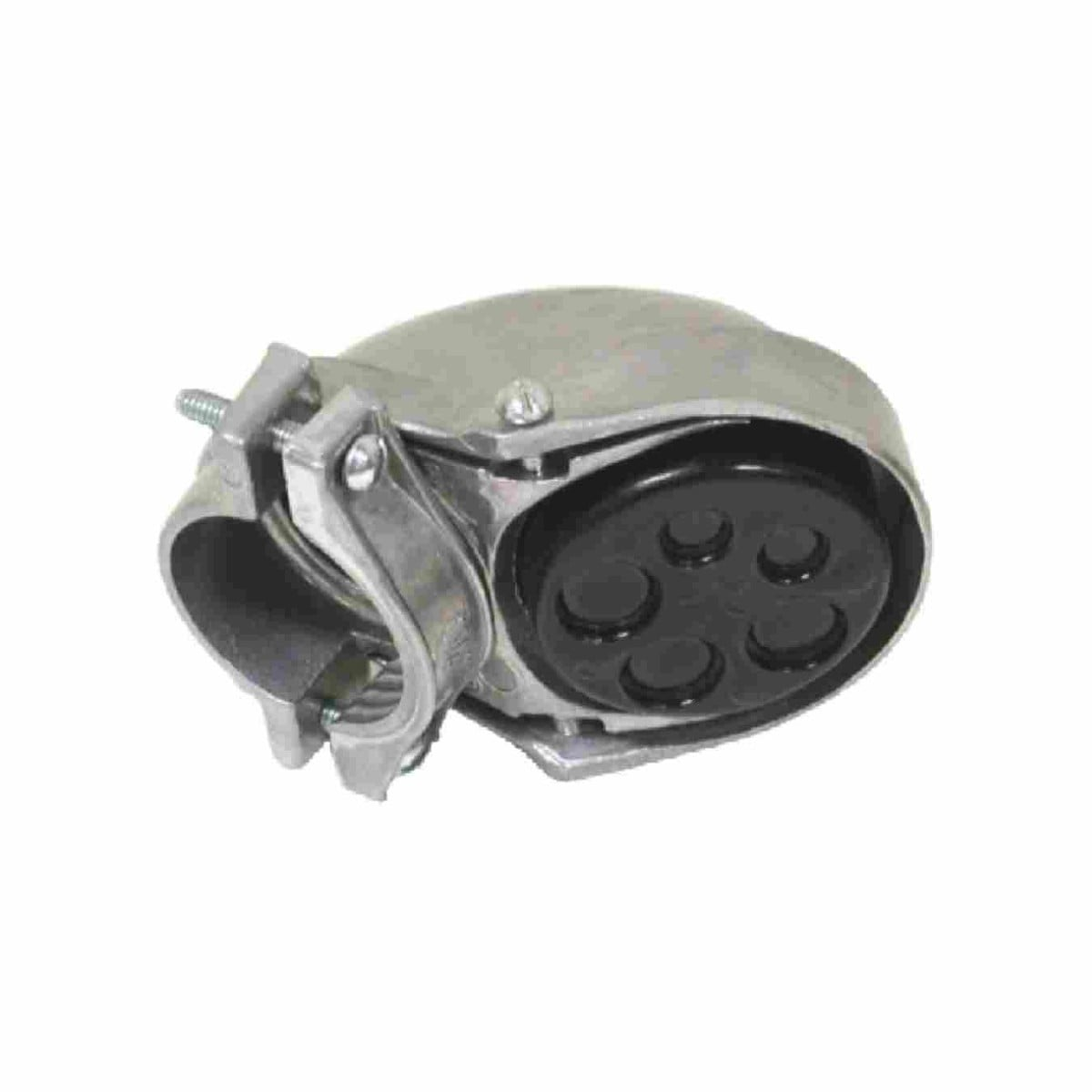

Orbit Industries EC-200 Service Entrance Cap 2 Inch

Product Description

The ORBIT INDUSTRIES EC-200 is a clamp-type service entrance cap designed for use with rigid conduit, IMC, and select EMT applications. This slip-fit, screw-type fitting mounts at the weatherhead entry point of a service entrance to protect conductors from moisture and physical damage where the service drop connects to the building. It carries a 2-inch trade size, making it compatible with standard 2-inch rigid and IMC conduit runs. Electrical contractors and service electricians install this cap as part of a compliant overhead service entrance assembly.

This fitting is suited for residential and light commercial service entrance installations where overhead utility conductors enter the structure. The clamp-type design allows secure attachment without specialized tooling, and the slip-fit construction simplifies field installation on rigid metal conduit or IMC raceways. Some EMT applications may also be compatible depending on local inspection requirements and installation method.

Key Features

• 2-inch trade size fits standard rigid conduit and IMC raceways
• Clamp-type, slip-fit design allows straightforward field installation
• Screw-type fastening secures cap firmly to conduit end
• Compatible with rigid conduit, IMC, and select EMT applications
• Weatherhead-style cap protects service entrance conductors from moisture intrusion

Compatibility

Designed for use with 2-inch trade size rigid metal conduit and IMC. Also suitable for some EMT installations. Verify local inspection authority requirements before use on EMT service entrances.

Installation Notes

Installation of service entrance caps must be performed by a licensed electrician in accordance with applicable NEC requirements for service entrance assemblies. De-energize and coordinate with the utility provider before working near service drop conductors, as the utility side of the service entrance is not de-energized by the main disconnect. Ensure the cap is oriented with the opening facing downward or per local code to shed water away from conductors. Inspect conduit threads and conduit ends before fitting to confirm a proper mechanical connection.

Technical Specifications

• Trade Size: 2 inches
• Conduit Type Compatibility: Rigid Conduit, IMC, select EMT
• Mounting Type: Clamp-type slip-fit screw
• UPC: 835243030510

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: EC-200
