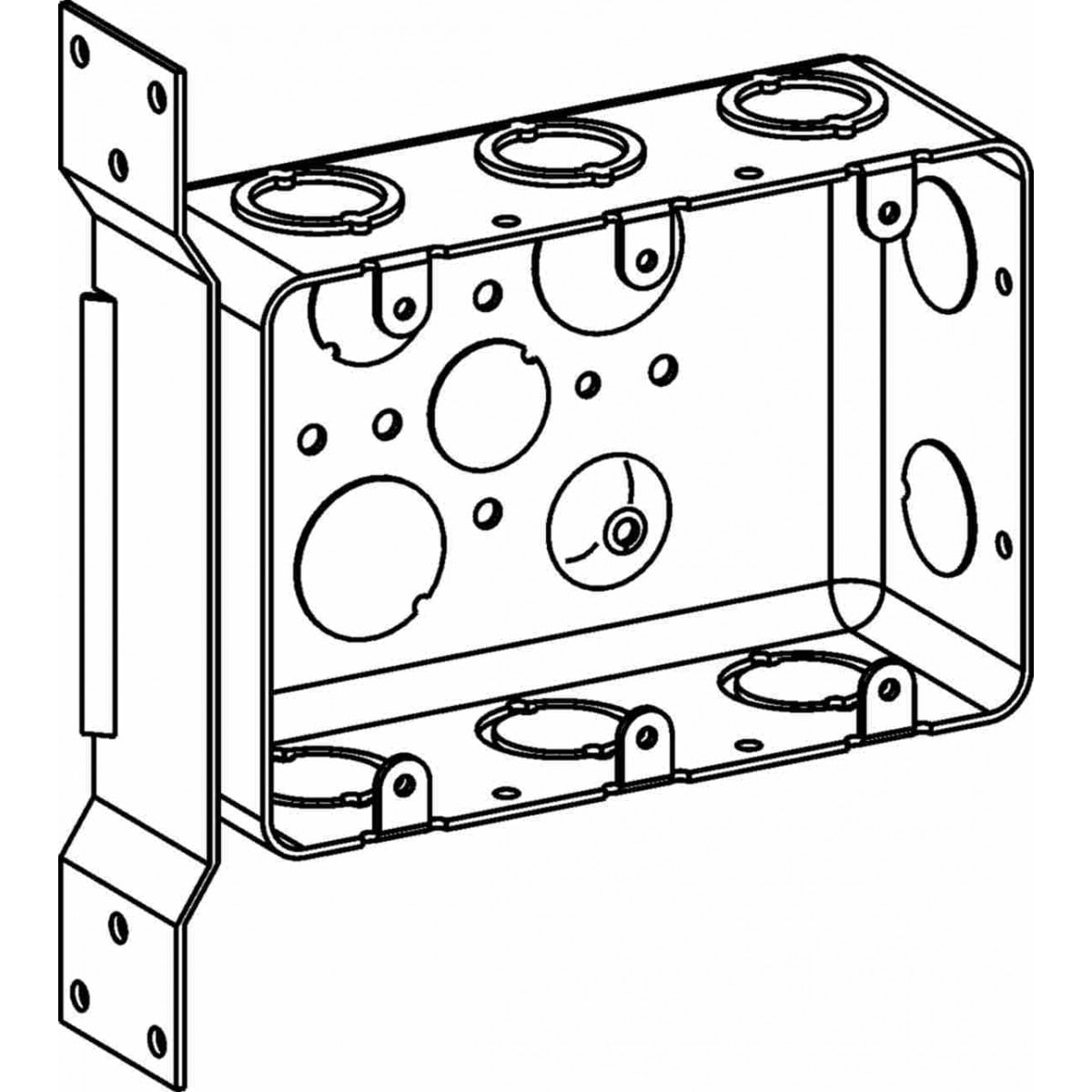

Orbit Industries DHB-3-FB 3-gang Drawn Handy Box Flat Bracket

Product Description

The ORBIT INDUSTRIES DHB-3-FB is a 3-gang drawn handy box with a flat bracket, designed for residential and commercial electrical wiring installations. Constructed from 16-gauge sheet steel, this box measures 5.75 inches x 4 inches x 2.125 inches deep, providing ample interior volume for device and conductor routing. The flat bracket (FB) configuration allows for secure mounting to structural framing members. Knockout provisions on multiple sides and the bottom give electricians flexible conduit and cable entry options on the job. Licensed electricians are the primary installers of this product.

This handy box is suited for use in both residential and commercial wiring applications where a 3-gang device box is required. The drawn steel construction and flat bracket make it appropriate for new construction and retrofit scenarios where box support from a stud or joist face is accessible. Its multiple knockout configurations support a range of wiring methods.

Key Features

• 16-gauge sheet steel construction for rigidity and code-compliant durability
• 3-gang capacity accommodates multiple devices in a single box
• Integrated flat bracket for direct attachment to framing members
• Side knockouts: two 0.5-inch and six combination knockouts (CKO)
• Bottom knockouts: two 0.5-inch and two 0.75-inch for flexible conduit entry
• Depth of 2.125 inches meets fill requirements for standard wiring configurations

Compatibility

Designed as an OEM-style replacement and standard new-construction electrical box for 3-gang device installations in residential and commercial wiring systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit and verify absence of voltage before working in or around the box. Secure the flat bracket firmly to the framing member before pulling conductors to prevent movement during device installation. Ensure knockout entries are properly bushed or fitted with approved connectors to protect conductor insulation.

Technical Specifications

• Box Width: 5.75 inches
• Box Height: 4 inches
• Box Depth: 2.125 inches
• Material: 16-gauge sheet steel
• Gang Configuration: 3-gang
• Side Knockouts: Two 0.5-inch, six combination knockouts (CKO)
• Bottom Knockouts: Two 0.5-inch, two 0.75-inch
• Bracket Type: Flat bracket
• UPC: 835243001046

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: DHB-3-FB
