Orbit Industries C-100AS Type C Conduit Body 1 Inch

Product Description

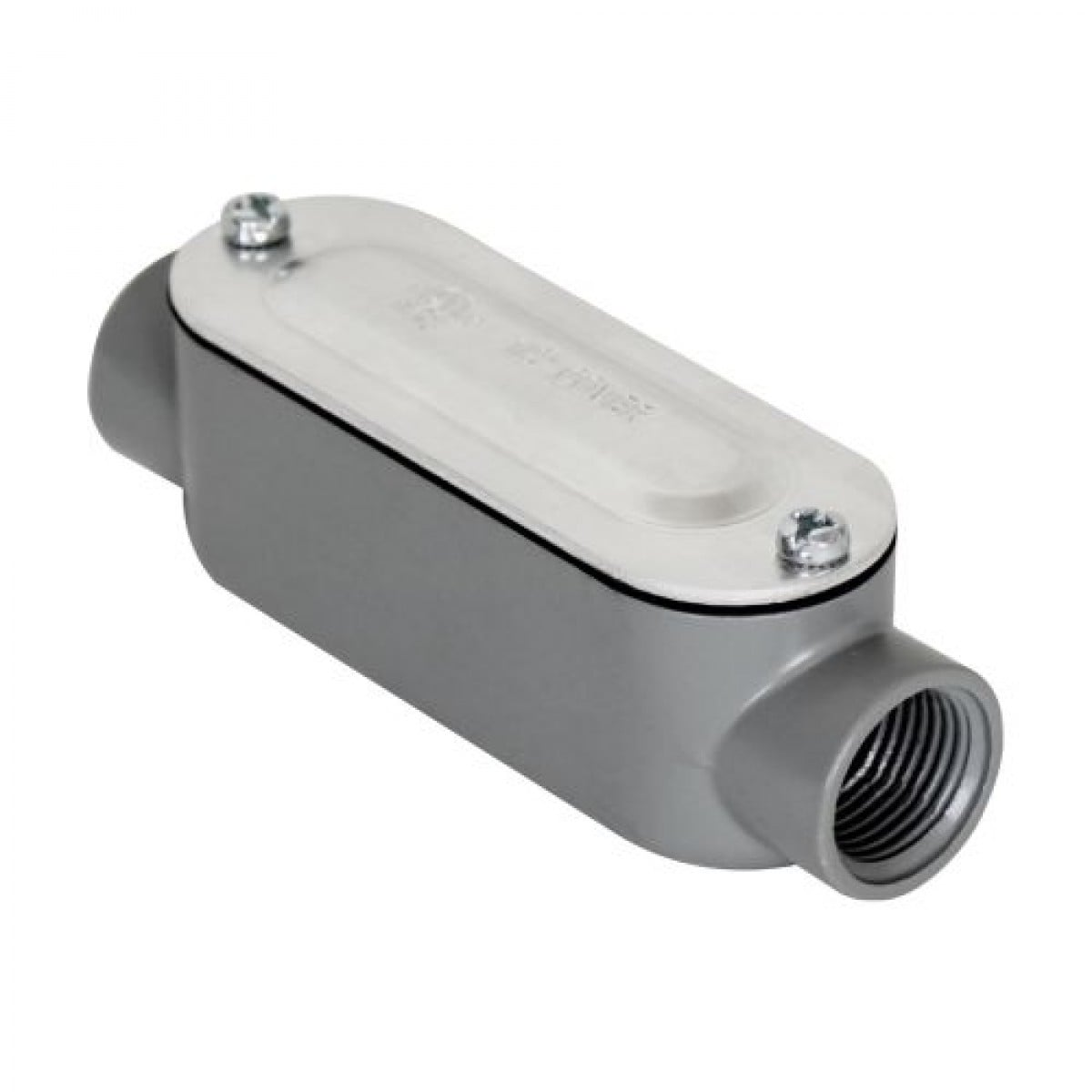

The ORBIT INDUSTRIES C-100AS is a Type C aluminum threaded conduit body supplied with a stamped aluminum cover and watertight gasket. It is designed for use with threaded rigid steel or IMC conduit systems where a change in direction is required. The removable stamped cover allows access for wire pulling, feeding through conductors, and general maintenance. A powder-coated finish combined with the included gasket provides a weatherproof seal. Licensed electricians install this fitting as part of conduit raceways in both service entrance applications and general wiring runs where a low-cost junction access point is needed.

The C-100AS is suited for residential and light commercial electrical installations. It is commonly installed at service entrances where large conductors require directional changes without bending conduit, and it serves as an economical convenience box when additional wire capacity is needed in a conduit run. The smooth interior radius reduces stress on conductors during wire pulls. The 1-inch trade size fits standard threaded rigid or IMC conduit of that size.

Key Features

• Type C configuration provides a straight-through body with a center access opening for wire pulling
• 1-inch trade size fits standard threaded rigid steel and IMC conduit
• Stamped aluminum cover with watertight gasket included for weatherproof installations
• Powder-coated finish resists corrosion in exposed and outdoor environments
• Removable cover simplifies conductor access, feed-through, and routine maintenance
• Eliminates the need to bend large-diameter conduit when changing direction in a run

Compatibility

Designed as an OEM-style fitting for use with 1-inch trade size threaded rigid steel and IMC conduit systems in standard electrical raceway installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and verify the absence of voltage before opening the conduit body or pulling conductors. Secure the conduit body firmly to the conduit using proper thread engagement and verify the gasket is seated correctly before closing the cover to maintain the weatherproof rating. Do not overtighten the cover screws in a manner that could distort the gasket or stamped cover.

Technical Specifications

• Type: C
• Trade Size: 1 inch
• Material: Aluminum
• Cover Type: Stamped aluminum with gasket
• Finish: Powder-coated
• Conduit Compatibility: Threaded rigid steel, IMC
• UPC: 835243029569

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: C-100AS
