Orbit Industries 5SDB-75 2-1/8” deep, 4-11/16” square (5s) box welded with 3/4” KO

Product Description

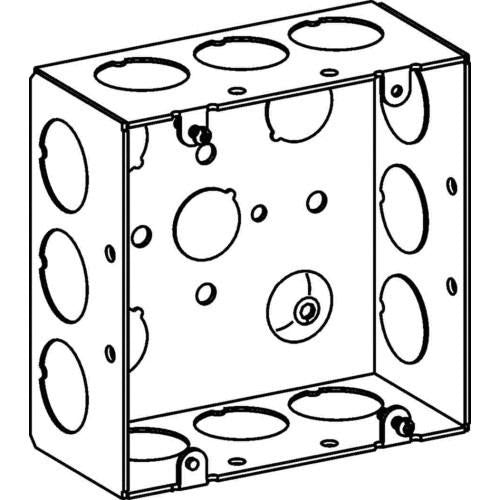

The Orbit Industries 5SDB-75 is a welded deep 5S square box constructed from 16-gauge sheet steel with a galvanized finish. Measuring 4-11/16 inches by 4-11/16 inches, this box offers a 42-cubic-inch capacity. It features 12 3/4-inch knockouts on the sides and two 1/2-inch and two 3/4-inch knockouts on the bottom, suitable for various electrical installations. The box is UL listed and RoHS compliant.

• Features 16-gauge sheet steel construction for durability.
• Provides a 42-cubic-inch capacity for wiring.
• Equipped with 12 3/4-inch side knockouts and four bottom knockouts (two 1/2-inch, two 3/4-inch).

Product Highlights

UL listed and RoHS compliant with a rust-resistant galvanized finish and raised ground emboss.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 5SDB-75

Technical Specifications

• Material: 16 Gauge Sheet Steel
• Standards: UL E227970, 514A Listed, RoHS Compliant
• Type: Deep
• Size: 4-11/16 Inch x 4-11/16 Inch
• Shape: Square
• Number of Knockouts: 16
• Knockouts: (12) 3/4 Inch Side, (2) 1/2 Inch and (2) 3/4 Inch Bottom
• Construction: Welded
• Cubic Capacity: 42 Cubic Inch
• Depth: 2.125 Inch
• Finish: Galvanized
• Category: Switch Box
• Mounting: Screw On, Nail On
