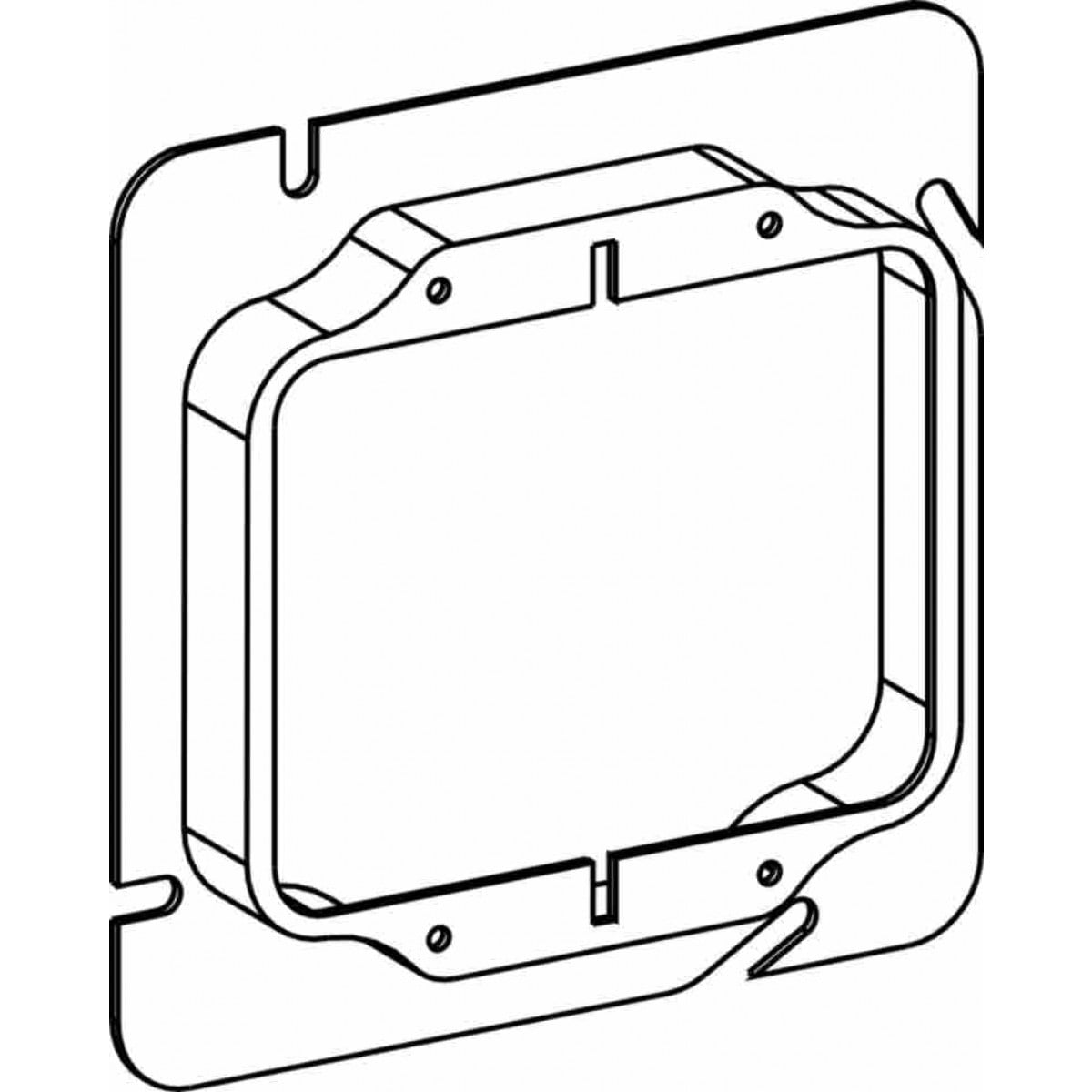

Orbit Industries 52125 2-gang Square Device Ring 1-1/4 Inch Raised

Product Description

The ORBIT INDUSTRIES 52125 is a 2-gang square device ring designed for use with 4-11/16 inch square drawn electrical boxes. The ring raises the device mounting surface 1-1/4 inches above the box face, providing the extension depth needed when boxes are set back in drywall, tile, or other wall finishes. Constructed from galvanized steel, the 52125 provides corrosion resistance suited for standard interior electrical rough-in work. Electricians use this type of plaster ring to bring device mounting flush with the finished wall surface after box installation.

This device ring is used in residential and light commercial electrical installations where 4-11/16 inch square drawn boxes are installed in walls or ceilings. It accommodates 2-gang device configurations, making it appropriate for duplex receptacles, decorator switches, GFCI devices, or similar two-device wiring arrangements. The 1-1/4 inch raised profile suits common drywall and tile depth applications where a standard flat ring would leave the device recessed.

Key Features

• 1-1/4 inch raised profile extends device mounting surface above the box face
• 2-gang configuration supports duplex or two-device wiring layouts
• Compatible with 4-11/16 inch square drawn electrical boxes
• Galvanized steel construction for corrosion resistance
• Plaster ring design accommodates finished wall depth variations

Compatibility

Designed as an OEM-style replacement and standard accessory ring for 4-11/16 inch square drawn electrical boxes in residential and light commercial wiring applications.

Installation Notes

Installation is performed by licensed electricians in accordance with NEC requirements. De-energize the circuit and verify power is off before working on any box or device assembly. The ring mounts directly to the face of the square box using the box's existing mounting holes. Ensure the raised height selected matches the actual wall finish depth to keep devices flush with the finished surface.

Technical Specifications

• Box Size: 4-11/16 inches x 4-11/16 inches
• Gang Configuration: 2-Gang
• Raised Height: 1-1/4 inches
• Box Type: Drawn Square
• Material: Galvanized Steel
• UPC: 835243000605

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 52125
