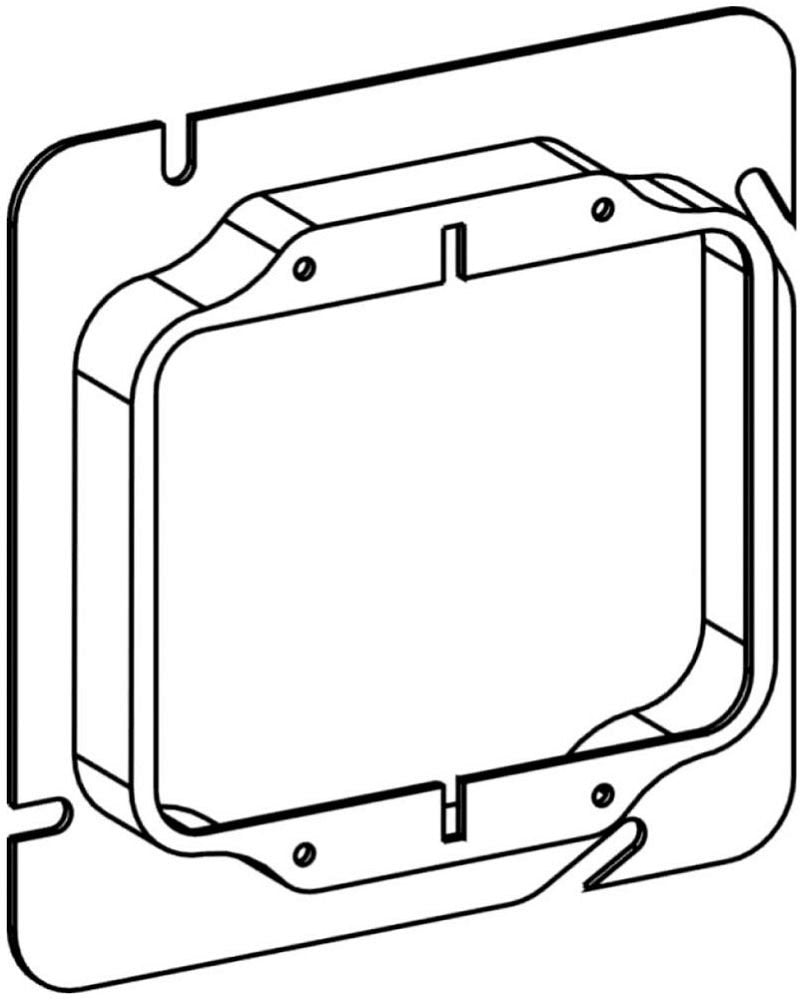

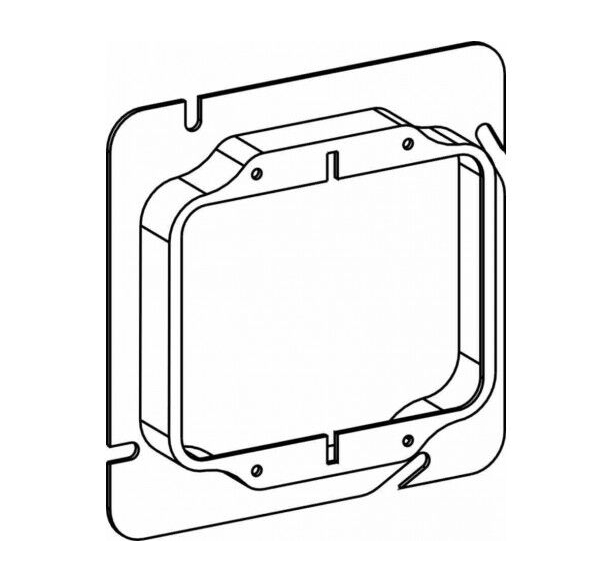

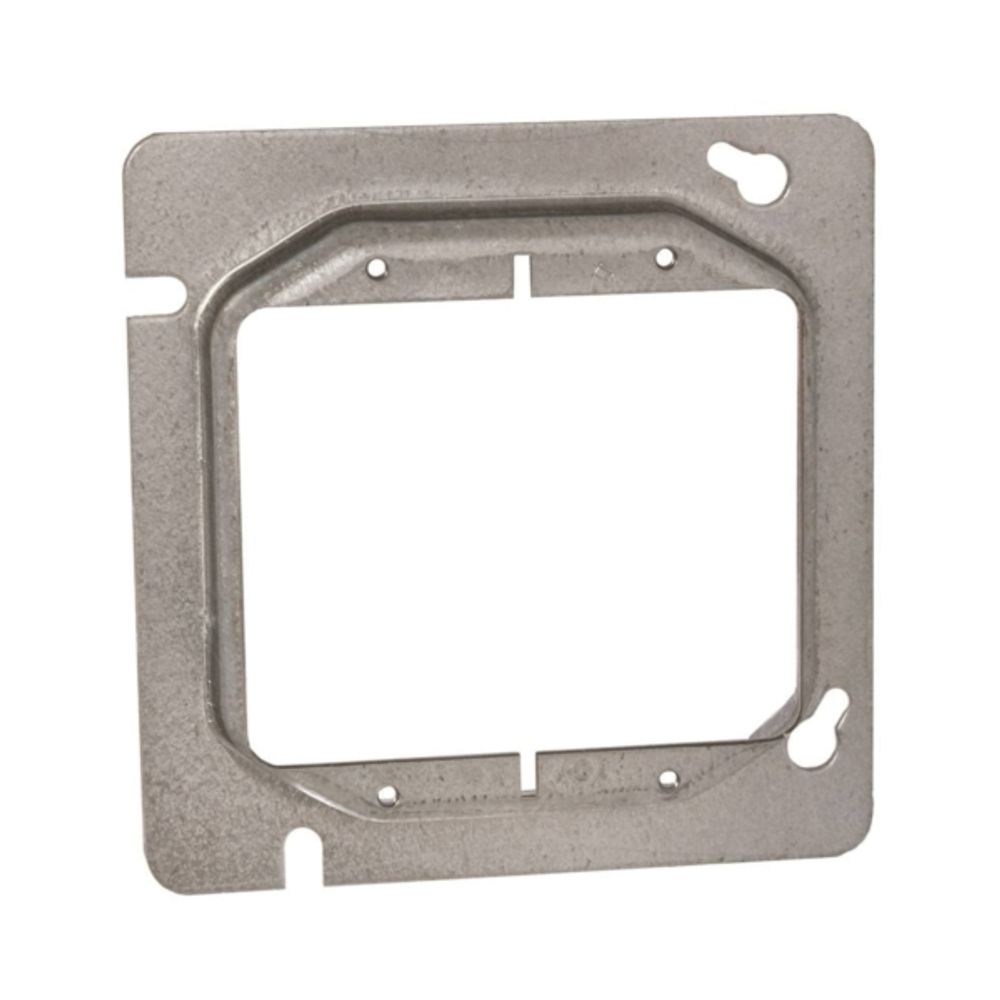

Orbit Industries 52050 4-11/16 Square 2-Gang 1/2 inches Device Ring

Product Description

The ORBIT INDUSTRIES 52050 device ring is a 4-11/16 inch square, 2-gang component designed for use with 4-11/16 inch square (5S) boxes. It facilitates mounting electrical fixtures, switches, and other devices. Constructed from 16 gauge galvanized steel, this ring features a partition that divides 4-inch square boxes into two compartments. Raised rings, ranging from 1/4 to 2 inches, accommodate various drywall and wall thicknesses.

• Partition divides 4 inch square boxes into two compartments
• Designed for use with 2-device covers which have a slot for the partition
• Assemble the box with the partition in place before breaking off at the scored tab to prevent breaking off more tab than needed

Product Highlights

Galvanized steel construction with a partition for 4-inch square boxes, accommodating 2-device covers and various wall thicknesses.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 52050

Technical Specifications

• Brand: ORBIT INDUSTRIES
• MPN: 52050
• Size: 4-11/16 Square
• Gang: 2-Gang
• Raised: 1/2 in
• Shape: Square
• Hole Diameter: #6-32
• Material: 16 ga galvanized steel
• Finish: Galvanized
• Length: 4-11/16 in
• Width: 4-11/16 in
• Type: Switch Box Ring
• Raised Ring Range: 1/4 to 2 in
• Category: Bar Hangers & Outlet Box Accy
• Manufacturer: Orbit Industries, Inc.
• Manufacturer Brand: Orbit Industries, Inc./UMI
• Sub-Category: Gang Box Plaster Ring - Steel
• Capacity: 5.8 in
• Mounting Type: Wall
