Orbit Industries 51075 Square Switch Box 4-11/16 in 1-gang

Product Description

The ORBIT INDUSTRIES 51075 is a drawn galvanized steel square switch box measuring 4-11/16 inches by 4-11/16 inches, supplied with a 1-gang 3/4-inch raised device ring. The box is manufactured using a drawn construction method, which produces a seamless, single-piece steel enclosure suited for flush and surface electrical rough-in work. The included 5S steel device ring raises the wiring device mounting surface 3/4 inches above the box face, accommodating wall finish depth and proper device seating. This assembly is used by licensed electricians for residential and light commercial wiring installations.

This switch box and device ring combination is appropriate for installations where a larger-format square box is required to house multiple conductors, splices, or wiring connections behind a single-gang outlet or switch. The 4-11/16-inch square footprint provides increased interior volume compared to standard 4-inch boxes, making it a common choice in commercial construction and multi-wire branch circuit applications. The galvanized steel finish provides corrosion resistance in typical indoor wiring environments.

Key Features

• Drawn galvanized steel construction for a seamless, durable enclosure
• 4-11/16 x 4-11/16 inch square footprint for high-capacity conductor fill

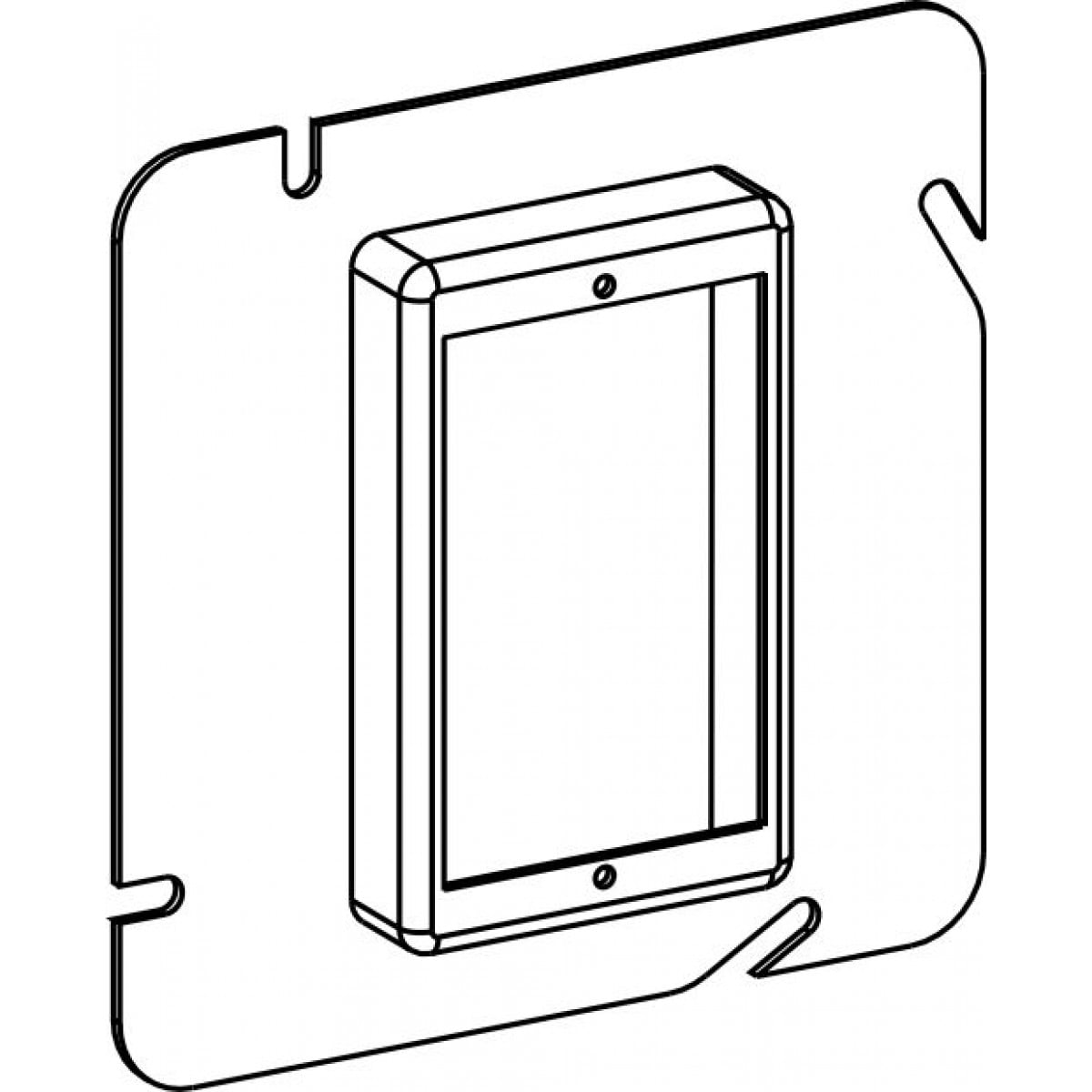

• Includes 1-gang 3/4-inch raised 5S steel device ring for proper device positioning
• Raised ring design accommodates wall finish depth at the device mounting surface
• Suitable for residential and light commercial electrical rough-in work

Compatibility

Designed as an OEM-style replacement and standard rough-in component compatible with 4-11/16-inch square box installations requiring a 1-gang raised device ring configuration.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Shut off and lock out circuit power at the panel before making any wiring connections. Ensure the box is securely fastened to the structural framing or mounting surface before pulling conductors. Verify conductor fill calculations per NEC Article 314 to confirm the box volume is adequate for the number and size of conductors used.

Technical Specifications

• Box Dimensions: 4-11/16 x 4-11/16 inches
• Construction: Drawn
• Material: Galvanized Steel
• Gang Configuration: 1-Gang
• Device Ring Raise: 3/4 inches
• Device Ring Type: 5S Steel Raised Ring
• UPC: 835243000506

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 51075
