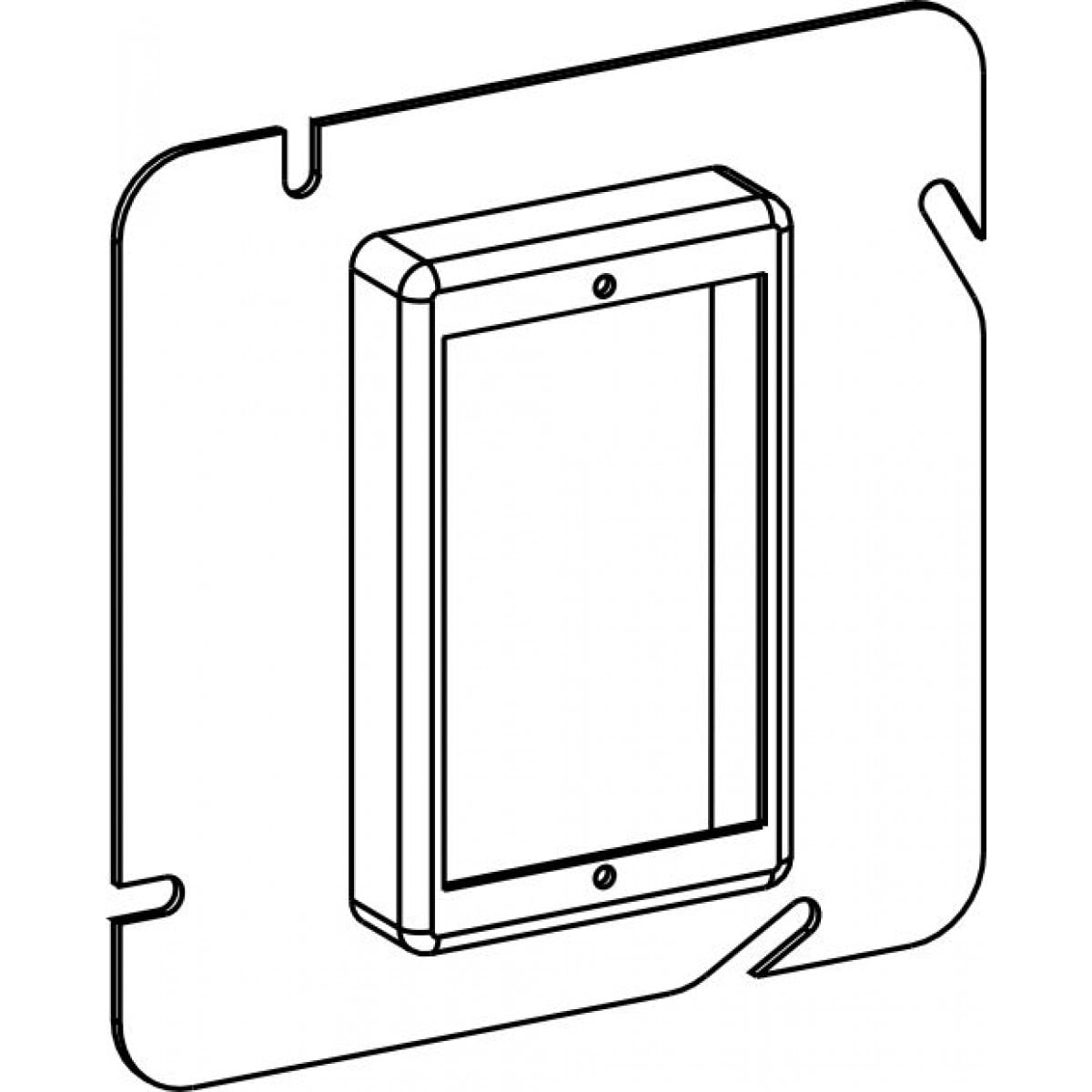

Orbit Industries 51058 1-gang Square Device Ring 5/8 Inch Raised

Product Description

The ORBIT INDUSTRIES 51058 is a 1-gang square device ring designed to raise the mounting surface of a 4-11/16 inch square drawn switch box by 5/8 inch. Constructed from galvanized steel, this raised device ring provides a flush, code-compliant finished surface for installing standard single-gang wiring devices in square box applications. It is a standard electrical rough-in component installed by licensed electricians during new construction or remodel work where deeper or flush device mounting is required over a square outlet box.

This device ring is used with 4-11/16 inch square drawn electrical boxes in residential and light commercial applications. The 5/8 inch raise accommodates wall finish thickness or device setback requirements, making it suitable for standard drywall installations. It mounts directly to the face of the square box and accepts a single-gang wiring device such as a receptacle, switch, or low-voltage bracket.

Key Features

• 5/8 inch raised profile accommodates standard drywall and finish thickness
• Fits 4-11/16 inch square drawn electrical boxes
• 1-gang configuration for single-gang wiring devices
• Galvanized steel construction for corrosion resistance in standard indoor installations
• Drawn construction for consistent dimensional accuracy

Compatibility

Designed as an OEM-style replacement and standard fitment device ring for 4-11/16 inch square drawn electrical boxes requiring a 1-gang, 5/8 inch raised configuration.

Installation Notes

Installation is performed by a licensed electrician. De-energize the circuit at the breaker panel and verify absence of voltage before working in the box. The device ring fastens to the face of the square outlet box using the box's mounting screws. Work must comply with applicable National Electrical Code (NEC) requirements for box fill and device mounting.

Technical Specifications

• Box Size: 4-11/16 inches x 4-11/16 inches
• Raise Height: 5/8 inches
• Gang Configuration: 1-Gang
• Construction Type: Drawn
• Material: Galvanized Steel
• UPC: 835243000490

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 51058
