Orbit Industries 4SDB-75-FB Flush Mount Galvanized Switch Box

Product Description

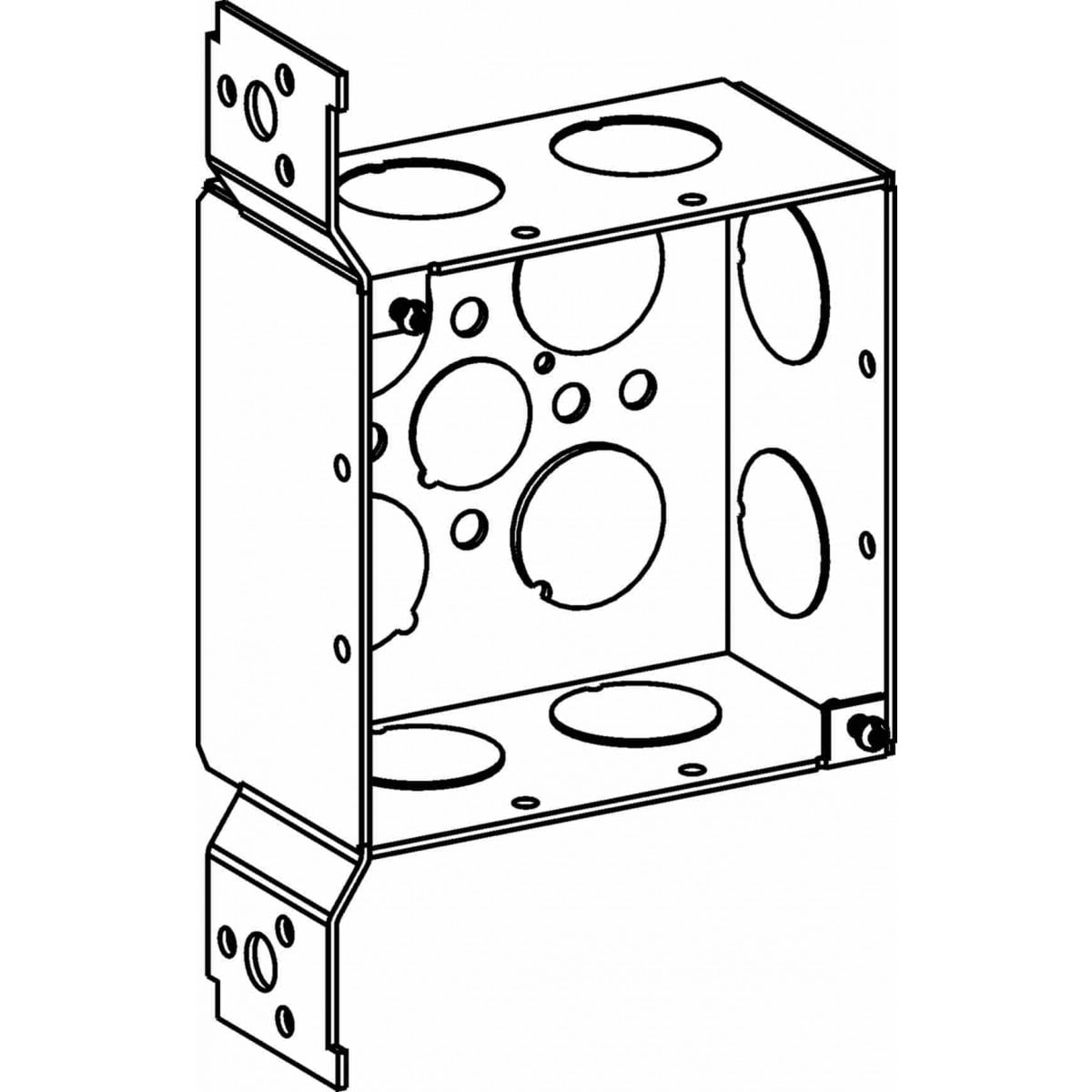

The ORBIT INDUSTRIES 4SDB-75-FB is a flush-mount galvanized steel switch box designed for residential and commercial electrical wiring installations. Formed from 16-gauge sheet steel with a galvanized finish, this 4-inch by 4-inch by 2-1/8-inch box provides a sturdy, corrosion-resistant enclosure for switches, receptacles, and wiring devices. Six 3/4-inch knockouts on the sides and four 3/4-inch plus one 1/2-inch knockout on the bottom give installers flexible conduit entry options. The included bracket supports flush mounting in standard wall and ceiling assemblies.

This switch box is suited for new construction and retrofit wiring work in both residential and light commercial settings. Its 4-inch by 4-inch footprint and 2-1/8-inch depth accommodate standard wiring devices and allow adequate wire fill. Electricians typically use this box in conduit-fed branch circuit installations where a flush, clean finish at the wall surface is required. The galvanized finish provides corrosion resistance appropriate for dry and damp interior locations.

Key Features

• 16-gauge sheet steel construction for rigid, durable enclosure
• Galvanized finish for corrosion resistance in interior applications
• Six 3/4-inch side knockouts for flexible conduit routing
• Bottom knockouts: four 3/4-inch and one 1/2-inch for additional conduit entry
• Flush-mount design with bracket included for wall and ceiling installations
• 4 inches x 4 inches x 2-1/8 inches for adequate device and wire fill capacity

Compatibility

Designed as an OEM-style replacement and standard new-installation switch box compatible with 3/4-inch and 1/2-inch conduit systems in residential and commercial flush-mount electrical applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (NEC) requirements for electrical enclosures. De-energize the branch circuit at the panel before beginning any wiring work. Ensure knockout openings are properly bushed or fitted with approved connectors to protect wire insulation. Verify local code requirements for box fill calculations before pulling conductors.

Technical Specifications

• Dimensions: 4 inches x 4 inches x 2-1/8 inches
• Material: 16-gauge sheet steel
• Finish: Galvanized
• Side Knockouts: 6 x 3/4 inches
• Bottom Knockouts: 4 x 3/4 inches, 1 x 1/2 inches
• Mount Type: Flush with bracket
• UPC: 835243011243

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 4SDB-75-FB
