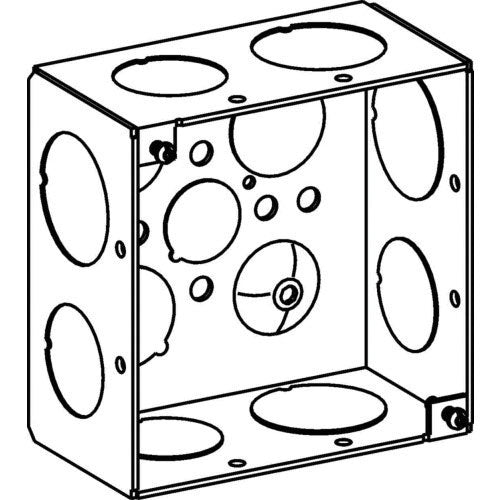

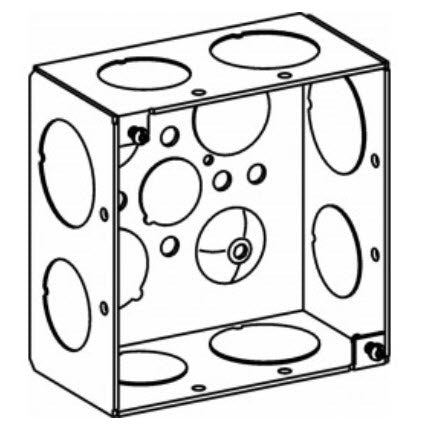

Orbit Industries 4SDB-75/100 4 inches Square Deep Box Welded With 3/4 inches & 1 inches KO

Product Description

The ORBIT INDUSTRIES 4SDB-75/100 is a 4" square deep box welded with 3/4" & 1" knockouts, ideal for installing lighting fixtures, switches, and receptacles on ceilings and walls. This 16-Gauge sheet steel constructed box ensures easy installation and added durability. It features knockouts and metal clad cable clamps.

• Has raised ground emboss
• Has a dimension of 4-Inch x 4-Inch
• Comes with knockouts

Product Highlights

The Orbit Industries deep switch box meets UL and RoHS standards and includes brackets for direct stud mounting and a 10-32 ground screw with a solid #12-AWG 7-Inch pigtail.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 4SDB-75/100

Technical Specifications

• Material: 16 Gauge Sheet Steel
• Standards: UL E227970 Listed, cULus Certified, RoHS Compliant
• Type: Deep
• Size: 4 Inch Width x 4 Inch Height
• Shape: Square
• Number of Knockouts: 12.0000
• Knockouts: (4) 3/4 Inch, (4) 1 Inch Side, (2) 1/2 Inch, (2) 3/4 Inch Bottom
• Cubic Capacity: 30.3
• Depth: 2.125
• Item Name: Switch Box
• Finish: Galvanized
• UPC: 83524301456
• Manufacturer Name: Orbit Industries
• Manufacturer Part Number: 4SDB-75/100
• Brand Name: Orbit Industries
• UNSPSC: 39121308
