Orbit Industries 4SDB-50/75 Deep Switch Box 4-inch x 4-inch x 2-1/8-inch 30.3-cubic-inch

Product Description

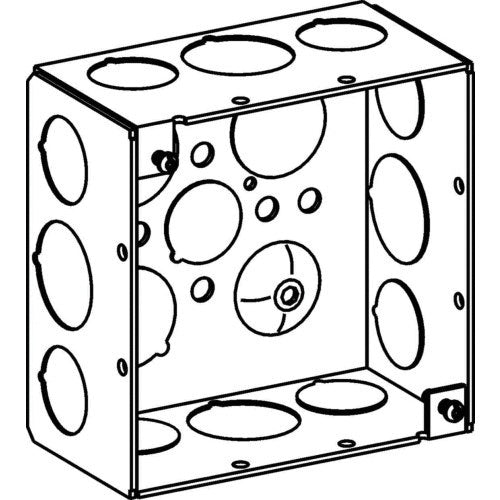

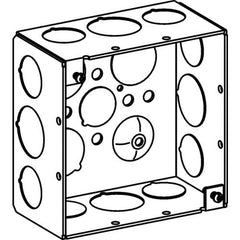

The Orbit Industries 4SDB-50/75 Deep Switch Box is a square-shaped electrical enclosure with a 30.3-cubic-inch capacity. Measuring 4-inch x 4-inch x 2-1/8-inch, it features welded 16 GA sheet steel construction with a corrosion-resistant galvanized finish. It includes eight 1/2-inch and four 3/4-inch side knockouts, plus two 1/2-inch and two 3/4-inch bottom knockouts. This switch box is UL/cULus listed and RoHS compliant.

• Knockouts Size: (8) 1/2-Inch, (4) 3/4-Inch Sides, (2) 1/2-Inch, (2) 3/4-Inch Bottom
• Raised ground emboss
• Maximum capacity of 30.3-Cubic-Inch

Product Highlights

Welded 16 GA sheet steel construction with galvanized finish, UL/cULus listed, and RoHS compliant.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 4SDB-50/75

Technical Specifications

• Brand: Orbit Industries
• MPN: 4SDB-50/75
• Material: 16 Gauge Sheet Steel
• Certifications: UL E227970 Listed, cULus Certified, RoHS Compliant
• Box Type: Deep
• Dimensions: 4 Inch x 4 Inch x 2-1/8 Inch
• Shape: Square
• Number of Knockouts: 16
• Knockout Configuration: (8) 1/2 Inch, (4) 3/4 Inch Side, (2) 1/2 Inch, (2) 3/4 Inch Bottom
• Construction: Welded
• Cubic Capacity: 30.3 Cubic Inches
• Product Type: Switch Box
• Finish: Galvanized
• UPC: 83524300092
• UNSPSC: 39121308
