Orbit Industries 4RB-NM Steel Octagon Switch Box 4x4x1.5 in

Product Description

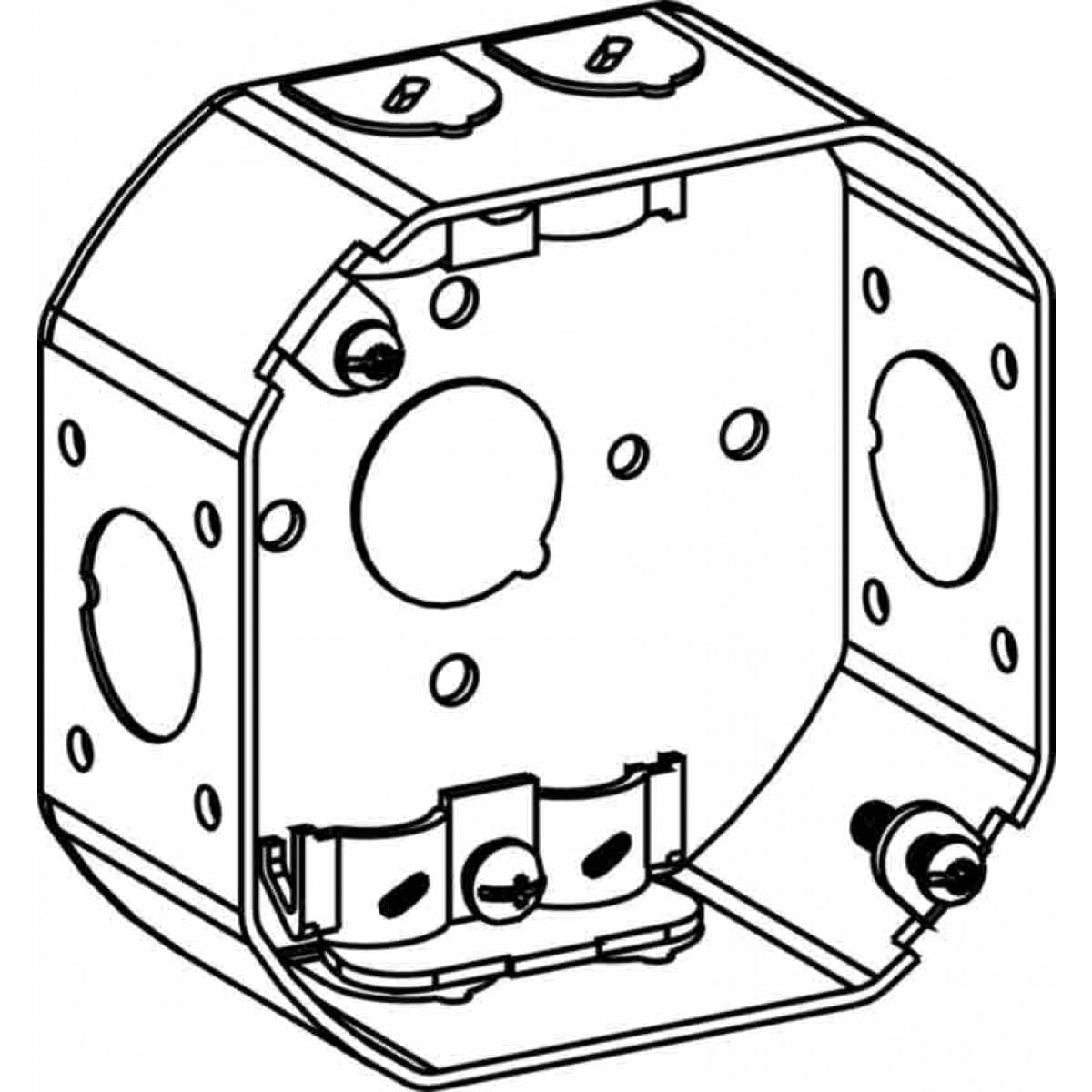

The ORBIT INDUSTRIES 4RB-NM is a steel octagon switch box designed for nonmetallic (NM) cable installations in residential and commercial electrical wiring. Constructed from 16-gauge sheet steel, this welded box measures 4 inches x 4 inches x 1.5 inches deep, providing a sturdy and code-compliant enclosure for device or junction applications. The box ships ready for installation with pre-configured knockout arrangements on the sides and bottom, reducing field prep time. Licensed electricians rely on this type of box for secure, grounded enclosures in standard stud-framed walls and ceilings.

This switch box is suited for residential new construction and commercial light-gauge framing where NM cable is the primary wiring method. It accommodates standard device installations and junction needs at 4-inch octagon mounting patterns. The knockout layout includes two 0.5-inch side knockouts, four loom-style side knockouts, and one 0.5-inch bottom knockout, giving installers flexible cable entry options for a variety of rough-in scenarios.

Key Features

• 16-gauge sheet steel construction for durability and rigidity
• Welded box design for structural integrity
• Side knockouts: two 0.5-inch and four loom-style openings
• Bottom knockout: one 0.5-inch opening
• 4 inches x 4 inches octagon footprint fits standard mounting patterns
• Rated for NM cable wiring applications

Compatibility

Designed as an OEM-style replacement and standard-fit switch box for residential and commercial NM cable wiring installations requiring a 4-inch octagon steel box.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Disconnect and lock out all power to the circuit before beginning any work. Secure the box to the framing member using appropriate fasteners before pulling and terminating cable. Do not exceed the cubic-inch fill capacity indicated on the box or in the NEC fill calculation for the device and conductors used.

Technical Specifications

• Material: 16-gauge sheet steel
• Box Type: Octagon switch box, welded
• Dimensions: 4 inches x 4 inches x 1.5 inches deep
• Side Knockouts: Two 0.5-inch, four loom-style
• Bottom Knockout: One 0.5-inch
• Wiring Method: NM cable
• UPC: 835243011403

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 4RB-NM
