Orbit Industries 43075X 4in Square Steel Plaster Ring 3/4in Raised

Product Description

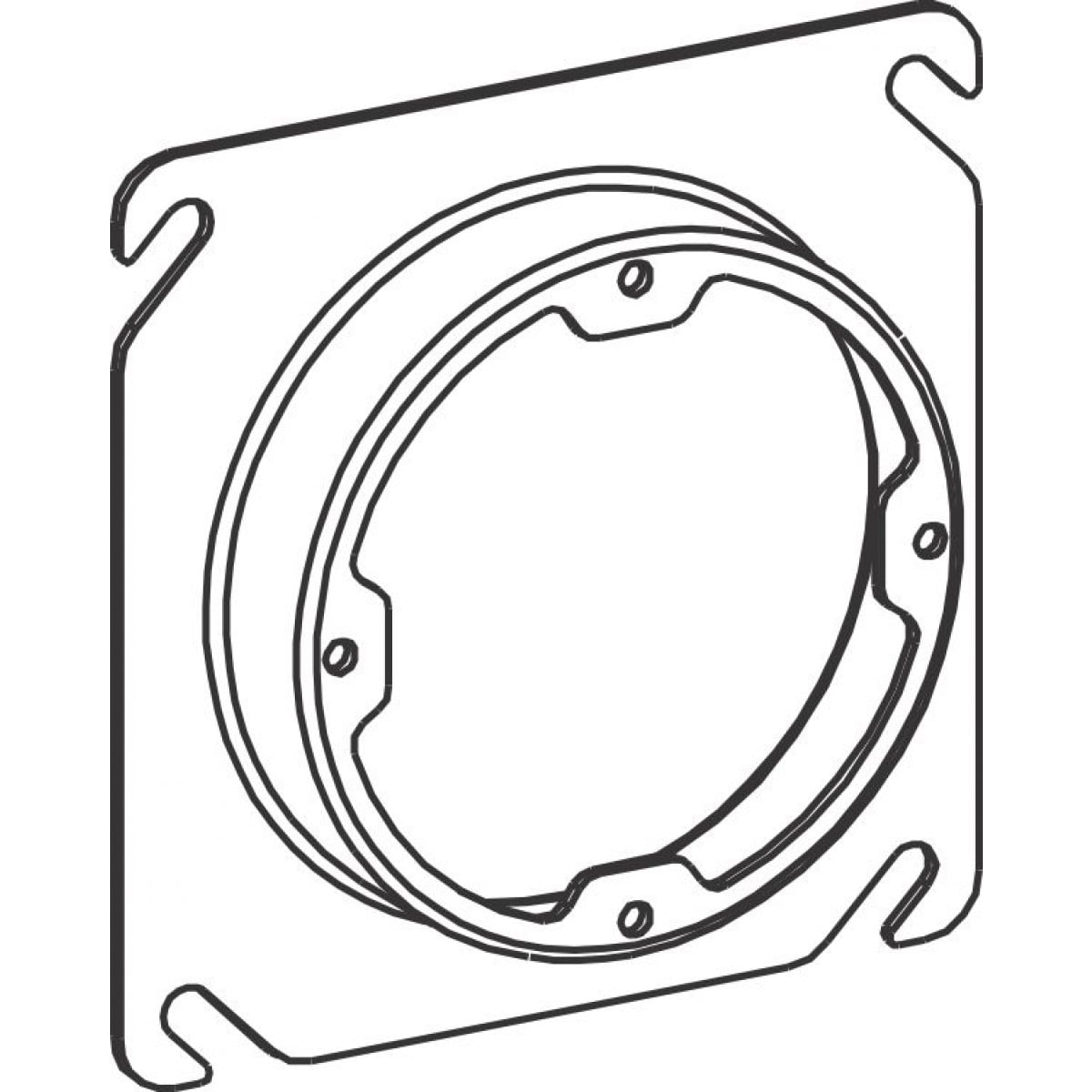

The ORBIT INDUSTRIES 43075X is a 4-inch square steel plaster ring designed for use with 4-inch square electrical boxes in new construction and retrofit wiring installations. The ring raises the mounting surface 3/4 inches above the box face, providing the necessary extension when finished wall or ceiling surfaces — such as drywall or plaster — sit above the box edge. An open-center design allows wire routing without obstruction. Dual-direction fixture mounting tabs with 8-32 threaded holes give installers flexible orientation options for device or fixture positioning. Licensed electricians and low-voltage installers working under NEC guidelines will find this ring straightforward to incorporate into standard rough-in work.

This plaster ring is suited for residential and light commercial electrical rough-in applications where 4-inch square boxes are used as the primary junction or device box. The 2-3/4 inches on-center tab spacing accommodates standard fixture and device yokes. The dual-direction tab orientation allows the ring to be rotated to match horizontal or vertical mounting requirements depending on installation layout and local code requirements.

Key Features

• 3/4 inches raised profile provides clearance for finished wall and ceiling surfaces over 4-inch square boxes
• Dual-direction fixture mounting tabs allow horizontal or vertical device orientation
• 8-32 threaded mounting holes for secure fixture and device attachment
• 2-3/4 inches on-center tab spacing compatible with standard device yokes
• Open-center design for unobstructed wire routing
• Steel construction for durability in standard interior environments

Compatibility

Designed as an OEM-style replacement and standard fitment accessory for 4-inch square electrical boxes requiring a raised plaster ring extension in residential and light commercial applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the circuit at the breaker panel and verify absence of voltage before beginning work on the box. Secure the plaster ring flush to the face of the 4-inch square box before applying finished wall surfaces, ensuring the tabs are oriented to match the fixture or device mounting direction. Do not overtighten mounting screws, as this can strip the 8-32 threads in the ring.

Technical Specifications

• Box Compatibility: 4 inches Square
• Raised Height: 3/4 inches
• Tab Spacing (O.C.): 2-3/4 inches
• Thread Size: 8-32
• Mounting Tab Configuration: Dual Direction
• Material: Steel
• UPC: 835243004474

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 43075X
