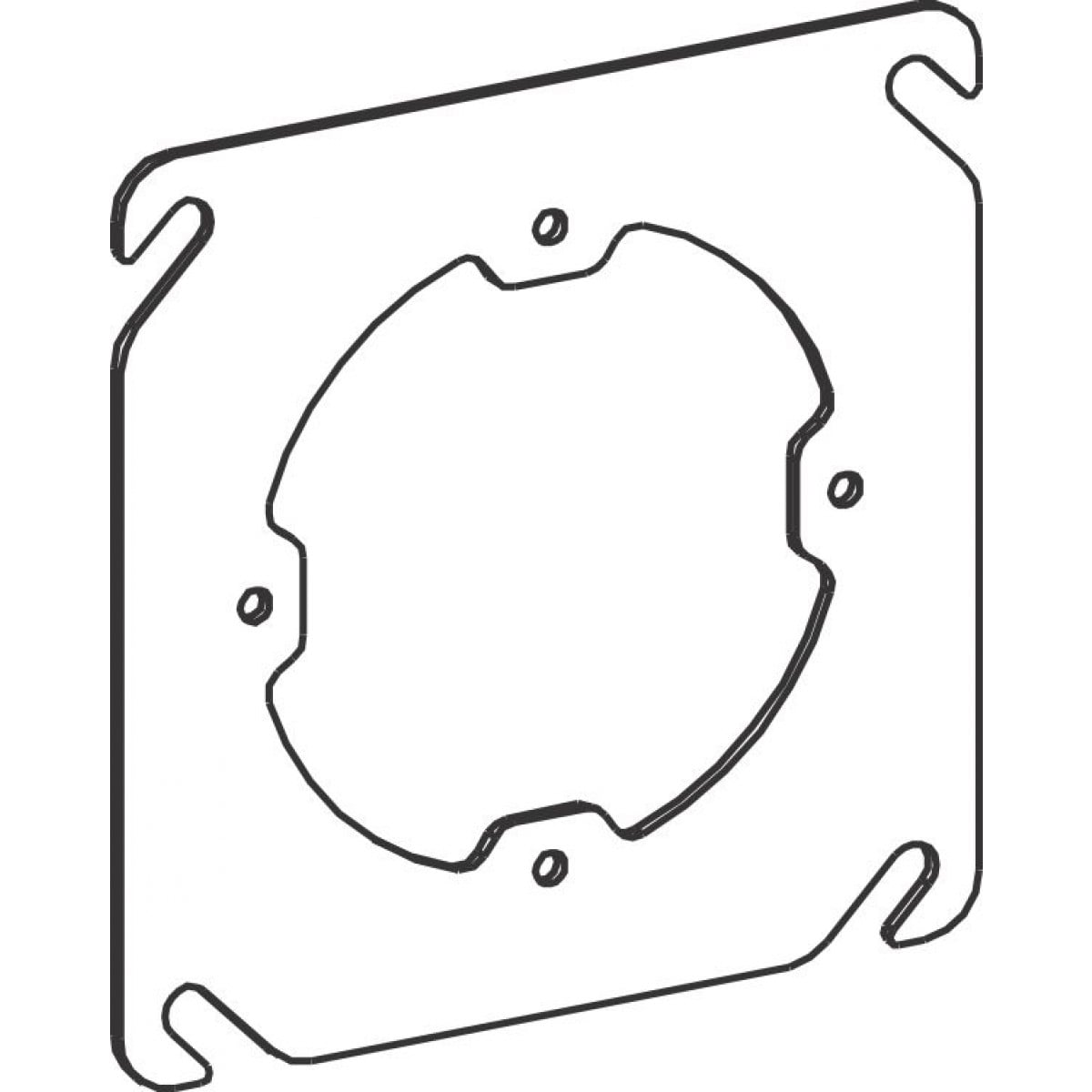

Orbit Industries 43000X 4 in Square Flat Steel Plaster Ring

Product Description

The ORBIT INDUSTRIES 43000X is a 4-inch square flat steel plaster ring designed for use in electrical rough-in and finish work. This open-style ring provides a flush mounting surface over 4-inch square electrical boxes, allowing fixtures, devices, and cover plates to be secured at the correct finished-wall depth. The dual-direction fixture mounting tabs with 8-32 threaded holes give installers flexibility in orienting the ring to meet layout requirements. It is a standard component in commercial and residential electrical installations handled by licensed electricians.

The 43000X is suited for use with 4-inch square electrical boxes in both new construction and retrofit applications. The flat profile makes it appropriate for installations where no mud-ring depth offset is needed. The 2-3/4 inch on-center mounting tab spacing accommodates standard fixture and device hardware. Electricians use this ring in wall and ceiling box installations where a clean, flush transition between the box and the finished surface is required.

Key Features

• 4-inch square flat profile for flush, zero-offset installations
• Dual-direction mounting tabs allow flexible fixture orientation
• 8-32 threaded holes for secure fixture attachment
• 2-3/4 inch on-center tab spacing matches standard device hardware
• Open-style center for full wiring access
• Steel construction for durability in standard electrical applications

Compatibility

Designed as an OEM-style replacement and standard-fit accessory for 4-inch square electrical outlet boxes in residential and commercial wiring installations.

Installation Notes

Installation is performed by a licensed electrician. De-energize the circuit and verify power is off at the panel before beginning any box or ring work, in accordance with NEC requirements. The ring seats over the face of the 4-inch square box and is secured before the finished surface is applied. Do not overtighten mounting screws, as this can strip the 8-32 threads in the ring tabs.

Technical Specifications

• Box Size Compatibility: 4 inches square
• Profile: Flat
• Style: Open
• Mounting Tab Spacing: 2-3/4 inches on center
• Mounting Tab Orientation: Dual direction
• Thread Size: 8-32
• Material: Steel
• UPC: 835243004443

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 43000X
