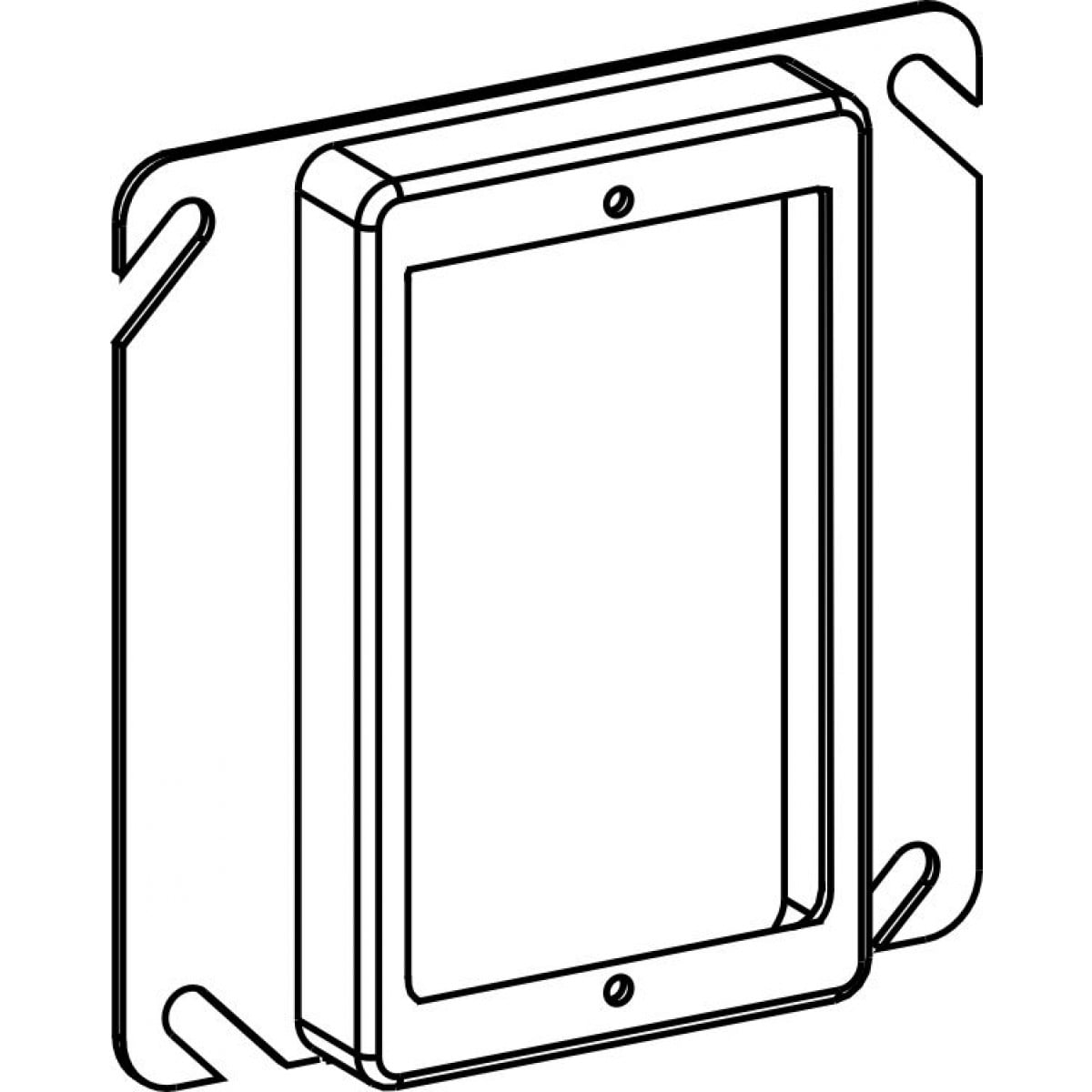

Orbit Industries 41200T 2 Inch Raised 1 Gang Square Device Ring

Product Description

The ORBIT INDUSTRIES 41200T is a raised square device ring designed for use with 4-inch square electrical boxes in commercial and residential wiring installations. This 1-gang steel ring raises the device plane 2 inches above the box face, accommodating tile, thick wall finishes, or recessed-box installations where a flush surface mount is not practical. Constructed from galvanized steel, the 41200T provides corrosion resistance suited to conduit-fed wiring systems. Licensed electricians and electrical contractors install this component as part of a complete outlet or switch rough-in assembly.

This device ring is used in standard 4-inch square box installations where the finished wall or floor surface sits above the box face. Common applications include tile walls, masonry installations, and commercial wiring runs where 4S boxes are paired with raised covers to bring device mounting to the finished surface plane. The 2-inch raise makes it appropriate for thicker finish materials where standard low-raise rings would fall short.

Key Features

• 2 inch raised profile accommodates thick tile and masonry finishes
• 1-gang configuration for single device mounting
• Fits standard 4-inch square electrical boxes
• Galvanized steel construction for corrosion resistance
• Welded construction for structural integrity

Compatibility

Designed as an OEM-style replacement and standard-fit accessory for 4-inch square (4S) galvanized steel electrical boxes used in commercial and residential conduit wiring systems.

Installation Notes

Installation is performed by a licensed electrician in accordance with NEC requirements for device box assemblies. De-energize the circuit at the panel before working on any box or device ring. The ring is secured to the 4-inch square box using the appropriate machine screws before pulling and terminating conductors. Do not over-tighten mounting screws, as this can distort the ring and prevent flush device seating.

Technical Specifications

• Box Size: 4 inches x 4 inches
• Raise Height: 2 inches
• Gang Configuration: 1 Gang
• Material: Galvanized Steel
• UPC: 835243015579

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 41200T
