Orbit Industries 2db50-5 2-gang weatherproof outlet box 2-5/8 inches deep (5) 1/2 inches hubs

Product Description

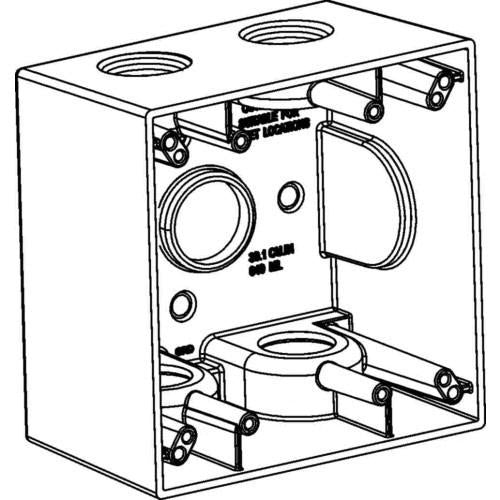

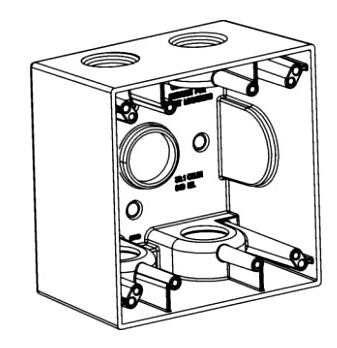

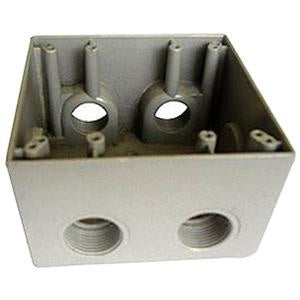

The Orbit Industries 2DB50-5 is a 2-gang weatherproof outlet box constructed from powder-coated die-cast copper-free aluminum. This square box measures 4-9/16 inches by 4-1/2 inches by 2-5/8 inches, providing a capacity of 39.1 cubic inches. It includes lugs and two closure plugs for installation and features five 1/2-inch holes. The box has a NEMA 3R rating and is cULus listed and RoHS compliant.

• Ground screw installed for secure grounding
• Includes two closure plugs for proper installation
• Features five 1/2-inch holes for conduit connections

Product Highlights

Weatherproof 2-gang outlet box with NEMA 3R rating, cULus listed, and RoHS compliant.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 2DB50-5

Technical Specifications

• Number of Gangs: 2
• Type: Weatherproof Outlet Box
• Depth: 2-5/8 inches
• Number of Hubs: 5
• Hub Size: 1/2 inch
• Material: Copper-Free Die Cast Aluminum
• Certifications: cULus Certified, RoHS Compliant
• Dimensions (W x H): 4-9/16 inches x 4-1/2 inches
• Shape: Square
• NEMA Rating: NEMA 3R
• Volume: 39.1 cubic inches
• Finish: Powder Coated
• UL File Number: E227970
