Orbit Industries 2B75-4 2-gang box 2” deep with 4 outlet holes 3/4” size device mount

Product Description

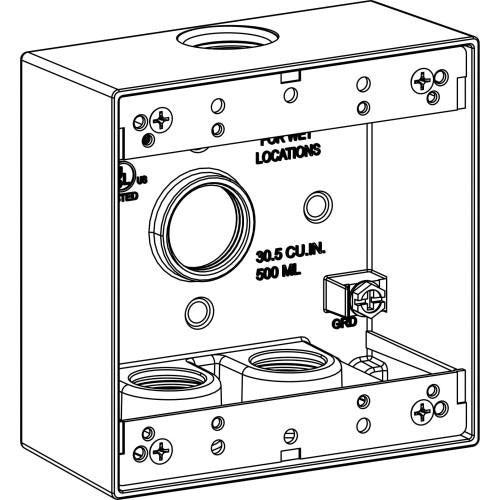

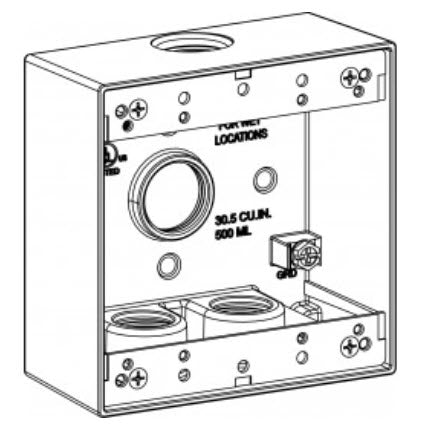

The Orbit Industries 2B75-4 is a 2-gang weatherproof outlet box constructed from powder-coated die-cast copper-free aluminum. It features four 3/4-inch hub holes and a 2-inch depth, designed for device mounting. With a 30.5 cubic inch capacity, this box is suitable for wet locations, offering NEMA 3R enclosure protection. It is cULus listed and RoHS compliant, ensuring safety and environmental standards.

• Ground screw installed for secure grounding.
• Weather-proof design with NEMA 3R enclosure rating for wet locations.
• Constructed from powder-coated die-cast copper-free aluminum.

Product Highlights

Features a 30.5 cubic inch capacity, NEMA 3R rating, and includes mounting hardware for wet location applications.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 2B75-4

Technical Specifications

• Material: Copper-Free Die Cast Aluminum
• Color: Gray
• Shape: Square
• Finish: Powder Coated
• UNSPSC: 39121305
• Hub Size: 3/4 Inch
• Certifications: cULus Certified, RoHS Compliant, UL (Canada and US)
• NEMA Rating: NEMA 3R
• Cubic Capacity: 30.5
• Number of Hubs: 4.0000
• Number of Gangs: 2.0000
• Energy Star Flag: No
• Outlet Box Type: Weatherproof Device Box
• Mounting Hardware Included: (2) Closure Plug, Ground Screw, Lug
• Hub Location: (1) Top, (2) Bottom, (1) Back
• Application: Wet Location
