Orbit Industries 1B75-5 1-gang box 2 inch deep with 5 outlet holes 3/4 inch size device mount

Product Description

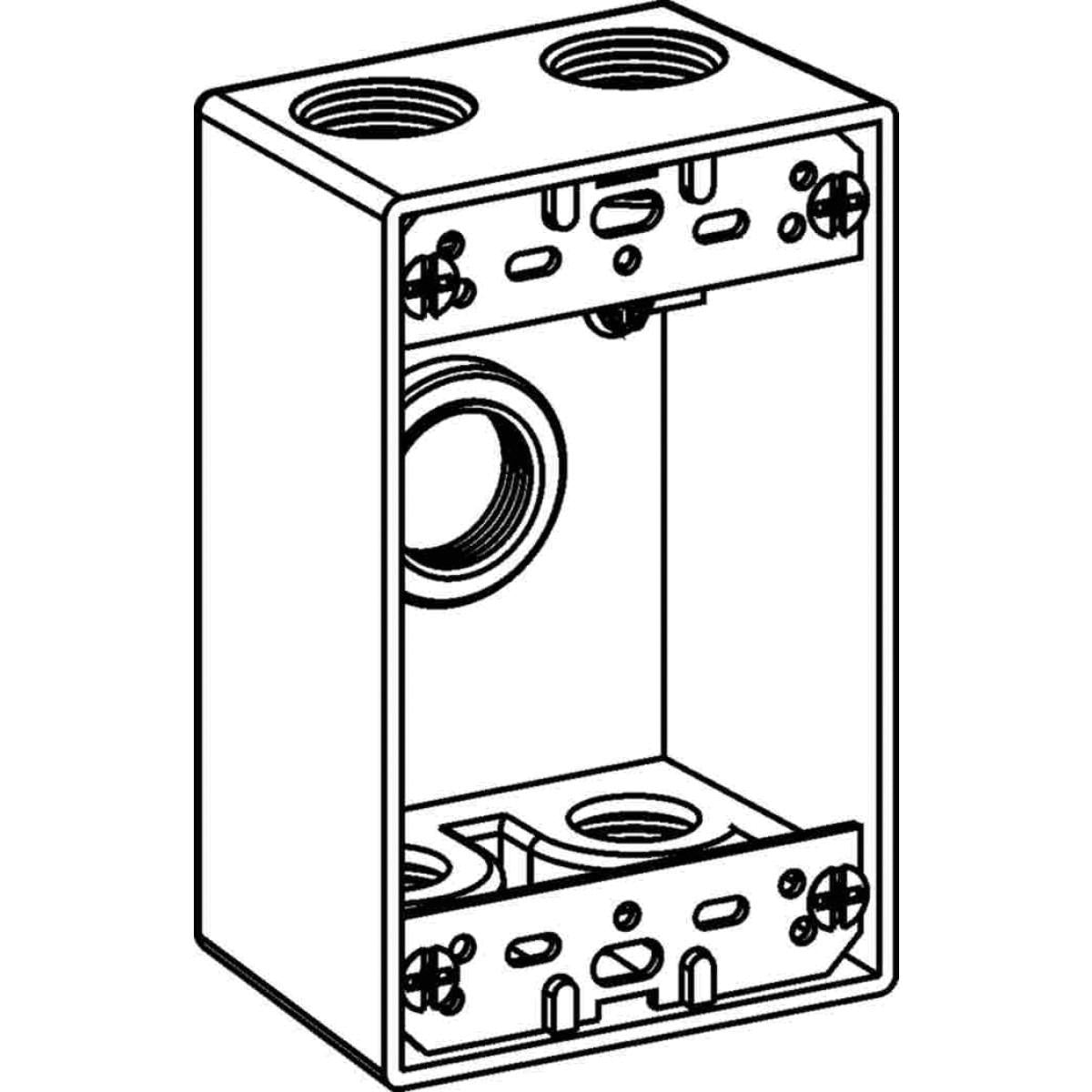

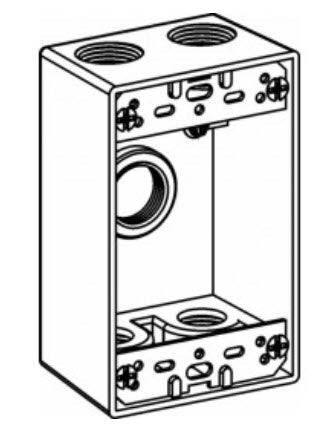

The Orbit Industries 1B75-5 is a 1-Gang weatherproof outlet box constructed from powder-coated die-cast copper-free aluminum. This rectangular box measures 2-3/4 inches x 4-1/2 inches x 2 inches, offering an 18.3 cubic inch capacity. It features five 3/4-inch hub holes and is designed for device mounting. With a NEMA 3R rating, it provides protection against environmental elements. The box is cULus listed and RoHS compliant, ensuring safety and environmental standards.

• Ground screw installed for secure electrical connections.
• Includes lugs and two closure plugs for proper installation.

Product Highlights

Weatherproof 1-gang outlet box with NEMA 3R rating, cULus listed and RoHS compliant.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 1B75-5

Technical Specifications

• Material: Copper-Free Die Cast Aluminum
• Certifications: cULus Certified, RoHS Compliant
• Shape: Rectangular
• Number of Hubs: 5
• Number of Gangs: 1
• NEMA Rating: NEMA 3R
• Color: Gray
• Cubic Capacity: 18.3 Cubic Inches
• Finish: Powder Coated
• Hub Size: 3/4 Inch
• Energy Star Compliant: No
