Orbit Industries 1B50-5 1-gang box 2 inches deep 5 outlet holes 1/2 inches size device mount

Product Description

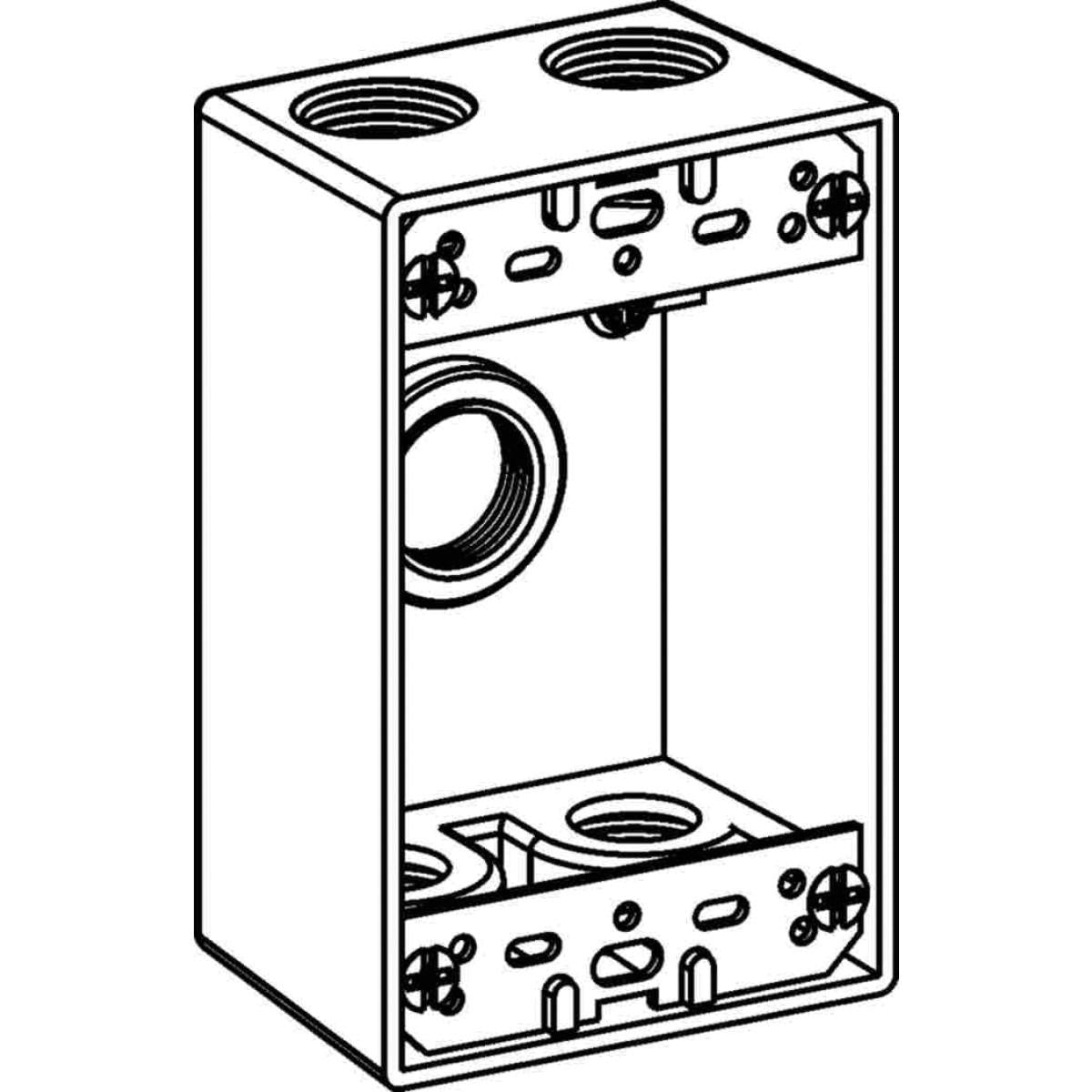

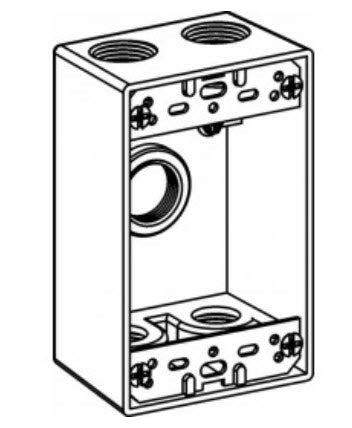

The ORBIT INDUSTRIES 1B50-5 is a 1-gang weatherproof outlet box constructed from powder-coated die-cast copper-free aluminum. This rectangular electrical box measures 2-3/4 inches x 4-1/2 inches x 2 inches, offering an 18.3 cubic inch capacity. It features five 1/2-inch hub size holes for conduit connections and is designed for device mounting. The box is NEMA 3R rated, cULus listed, and RoHS compliant, ensuring suitability for outdoor electrical installations.

• Ground screw installed for secure grounding.
• Constructed from die-cast copper-free aluminum with a premium powder coat finish.
• Includes lugs and closure plugs for proper installation.

Product Highlights

Durable 1-gang weatherproof outlet box with NEMA 3R rating and 1/2-inch hub size.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 1B50-5

Technical Specifications

• Material: Copper-Free Die Cast Aluminum
• Certifications: cULus Certified, RoHS Compliant, UL File E227970
• Shape: Rectangular
• Number of Hubs: 5
• Number of Gangs: 1
• NEMA Rating: NEMA 3R
• Cubic Capacity: 18.3 Cubic Inch
• Finish: Powder Coated
• Hub Size: 1/2 Inch
• Mounting Type: Device mount
• Category: Weatherproof
