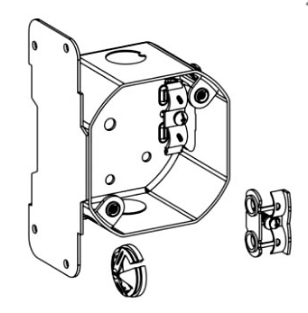

Orbit FSDB-FB Fan Support Deep Box 4 inches Di, 2-1/8 inches Deep, FB Bracket

Product Description

The Orbit FSDB-FB is a 2-1/8" deep fan support box. It is designed to support ceiling fans and light fixtures up to 70 lbs. The box features a FB bracket for flush mounting to flat side of stud or joist and includes a hardware pack.

• Octagonal
• Deep Box
• 70lbs Max Fan/Fixture Support

Product Highlights

The Orbit FSDB-FB fan support box is ideal for installing ceiling fans and light fixtures. It is easy to install and provides a secure and reliable mounting solution.

Product Information

Standard Information

• Brand: ORBIT
• Manufacturer Part Number: FSDB-FB
• Country of Origin: China

Technical Specifications

• Brand: Orbit
• MPN: FSDB-FB
• Box Shape: Octagonal
• Mounting Style: Deep Box
• Model: FSDB-FB
• Material: 16 GA Sheet Steel
• Clamp Type: BX/MC, NM
• Bracket: FB, 1/2"
• Knockouts: (2) -1/2", (2) - Loom
• Cu In: 21.5
• Category: Steel Outlet Boxes
• Full Technical Description: C Octagon Type; 16 Gauge Galvanized Sheet Steel Material; 2-1/8 Inch; UL 514A, UL (Canada and Us) Approval; 4 Inch Diameter; 21.5 Cu Inch Capacity; (2) 1/2 Inch Side, (2) Loom Pryout Side Knockout Size; 4 Knockout(S); RoHS Compliant; Includes NM Clamp For Non-Metallic Sheathed Cables With Ground
• Manufacturer: Orbit Industries, Inc.
• Manufacturer Brand: Orbit Industries, Inc./UMI
• Sub-Category: Octagon/Round Box - Steel
• UPC: 835243012820
• Part No: FSDB-FB
• Type: Fan Support Deep Box
