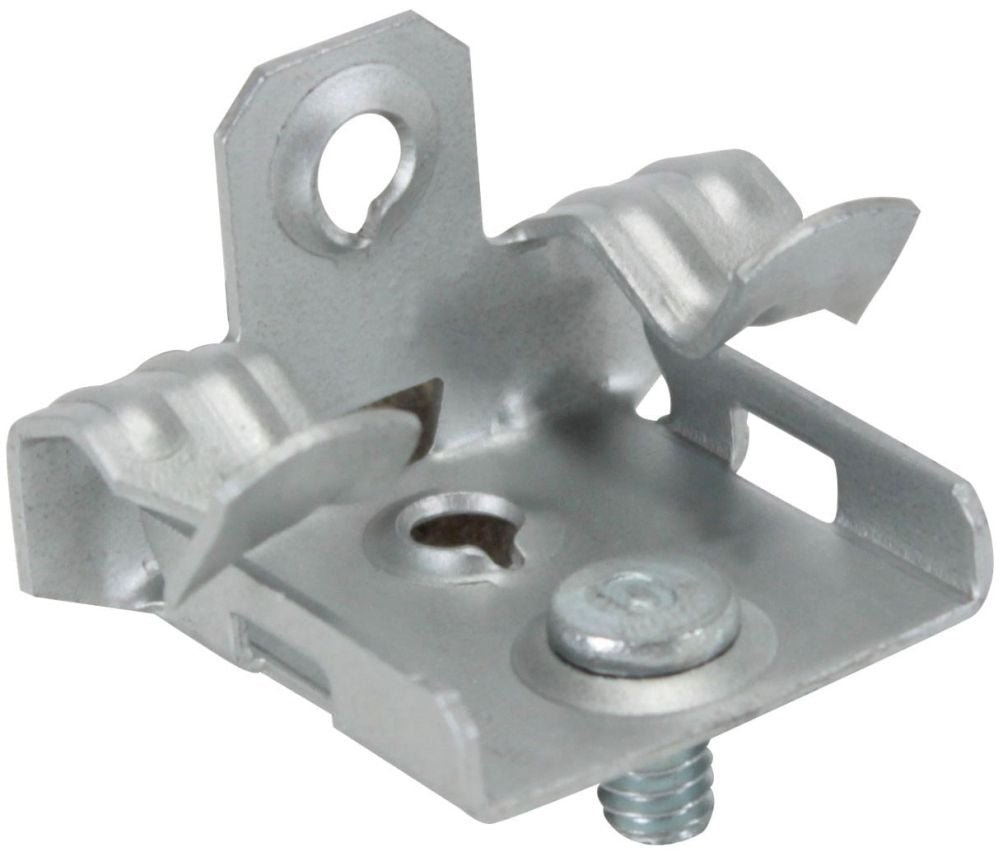

Orbit FM24S Hammer-On Flange Clip Bottom Mount With Stud 100 Pack

Product Description

The Orbit FM24S is a hammer-on flange clip with a captive threaded stud designed for bottom-mount installations. It fits flange thicknesses from 1/8" to 1/4" and accepts 1/4" rod with a 1/4"-20 thread; installation requires only a hammer. Made of spring steel and supplied in 100-piece packs, the clip has UL file E328572 and specified load capacities for vertical and horizontal rod attachments.

• Bottom-mount design with captive 1/4"-20 threaded stud for independent surface mounting
• Fits 1/8" to 1/4" flange thickness and accepts 1/4" rod; taps onto flanges using a hammer
• Spring steel construction; load capacities: vertical rod 100 lb, horizontal rod 25 lb, vertical box 75 lb; UL file E328572

Product Highlights

Bottom-mount hammer-on flange clip with captive stud; spring steel; fits 1/8"–1/4" flanges; accepts 1/4" rod; 100 per pack; UL file E328572

Product Information

Standard Information

• Brand: ORBIT
• Manufacturer Part Number: FM24S
• Country of Origin: United States
