Orbit FA-TBAR-UMAB Fire Alarm Switch Box 10 Pack

Product Description

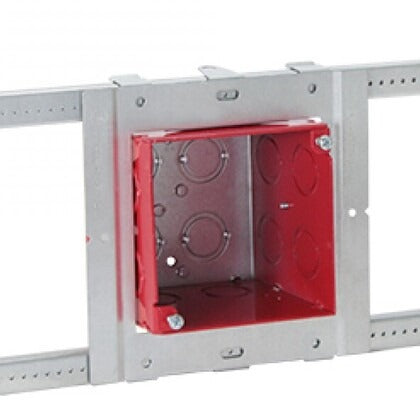

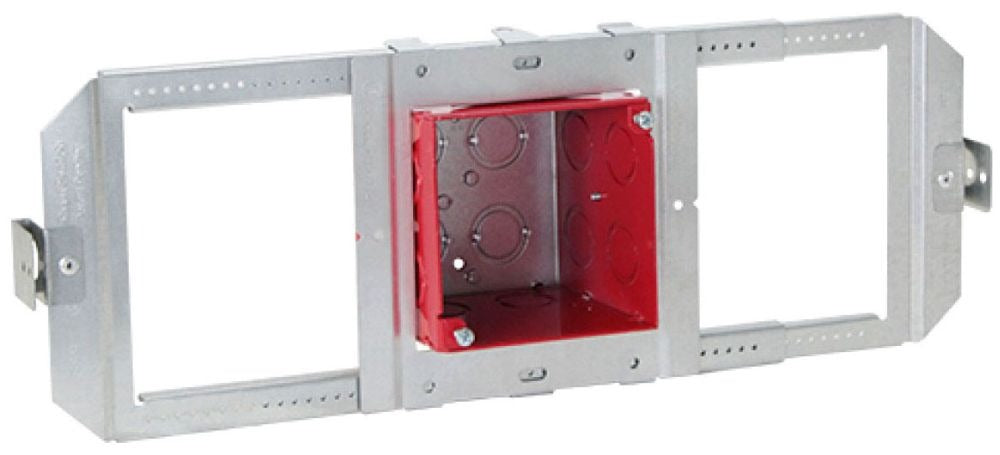

Orbit FA-TBAR-UMAB is a preassembled fire alarm switch box mounted on an adjustable SSB-TBAR bracket. The assembly features a 4 in square face with a 3.5 in deep box and 46.0 cu in capacity, suitable for oversize horn strobes and notification devices. The telescoping bracket adjusts from 15 in to 25 in and the FA-UMAB adapter offers 0 in to 1.5 in vertical adjustment for flush mounting. The unit is 16 GA sheet steel and is UL and RoHS listed.

• Telescoping bracket adjusts from 15 in to 25 in and includes riveted T-bar clips that snap into the grid channel
• 4 in square by 3.5 in deep box with 46.0 cu in capacity accommodates oversize horn strobes and standard device plates
• FA-UMAB adapter provides 0 in to 1.5 in vertical adjustment; two outside-facing screws lock box depth and designated holes allow branch line restraints

Product Highlights

Preassembled adjustable fire alarm box; 4 in square x 3.5 in deep; 15 in to 25 in telescoping bracket; 0 in to 1.5 in vertical adapter; 16 GA sheet steel; UL and RoHS certified

Product Information

Standard Information

• Brand: ORBIT
• Manufacturer Part Number: FA-TBAR-UMAB
