Orbit F16M24SM Conduit to Flange Clip Side Mount Snap Close 1 Inch EMT 1/8 Inch 1/4 Inch Flange

Product Description

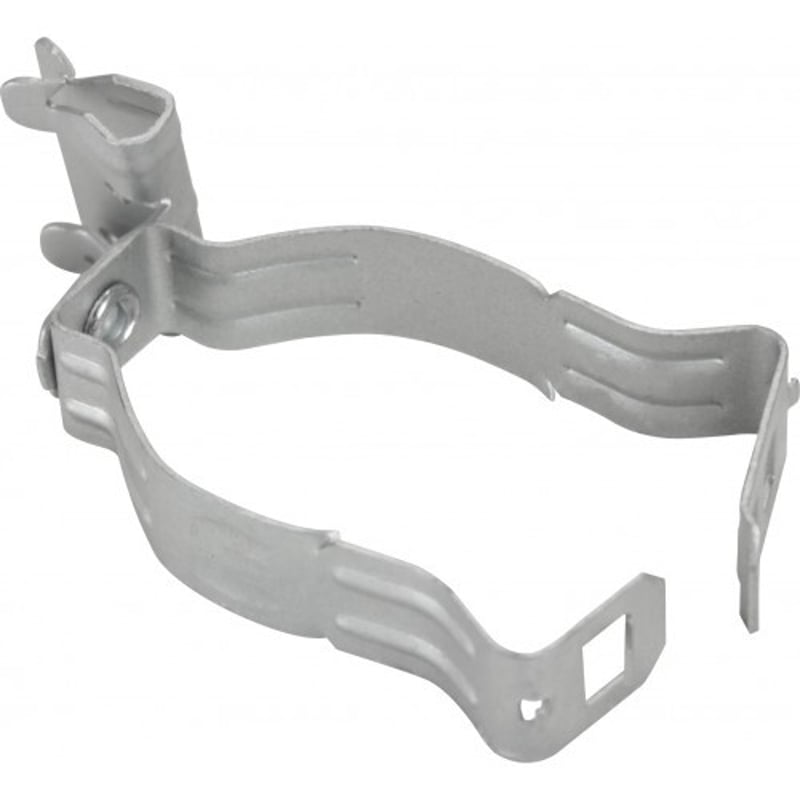

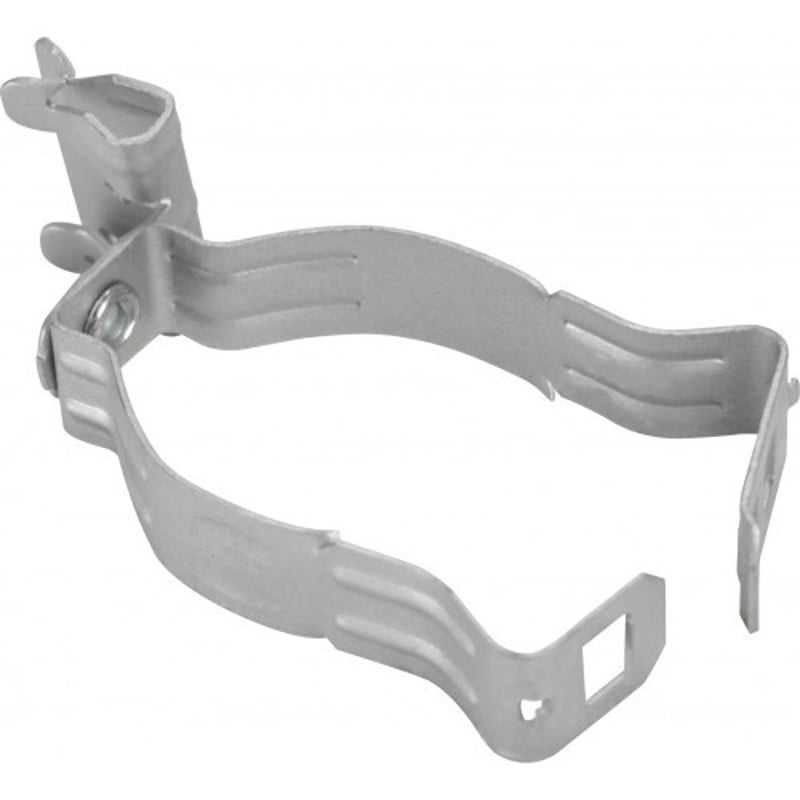

The Orbit F16M24SM Conduit to Flange Clip is a side mount, snap-close fastener designed for securing 1 inch EMT conduit. It attaches to flanges with a thickness ranging from 1/8 inch to 1/4 inch. Constructed from steel, this clip also functions as a conduit to beam/flange fastener, providing a secure connection for electrical installations. It is suitable for various conduit types.

• Side mount design with a snap-close mechanism for secure attachment.
• Compatible with 1 inch EMT conduit and 1/8 inch to 1/4 inch flange thicknesses.
• Constructed from steel, suitable for EMT, rigid, and aluminum conduit.

Product Highlights

Snap close clip can pivot through 360 degrees. Installation only requires a hammer. Static load capacity is 25 lb.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: F16M24SM

Technical Specifications

• Material: Steel
• Type: Conduit to Flange Clip
• Mount Type: Side Mount
• Conduit Size: 1 inch EMT
• Flange Thickness: 1/8 inch - 1/4 inch
• Closure Mechanism: Snap Close
• Sub-Category: Conduit To Rod Clamp
• Category: FASTENER
• Static Load: 25 lb
• UL File Number: E328572
