Orbit 4SB-MC-WB 4 inches Square Box 1-1/2 inches Deep

Product Description

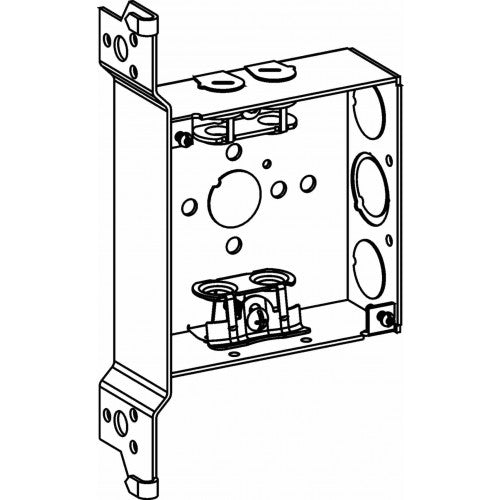

The ORBIT 4SB-MC-WB is a 4" square box with a 1-1/2" depth designed for electrical applications. It is suitable for lighting fixture, switch, and receptacle installations. The box features a metal clad cable clamp and is designed for wood stud mounting. It has a capacity of 21 Cu In.

• MC Clamp for Metal Clad Cables
• WB Bracket uses position spurs for mounting box on side of stud
• For Fixture/Luminaire Support of 50 lbs or less

Product Highlights

The ORBIT 4SB-MC-WB is ideal for electrical installations requiring a sturdy and reliable square box.

Product Information

Standard Information

• Brand: ORBIT
• Manufacturer Part Number: 4SB-MC-WB
• Country of Origin: China

Technical Specifications

• Category: Steel Outlet Boxes
• Material: 16 GA Sheet Steel
• Mfg. Process: Welded
• Clamp Type: BX/MC
• Bracket: WB, Flush
• KO Sides: (2) - 1/2", (1) - MKO, (4) - Loom
• KO Bottom: (1) - 1/2"
• Cu In: 21
• Full Technical Description: Ceiling/Wall Type; 16 Gauge Galvanized Welded Sheet Steel Material; 4 Inch; 4 Inch; 1-1/2 Inch; UL 514A, UL (Canada and Us) Approval; Wb Flush Bracket Mounting; 24 Standard Package; 21 Cu Inch Capacity; (1) 1/2 Inch Bottom, (2) 1/2 Inch Side, (1) 1/2 Inch and 3/4 Inch Side, (4) Loom Pryout Side Knockout Size; 8 Knockout(S); (1) Bottom, (7) Side Knockout Location; Metal Clad Cable Clamp Type; RoHS Compliant; Application Lighting Fixture, Switch and Receptacle
• Manufacturer: Orbit Industries, Inc.
• Manufacturer Brand: Orbit Industries, Inc./UMI
• Sub-Category: Square Box - Steel
• Country of Origin: China
