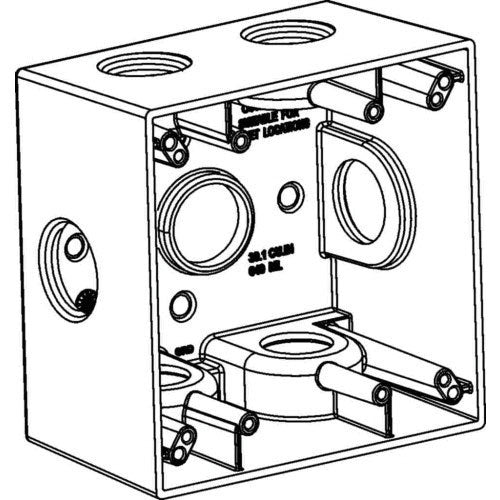

orbit 2DB100-7X 2-gang weatherproof outlet box 2-5/8 inches deep (7) 1 inches x-configuration hubs

Product Description

The Orbit 2DB100-7X is a 2-gang weatherproof outlet box, featuring a 2-5/8 inch depth and seven 1-inch X-configuration hubs. This box is constructed from die-cast copper-free aluminum, providing strength and corrosion resistance for outdoor electrical installations. It measures 4-9/16 inches x 4-1/2 inches x 2-5/8 inches and includes two closure plugs and lugs. The outlet box meets cULus and UL standards for safety and performance.

• Ground screw installation for secure grounding.
• Separate shrink wrap with barcode for easy identification.
• Dimensions of 4-9/16 inches x 4-1/2 inches x 2-5/8 inches.

Product Highlights

Durable copper-free aluminum construction with X-configuration hubs for outdoor electrical installations.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 2DB100-7X

Technical Specifications

• Type: 2-Gang Weatherproof Outlet Box
• Depth: 2-5/8 inches
• Hub Configuration: 7 x 1-inch X-Configuration
• Material: Copper-Free Die Cast Aluminum
• Standards: UL E227970 Listed, cULus Certified, RoHS Compliant
• Shape: Rectangular
• Number of Gangs: 2
• Color: Gray
• Cubic Capacity: 39.1 cubic inches
• Includes: 2 Closure Plugs, Lugs
• Style: Compact
• Finish Type: Painted
• Installation Type: Screw-In
• Category: Weatherproof
