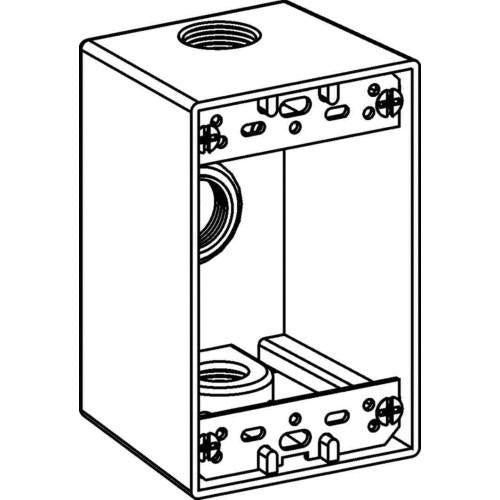

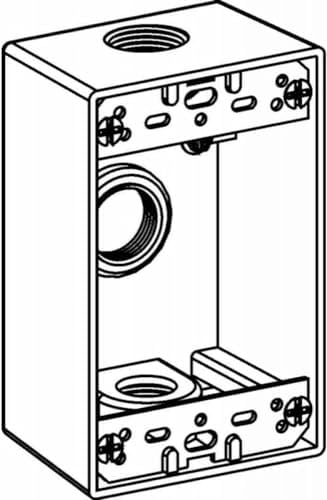

Orbit 1DB75-3 1-gang weatherproof box 2-5/8 inches deep (3) 3/4 inches hubs

Product Description

The Orbit 1DB75-3 is a 1-gang weatherproof outlet box designed for electrical installations. It features a 2-5/8 inch depth and is equipped with three 3/4 inch hubs. Constructed from powder-coated die-cast copper-free aluminum, this rectangular box has a capacity of 23.8 cubic inches. It is cULus listed and RoHS compliant, with a NEMA 3R rating for safety in outdoor or damp locations.

• 1-Gang design with weatherproof construction.
• Equipped with three 3/4 inch hubs.
• 2-5/8 inches deep for ample wiring space.

Product Highlights

Durable copper-free aluminum construction with NEMA 3R rating for outdoor use.

Product Information

Standard Information

• Brand: ORBIT INDUSTRIES
• Manufacturer Part Number: 1DB75-3

Technical Specifications

• Brand Name: ORBIT INDUSTRIES
• Manufacturer Part Number: 1DB75-3
• Number of Gangs: 1-Gang
• Type: Weatherproof Outlet Box
• Number of Hubs: 3
• Hub Size: 3/4 inch
• Color: Gray
• Material: Copper-Free Die Cast Aluminum
• Certifications: cULus Certified, RoHS Compliant
• Shape: Rectangular
• NEMA Rating: NEMA 3R
• Volume: 23.8 Cubic Inch
• Finish: Powder Coated
• UPC: 83524300576
• Manufacturer: Orbit Industries
• Energy Star Rated: No
• UNSPSC: 39121305
• Category: WEATHERPROOF
• UL File Number: E227970
• GTIN: 00835243005761
• Style: Compact
• Installation Type: Screw-In
