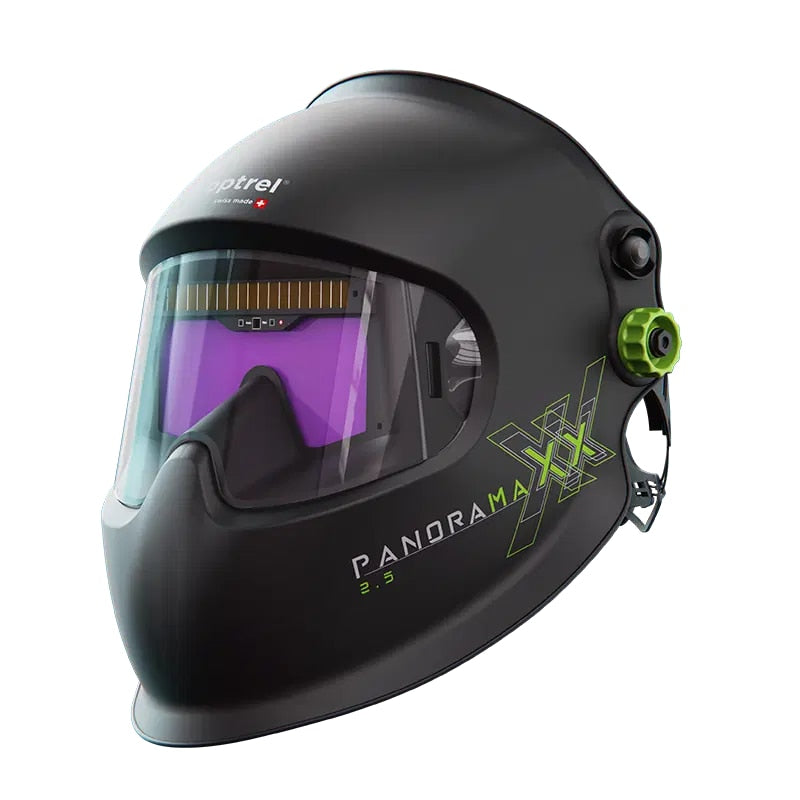

Optrel 1010.300 Panoramaxx L Welding Helmet

Product Description

The OPTREL 1010.300 Panoramaxx L is a passive laser and arc welding helmet built for high-protection applications where optical clarity and stable fit are non-negotiable. It features a panoramic field of view that is 6 times wider than a standard welding lens, giving welders a significantly broader view of the work area without repositioning. The IsoFit headgear system provides a secure, balanced fit and is rated for heat resistance up to 220 degrees C. At 1.3 pounds, the helmet is light enough for extended wear during production welding shifts. Protection level 2 optics and passive filter design make it suitable for laser welding in the 1000-1100 nm wavelength range.

The Panoramaxx L is designed for laser welding and arc welding environments in industrial and manufacturing settings. It is particularly well-suited for operators working with near-infrared laser sources in the 1000-1100 nm range, such as fiber and Nd:YAG laser systems commonly found in metal fabrication shops and precision manufacturing facilities. Licensed welding professionals and laser safety officers specify this helmet where consistent optical protection and panoramic visibility are both required. It is sold as a single unit.

Key Features

• Passive filter design provides constant optical protection without battery dependency
• Panoramic field of view is 6 times wider than standard welding helmet lenses
• IsoFit headgear delivers secure, balanced fit for extended wear
• Heat resistant up to 220 degrees C for hot welding environments
• Rated for laser welding in the 1000-1100 nm wavelength range
• Complies with CE and ANSI Z87.1 safety standards

Compatibility

Designed for laser and arc welding applications requiring passive optical protection in the 1000-1100 nm range, including fiber and Nd:YAG laser welding operations.

Installation Notes

Fitting and adjustment should be performed by the welder before entering the work area. Ensure the IsoFit headgear is adjusted for a snug, stable fit with no gaps along the face seal. Inspect the passive filter lens for scratches, cracks, or contamination before each use, and replace the lens if any damage is found. This helmet should be used only in environments consistent with its rated protection level and wavelength coverage.

Technical Specifications

• Protection Level: 2
• Laser Wavelength Range: 1000-1100 nm
• Field of View: 6x wider panoramic
• Heat Resistance: 220 degrees C
• Weight: 1.3 pounds
• Filter Type: Passive
• Color: Black
• Certifications: CE, ANSI Z87.1
• Sold As: Each

Standard Information

• Brand: OPTREL
• Manufacturer Part Number: 1010.300
