Optrel 1006.502 Auto-darkening Welding Helmet Shade 5-13

Product Description

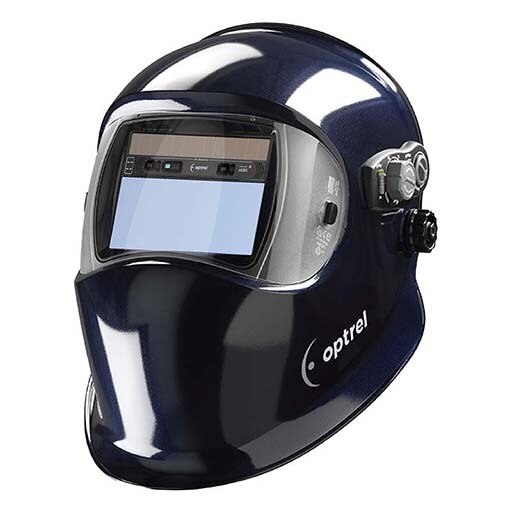

The OPTREL 1006.502 is the e684 auto-darkening welding helmet, designed for professional welders who demand accurate arc visibility and reliable shade control. The auto-darkening filter (ADF) carries a 1/1/1/1 optical rating across optical class, scattered light, homogeneity, and angular dependence — the highest possible score in each category. The AUTOPILOT system continuously detects arc brightness and adjusts the shade automatically from 5 to 13 without operator input. True Color technology uses a specialized UV and IR filter to deliver realistic color perception in both light and dark states, giving welders a clearer, more natural view of the weld puddle and workpiece. Licensed HVAC, structural, and industrial welders install this helmet for MIG, TIG, stick, and flame applications.

The e684 suits a wide range of welding environments including shop fabrication, overhead work, and outdoor applications. The shell geometry is engineered to shed weld spatter and slag during overhead welding. External controls allow the operator to switch between weld mode and grind mode at shade 4 without removing the helmet. Infinite shade adjustment from 8 to 12, delay control, and sensitivity adjustment are all accessible via external knobs. The patented Sensor Slide reduces the ADF detection angle from 120 degrees to 60 degrees to prevent false triggering from adjacent welding operations. Hard hat compatibility is available using the Optrel hard hat adapter.

Key Features

• AUTOPILOT auto-darkening system adjusts shade 5 to 13 based on detected arc brightness with no manual input required
• 1/1/1/1 optical lens rating for optical class, scattered light, homogeneity, and angular dependence
• True Color UV and IR filter provides realistic color perception in both light and dark states
• Twilight feature gradually lightens the lens when transitioning from dark to light state to reduce eye fatigue
• Patented Sensor Slide adjusts detection angle between 120 degrees and 60 degrees to avoid false triggers from nearby welding
• External grind mode switch toggles to shade 4 grind mode without removing the helmet
• Patented Excenter centering system balances the helmet in the open position to reduce neck fatigue
• Comfort headband adjusts for size, forward position, and top position

Compatibility

Designed as an OEM auto-darkening welding helmet for professional welding applications. Compatible with the Optrel hard hat adapter for jobsite head protection integration.

Installation Notes

Fitting and adjustment should be performed by the welder before beginning work. Power down or disconnect any associated welding equipment before inspecting the ADF lens or replacing the battery. Verify that the shade setting and sensitivity are appropriate for the specific welding process and ambient light conditions before striking an arc. Always confirm the helmet meets applicable ANSI Z87.1 eye and face protection standards for the intended application.

Technical Specifications

• Shade Range: 5 to 13 (auto-darkening), shade 4 (grind mode)
• Optical Lens Rating: 1/1/1/1 (optical class, scattered light, homogeneity, angular dependence)
• Lens Dimensions: 4.25 inches L x 2 inches W
• Sensor Detection Angle: 60 to 120 degrees (adjustable via Sensor Slide)
• Weight: 1.106 pounds
• Unit of Measure: Each

Standard Information

• Brand: OPTREL
• Manufacturer Part Number: 1006.502
