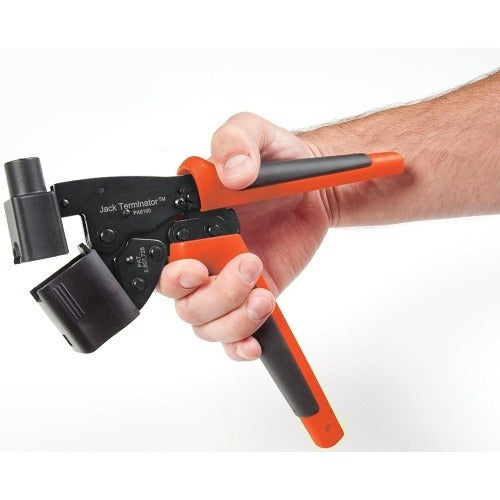

Optical Cable Corp. PA8109 Jack Terminator Tool

Product Description

The OPTICAL CABLE CORP. PA8109 is a jack terminator tool with pad head set designed for structured wiring and low-voltage cabling installations. This tool is used to terminate modular jacks and patch panel ports, providing consistent, repeatable terminations in data, voice, and network cabling work. It is suited for use by low-voltage technicians, data cabling contractors, and network infrastructure installers who require a reliable hand tool for punch-down and termination tasks. The included pad head set expands compatibility with various jack and patch panel formats encountered in the field.

The PA8109 is intended for use in commercial and residential structured cabling applications, including horizontal runs to wall plates, patch panel terminations in telecommunications rooms, and modular jack installations at work area outlets. It is a single-unit tool sold individually and fits into standard low-voltage cabling workflows where hand termination tools are required.

Key Features

• Designed for jack and patch panel termination in structured cabling systems
• Includes pad head set for compatibility with multiple jack formats
• Sold as a single unit for individual technician use
• Suited for low-voltage data, voice, and network cabling applications

Compatibility

Designed for use in structured cabling jack termination applications. Consult OPTICAL CABLE CORP. documentation for specific jack and patch panel format compatibility.

Installation Notes

Installation should be performed by a qualified low-voltage cabling technician familiar with structured cabling standards such as TIA-568. Ensure the circuit or device being terminated is de-energized before beginning work. Follow the jack manufacturer's wiring diagram and termination sequence when using this tool. Inspect the pad heads before use and replace any worn components to ensure consistent termination quality.
