Optex RCTD-20U Rctd-20u

Product Description

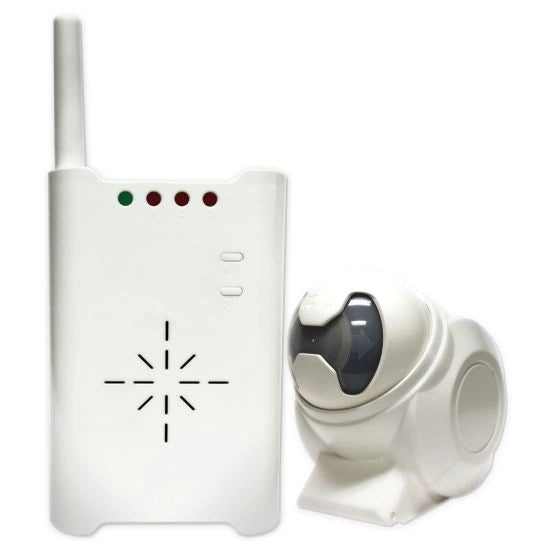

The OPTEX RCTD-20U, also known as Wireless 2000, is a wireless annunciator system designed to alert users to motion detection. It features an outdoor-rated PIR detector and an RF receiver that supports up to 9 transmitters. The RF receiver includes a Form C relay for activating electronic equipment. Ideal for both home and business use, indoors or outdoors, providing perimeter awareness and wireless remote control.

• Accepts 9 transmitters, identifies each group of 3 with a different chime tone
• Form C relay for activating other devices with adjustable output duration
• 2000ft. transmission range (line of sight)

Product Highlights

Wireless annunciator system with PIR detection, RF receiver, and Form C relay. Supports up to 9 transmitters and offers a 2000ft transmission range.

Product Information

Standard Information

• Brand: OPTEX CO
• Manufacturer Part Number: RCTD-20U
• Country of Origin: MY

Technical Specifications

• Manufacturer: Optex, Inc
• Manufacturer Part Number: RCTD-20U
• Product Line: Wireless 2000
• Product Model: RCTD-20U
• Product Type: Annunciator System
• Connectivity Technology: Wireless
• Operating Temperature (T-T): 15-120°F
• Installation Type: Hybrid
• Indoor/Outdoor: Outdoor
• Transmitters Supported: Up to 9 transmitters
• Power Supply: 9VDC adaptor (included)
• Installation Options: Wall mount or table mount
• Relay Type: Form C relay (50V AC 1A max. or 24V DC 1A max.)
• Power Backup: 9V lithium or alkaline battery
• Transmission Range: 2000ft. (line of sight)
• Detection Patterns: 17ft. fan or 50ft. beam
• Weather Resistance: IP54 rating
