Product Description

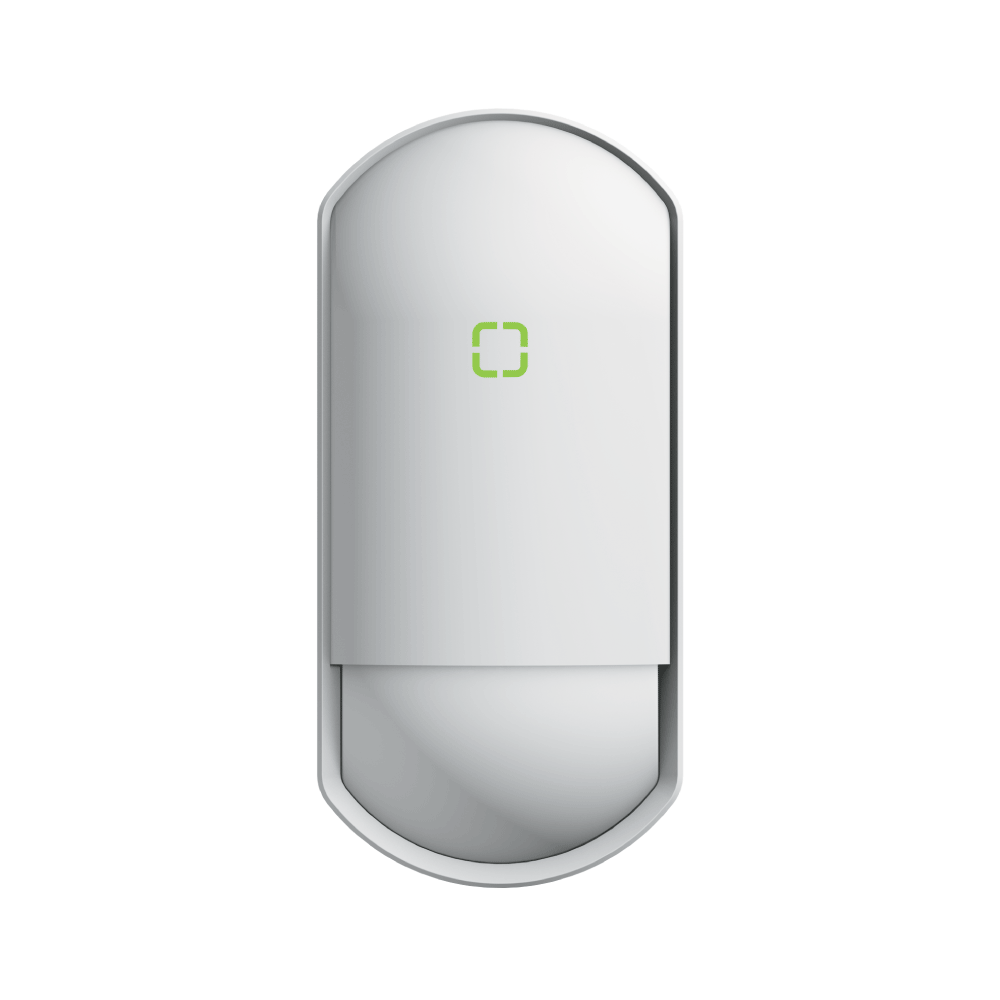

The OPTEX CO FLX-S-DT Flipx Indoor Pir Series features a unique 180° rotatable lens for customized detection. This indoor dual-tech PIR and Microwave detector is equipped with an innovative pyroelectric element. The detection pattern can be customized from 85° wide to 5° by flipping the lens. Ideal for residential to high-end commercial sites.

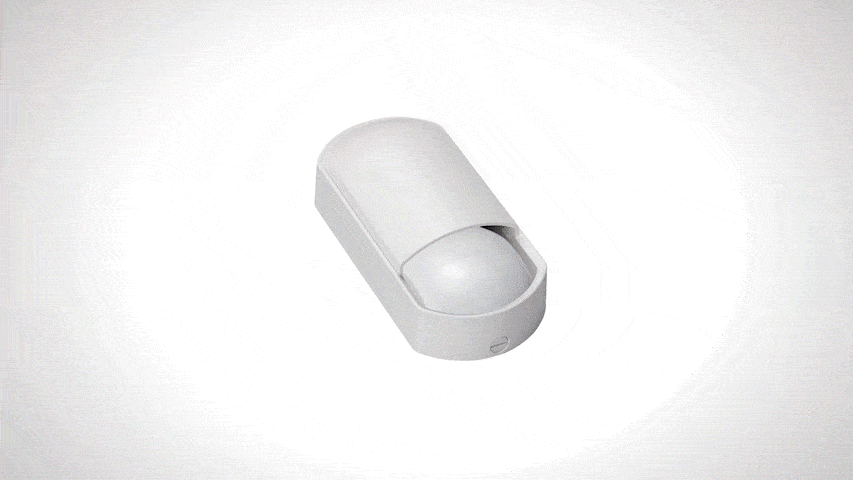

- Unique 180° rotatable lens for easy configuration of wide or narrow detection.

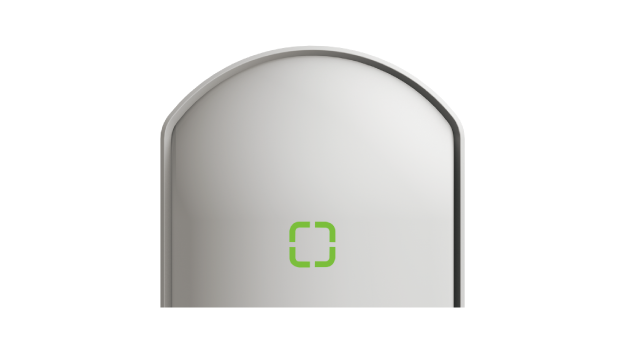

- Prominent LED light for easy viewing from a distance.

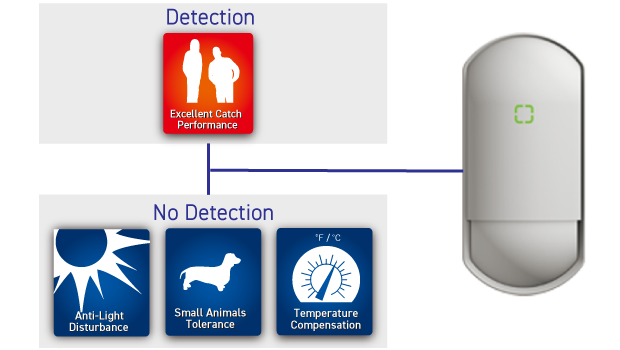

- Animal immunity feature spots temperature changes from small animals and pets.
Product Highlights
Indoor PIR detector with rotatable lens for customized detection in residential and commercial settings. Features pet tolerance and LED indicator.
Product Information
Standard Information
-
Brand: OPTEX CO
-
Manufacturer Part Number: FLX-S-DT
-
Country of Origin: CN
Technical Specifications
-
Technology: Dual-tech PIR & Microwave
-
Applications: Residential & light commercial
-
ADI Part Number: OP-FLXSDT
-
Brand Name: Optex
-
Manufacturer Part Number: FLX-S-DT
-
Product Line: FlipX
-
Product Model: FLX-S-DT
-
Product Series: Standard
-
Connectivity Technology: Wired
-
Installation Type: Residential
-
Mounting height: 2.0 to 3.0 m (6'7" to 9'8”)
-
Detection method: Passive infrared & Microwave
-
PIR coverage: Wide: 12 m (40 ft.) 85°/ Narrow: 18 m (60 ft.) 5°
(No MW detection at “Narrow” setting)
-
Alarm period: 2.0 ± 0.5 s
-
Warm up period: Approx. 60 s (LED blinks)
-
LED indicator: Green: [1] Warm-up [2] Alarm
-
Power input: 9.5 to 16 VDC
-
Current draw: 11 mA (normal)
14 mA (max.) at 12 VDC
-

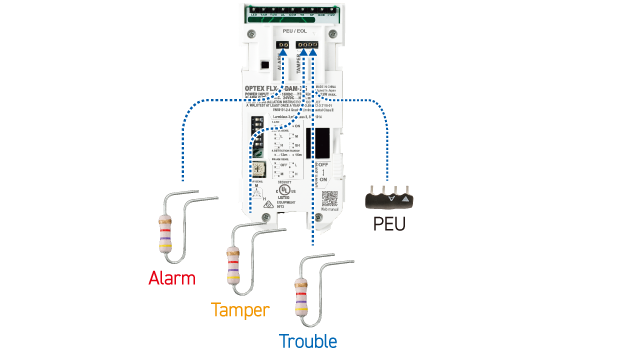

Alarm output: N.C. 24 V DC 0.1 A max. (Resistive load)
-
Tamper output: N.C. 24 V DC 0.1 A max. (Resistive load) (Open when the cover is removed)
-
Operating temperature: -20℃ to +50℃(-4°F to +122°F)
-
Temperature compensation: Digital (SMDA)
-
Environmental humidity: 95% RH max.
-
Mounting: Wall, Corner (Indoor)
(with Bracket : Wall, Corner, Ceiling)
