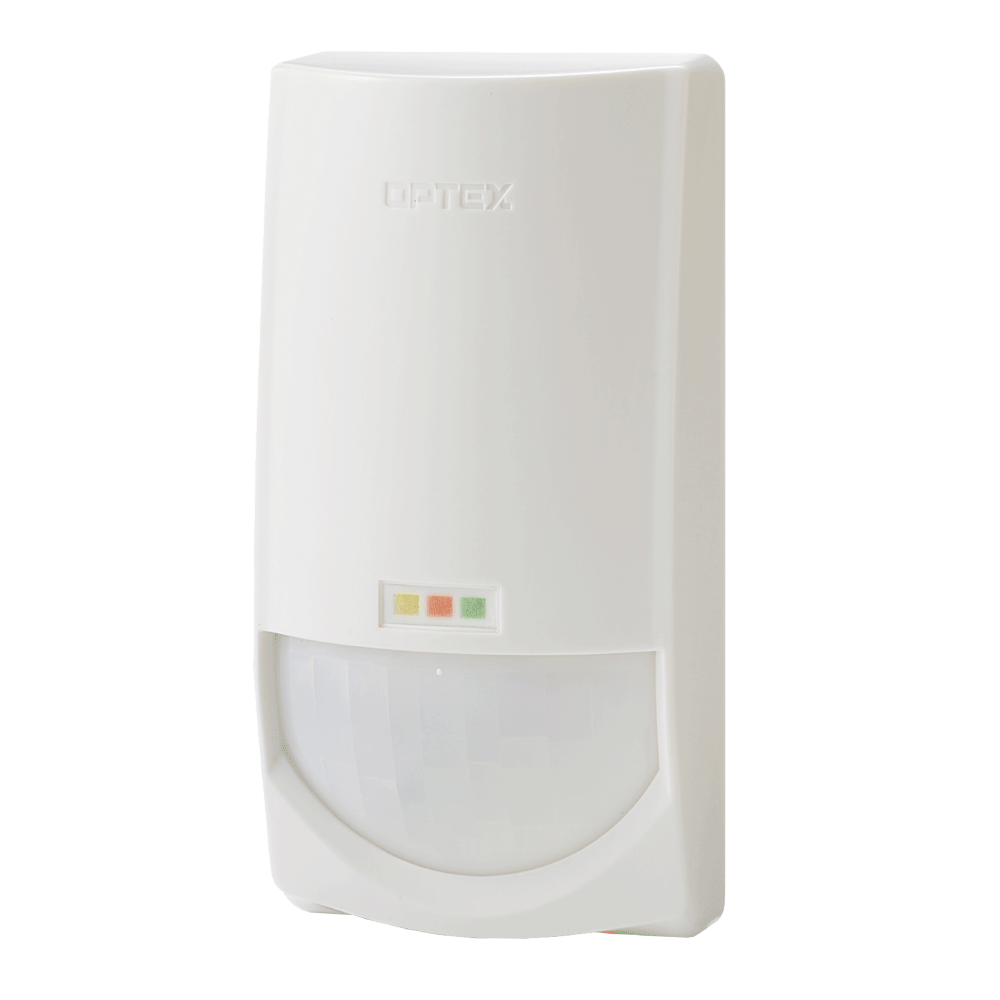

Optex Co CDX-DAM Indoor Dual Tech Sensor 50 feet x 50 feet

Product Description

The OPTEX CO CDX-DAM is an indoor dual tech sensor with a 50' x 50' , 85 degree detection area. It features a dense optical configuration with 82 individual detection zones. Digital QUAD zone logic requires 4 or more zones to be crossed to generate an alarm. It also features Double Conductive Shielding to block visible light disturbances and RFI.

• Double-conductive Shielding
• Digital AIR Anti-Masking
• Sharply-directed MW Technology

Product Highlights

Indoor dual tech sensor with digital anti-masking and sharply-directed microwave technology for reliable detection.

Product Information

Standard Information

• Brand: OPTEX CO
• Manufacturer Part Number: CDX-DAM

Technical Specifications

• Detection method: Passive Infrared
• Detection Coverage: 15 m x 15 m
• Coverage: 85° wide (82 zones)
• Power input: 9 to 18 VDC
• Current draw: 19 mA (normal) / 26 mA (max.) at 12 VDC
• Alarm output (R): N.C. 28 VDC 0.2 A max.
• Trouble output: N.C. 28 VDC 0.2 A max.
• Operation temperature: -10 to +50°C
• Relative humidity: 95% max.
• Installation Method (indoor/outdoor): Indoor
• Mounting height: 1.8 to 2.4 m
