Optex Co AP-360B(C) Ap-360B(C)

Product Description

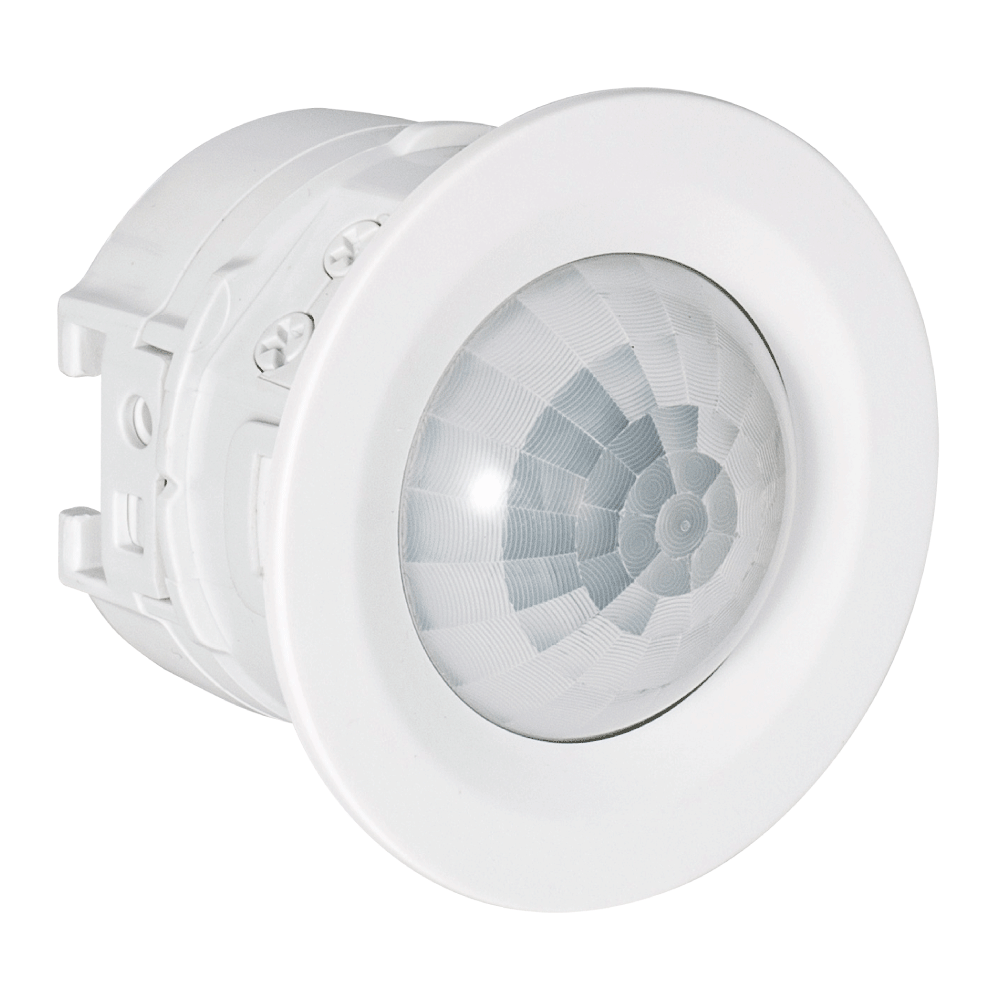

The OPTEX CO AP-360B(C) is a series of recessed mount indoor PIR detectors. The AP-360B(C) provides a 360° volumetric detection area. Its compact and discreet design allows for low-profile installation for various application needs. Features include selectable high, medium, and low detection sensitivity and a tamper function. It can be installed with recessed mount on the walls or ceiling.

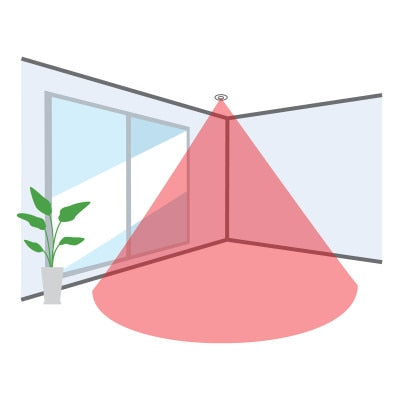

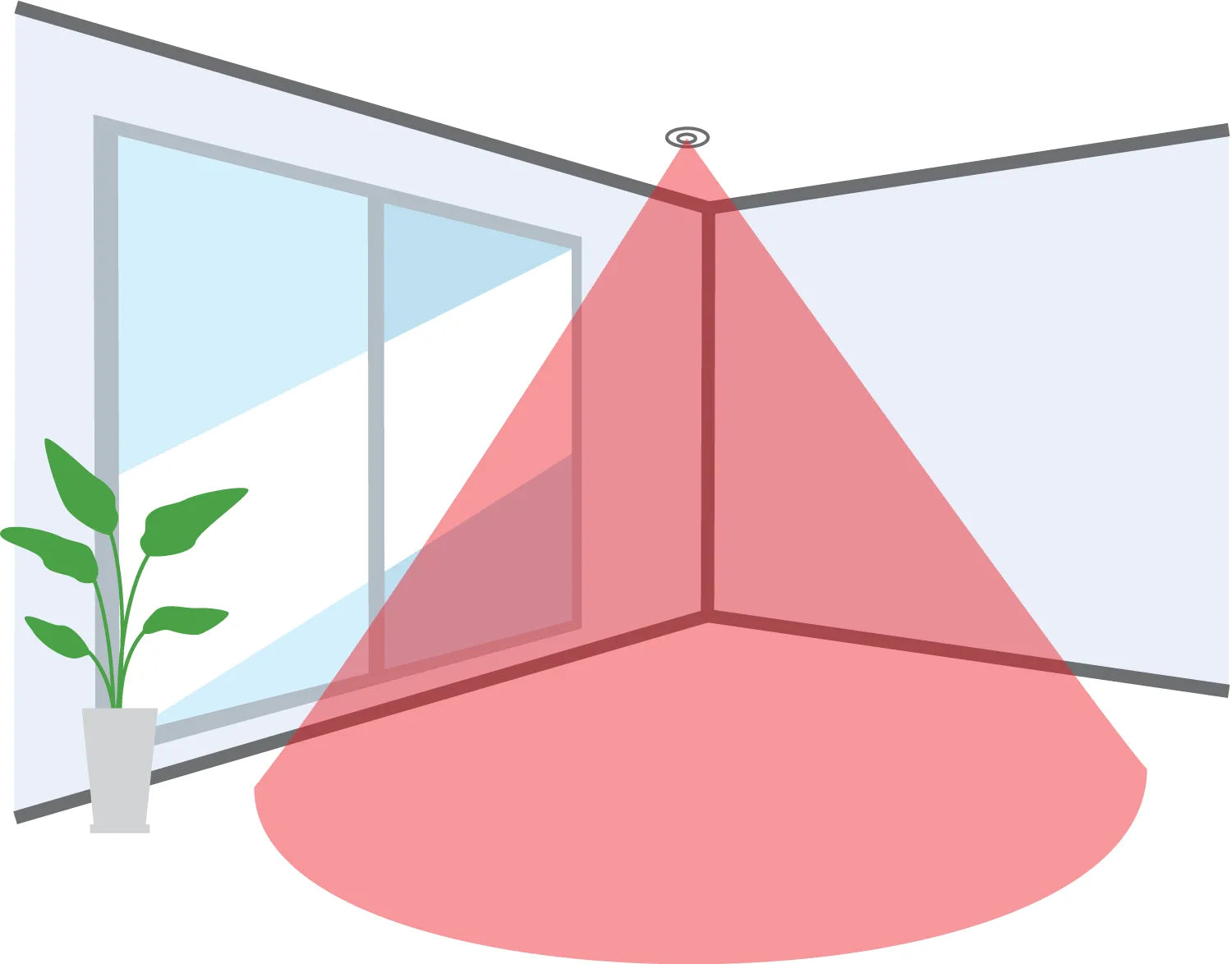

• 360° volumetric detection area
• 20' detection area at mounting height 14'9"

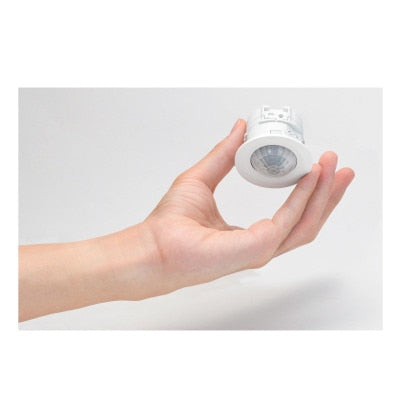

• Compact and discreet design

Product Highlights

Indoor PIR detector with recessed mount and 360° volumetric detection. Features selectable sensitivity and tamper function.

Product Information

Standard Information

• Brand: OPTEX CO
• Manufacturer Part Number: AP-360B(C)
• Country of Origin: China

Technical Specifications

• Detection Area: 360° volumetric detection area
• Mount: Recessed mount
• Application: Indoor
• Other: Tamper function
• Brand Name: Optex
• Manufacturer: Optex, Inc
• Manufacturer Part Number: AP-360B(C)
• Product Line: AP
• Product Model: AP-360B(C)
• Product Name: AP-360B(C) Motion Sensor
• Product Series: AP-360
• Product Type: Motion Sensor
• Connectivity Technology: Wired
• Maximum Motion Sensing Distance: 20'
• Passive Infrared Sensor (PIR): Yes
• Form Factor: Ceiling Mount
• Input Voltage: 9.5V DC
• Power Source: DC Power
• Diameter: 2"
• Installation Type: Hybrid
• Mount Type: Ceiling Mount
• Detection Method: Passive infrared
• Mounting Height: 8'2" to 14'9" ( 2.5 to 4.5 m)
• Sensitivity: 2.0°C at 0.6 m/s (3.6°F at 2'/s)
• Detection Speed: 0.3 to 3.0 m/s (1'/s to 9'10"/s)
• Alarm Cycle: 2 s to 120 s (variable)
• Alarm Output: AP-360B(C): N.O./N.C., 28 V DC 200 mA max. AP-360BR(C): N.O./N.C., 3.6 V DC 10 mA max.
• Illuminance: AP-360B(C): 20 to 320 lux (variable/not detected)
• Tamper switch: N.C. 28 V DC 100 mA max The contact opens once the casing is detached
• Warm-up Time: Approx. 60 s
• Power Supply: AP-360B(C): 9.5 to 16 V DC AP-360BR(C): 2.7 to 3.6 V DC (CR123A battery)
• Current: AP-360B(C): 12 V DC Stand-by: 11mA, Max.: 13 mA AP-360BR(C) 3 V DC Stand-by: 10цA, Max.: 4 mA
• PIR Sensitivity: H/ M/ L
• Operation Humidity: < 95%
