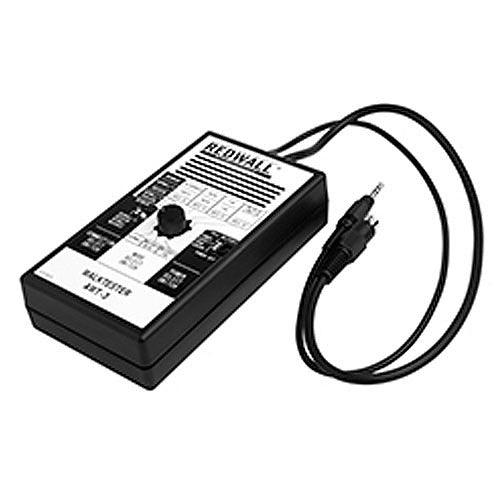

Optex AWT-3 Walk Test Tool Redwall Sip Series

Product Description

The OPTEX AWT-3 is a walk test accessory designed for use with Redwall SIP series passive infrared detectors. It allows technicians to verify detector coverage patterns and confirm proper zone activation during commissioning or routine inspection without requiring a second person at the panel. The tool streamlines the walk test process by providing a clear go/no-go indication as the installer moves through the detection zone, reducing setup time on new installations and post-service verification calls.

The AWT-3 is intended for use during the installation and commissioning of Redwall SIP series PIR detectors in commercial and industrial security applications. It is typically used by security system technicians and low-voltage alarm installers who need to confirm detector alignment and sensitivity coverage in single-person field conditions.

Key Features

• Designed specifically for walk testing Redwall SIP series PIR detectors
• Enables single-technician commissioning and coverage verification
• Confirms detection zone activation without panel access during testing
• Compact handheld form factor suited for field carry

Compatibility

Designed for use with OPTEX Redwall SIP series passive infrared detectors. Confirm detector model compatibility with OPTEX documentation before use.

Installation Notes

The AWT-3 is used during commissioning and does not require permanent installation. Low-voltage alarm installers should follow the detector manufacturer's walk test procedure outlined in the Redwall SIP series installation manual. Ensure the detector is fully powered and in walk test mode before beginning coverage verification. Refer to local codes and NFPA 731 guidelines where applicable for intrusion detection system commissioning requirements.
