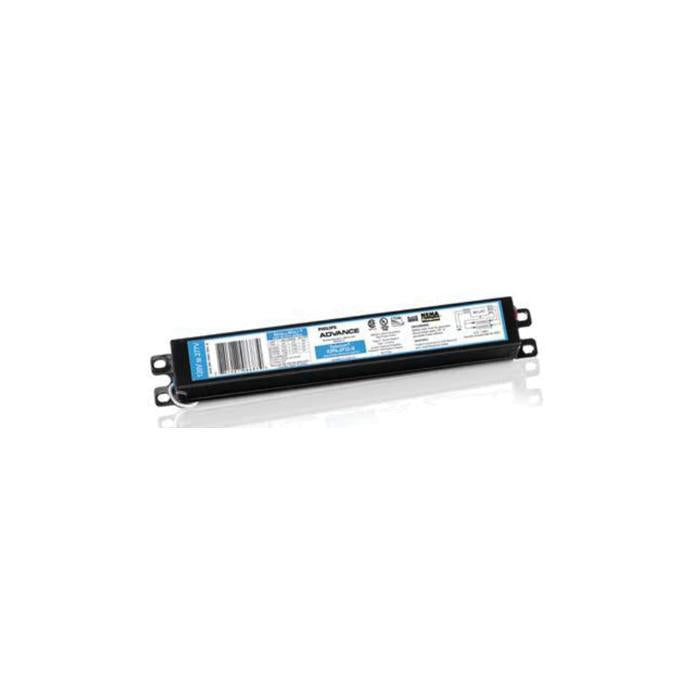

Optanium IOP-3P32-SC-35I Electronic High Frequency Small Can Housing Fluorescent Ballast

Product Description

The Optanium IOP-3P32-SC-35I is an electronic high-frequency small can housing fluorescent ballast designed to operate F32 T8 linear lamps. It supports a lamp wattage of thirty-two watts with a voltage rating ranging from one hundred twenty to two hundred seventy-seven VAC.

• High efficiency electronic ballast
• Instant start technology for quick lamp ignition
• Suitable for use in cold environments down to minus twenty degrees Fahrenheit

Product Highlights

This ballast is ideal for T5 and T8 fixtures, promoting energy efficiency compliance with local energy standards.

Product Information

Standard Information

• Brand: Optanium
• Manufacturer: Signify

Technical Specifications

• Amperage Rating: 0.7 to 0.3 A
• Dimensions: 9.5 inches L x 1.3 inches W x 1 inch H
• Dimmable: No
• Frequency Rating: 50/60 Hz
• Material: Metal
• Minimum Starting Temperature: -20 degrees F
• Number of Lamps: 3
• Power Factor: >0.9
• Temperature Range: 70 degrees C
• Total Harmonic Distortion: 10%
• Type: Electronic High Frequency Small Can Housing
• Wattage: 82/80 W
• Lamp Type: F32 T8 Linear
• Lamp Wattage: 32 W
• Voltage Rating: 120 to 277 VAC
• Start Type: Instant
• Ballast Factor: 0.87
