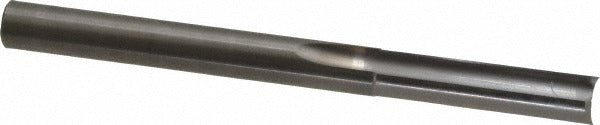

Onsrud 56-655 Square End Double Edge Router Bit Solid Carbide

Product Description

The ONSRUD 56-655 is a 2-flute, square end, double edge solid carbide router bit designed for high-speed CNC and handheld routing operations on a wide range of thermoplastic materials. With a 0.5-inch cutter diameter, a 2.125-inch length of cut, and a 6-inch overall length, it delivers clean, square-bottom profiles in a single pass. The straight flute geometry and right-hand cutting direction suit standard spindle rotation without modification. Solid carbide construction provides the rigidity and edge retention needed when running abrasive engineering plastics at production feed rates.

This bit is built for production and fabrication shops routing thermoplastics including ABS, acrylic, HDPE, polycarbonate, polypropylene, polystyrene, UHMW, acetal, HIPS, polyethylene, polypropylene, and PVC. It fits routing fixtures, CNC routers, and router tables where a 0.5-inch shank collet is in use. The double edge style extends usable tool life in continuous-run applications. It is not piloted, making it appropriate for freehand profiling, template routing, and full-depth slotting where a bearing guide is not required.

Key Features

• Solid carbide construction for superior edge retention on hard thermoplastics
• 2-flute straight flute geometry produces clean sidewalls and square bottom profiles
• Double edge design extends tool life in high-cycle production routing
• Right-hand cut matches standard CNC and handheld router spindle rotation
• 0.5-inch shank fits standard collets without a reducer
• Not piloted - suitable for template, freehand, and slotting applications

Compatibility

Designed for use on ABS, acetal, acrylic, HDPE, HIPS, polyethylene terephthalate, PVC, polycarbonate, polyethylene, polypropylene, polystyrene, and UHMW. Part of the ONSRUD 56-600 series of thermoplastic routing tools. Requires a router or CNC spindle with a 0.5-inch collet.

Installation Notes

Installation and tool changes should be performed by a qualified machinist or CNC operator with the spindle fully powered down and locked out. Seat the shank fully into the collet and torque to the router or spindle manufacturer's specification. Verify feed rate and spindle speed settings are appropriate for the workpiece material before cutting. Eye protection and dust collection are standard requirements when routing thermoplastics.
