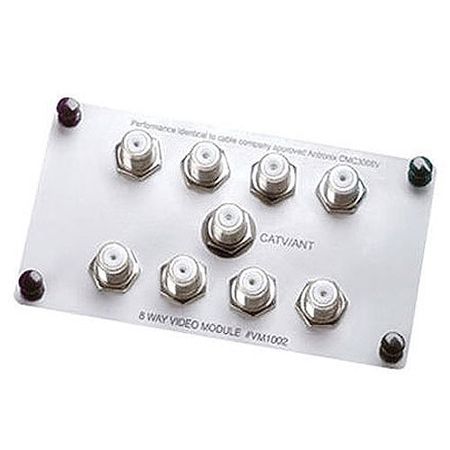

On Q Solutions Vm1002 1x8 Enhanced Passive Video Splitter-Combiner

Product Description

The ON Q SOLUTIONS VM1002 1x8 Enhanced Passive Video Splitter-Combiner is a high-performance splitter designed for digital cable, On Demand, Pay-per-View and high-speed cable Internet. It handles up to eight outputs and one input, utilizing standard F type connectors. The splitter features a 1 GHz Bandwidth and DC passing between all ports.

• Strong 15 dB RF video amplification improves signal throughout the home system
• Bracket included
• Distributes cable or broadcast TV signal to eight locations

Product Highlights

Splits a single video signal into 8 or combines multiple video signals into one output. Installs in an On-Q structured wiring enclosure with included mounting bracket.

Product Information

Standard Information

• Brand: ON Q SOLUTIONS
• Manufacturer Part Number: VM1002
• Country of Origin: China

Technical Specifications

• Product Line: On-Q
• Country Of Origin: China
• UPC Number: 080442802162
• Product Depth US: 1.85 in
• Product Length US: 6.42 in
• Product Width US: 3.6 in
• RoHS Compliant: Yes
• Insertion Loss: 11.1 dB
• Temperature Rating: -40 degrees C to 60 degrees C
• Applications: For Residential, Digital Cable, on Demand and High-Speed Cable Internet
• Bandwidth: 1 GHz
• Connection Type: F-Connector
• Impedance: 75 ?
• Material: Steel
• Output: 8
• Type: 8 Way, Enhanced, High Performance
• Brand: OnQ Solutions
• Sub Brand: On-Q
• 12-Digit UPC: 804428021629
• Product UPC: 80442802162
• Depth: 1.85 Inch
• Length: 6.42 Inch
• Height: 3 Inch
• frequency range: 5 MHz - 1 GHz
• F-type coaxial jacks: (1 in/8 out)
• installs: in an On-Q structured wiring enclosure (mounting bracket included)
• warranty: 1 year
