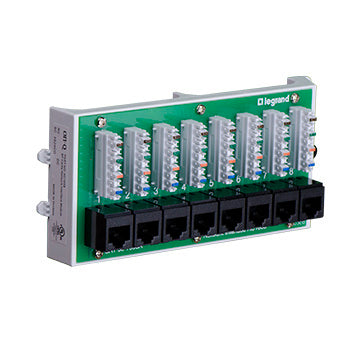

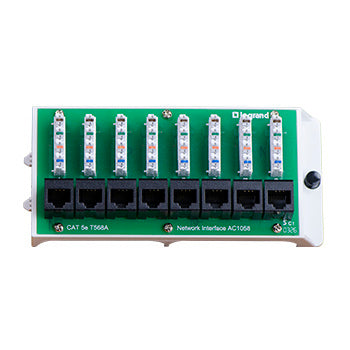

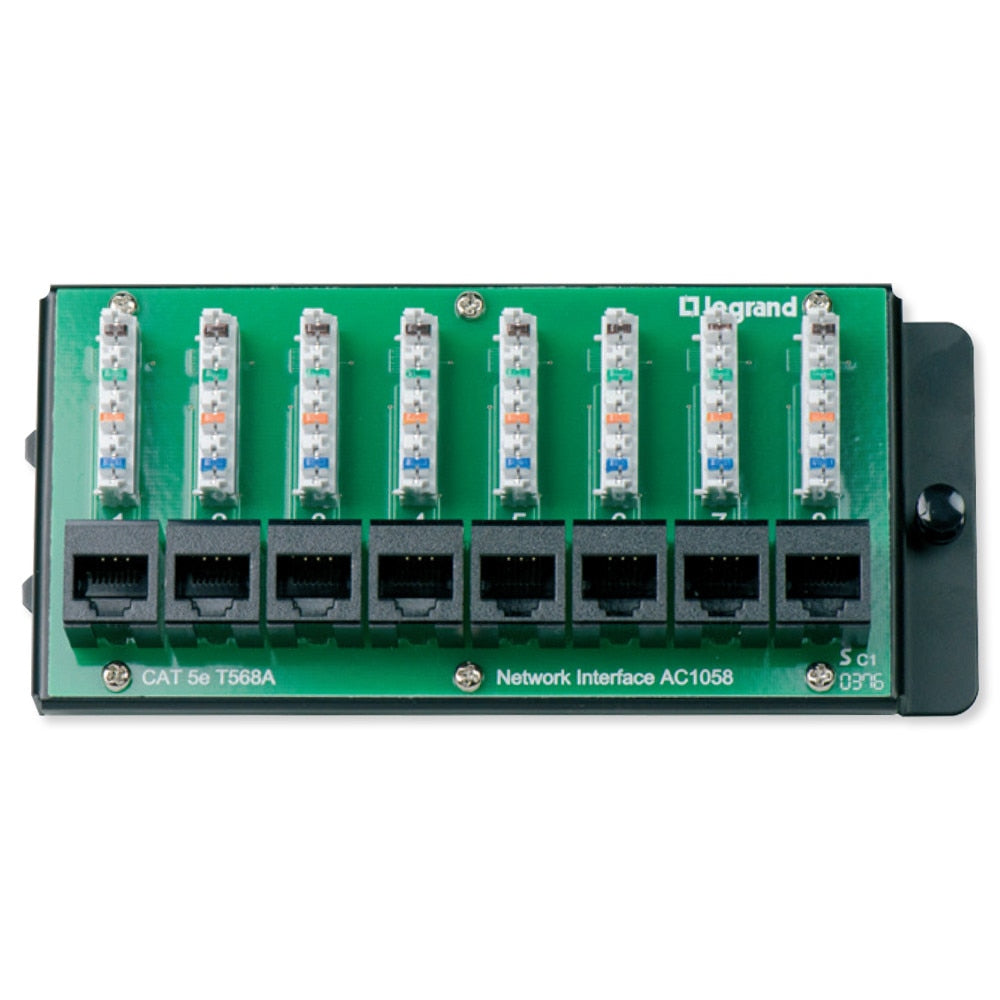

On Q Solutions AC1058 8-Port Cat 5e Network Interface Module

Product Description

The ON Q SOLUTIONS AC1058 8-Port Cat 5e Network Interface Module connects your router or switch to wired networking locations. It features eight front-mounted 110-IDC punchdown terminals and RJ-45 connectors for easy configuration. This module supports termination using the T568A wiring standard and exceeds TIA/EIA 568-C.2 industry standards.

• Provides connectivity for ethernet connected devices like computers, TVs, gaming systems and network streaming devices
• Easy access to front mounted 110-IDC Punchdown terminals and RJ45 Jacks
• Module mounts in all On-Q structured wiring enclosures

Product Highlights

The AC1058 module creates a central location for your local area network, supporting high-speed Cat 5e termination for digital data services.

Product Information

Standard Information

• Brand: ON Q SOLUTIONS
• Manufacturer Part Number: AC1058
• Country of Origin: China

Technical Specifications

• Product Line: On-Q
• Country Of Origin: China
• Product Depth US: 1.5 in
• Product Height US: 6.41 in
• Product Width US: 2.9 in
• CSA Listed: Yes
• RoHS Compliant: Yes
• Manufacturer Part #: AC1058
• Operating Temperature: 0°C – 50°C (32°F – 122°F)
