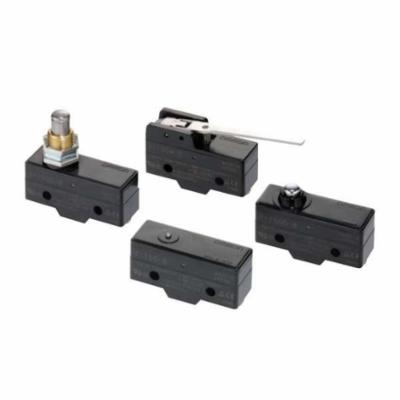

OMRON Z-15GQ-B7-K General Purpose Basic Switch 500 VAC 250 VDC 15 A

Product Description

OMRON Z-15GQ-B7-K is a general purpose basic switch. It operates at 500 VAC and 250 VDC with a maximum amperage of 15 A. The switch features a plunger actuator and is designed for panel mounting.

• Durable snap action with up to 20 million operating cycles.
• Wide range of contact configurations: 1NO-1NC, SPDT.
• Suitable for environments with humidity levels from 35% to 85%.

Product Highlights

This switch is ideal for various industrial applications. It offers precise control with a closed contact resistance of just 15 mOhm, making it efficient for various environments.

Product Information

Standard Information

• Manufacturer: OMRON Corporation
• Category: Limit Switches & Accessories

Technical Specifications

• Actuator: Plunger
• Amperage Rating: 15 A
• Closed Contact Resistance: 15 mOhm
• Contact Configuration: 1NO-1NC, SPDT
• Operating Cycles: 20000000 Cycles
• Operating Temperature: -25 to 80 deg C
• Size: 49.2 in L x 25.5 in W x 17.45 in D
• Voltage Rating: 500 VAC, 250 VDC
