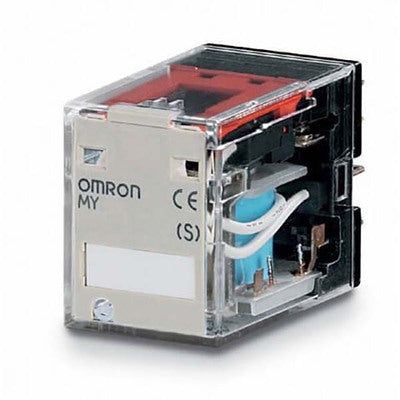

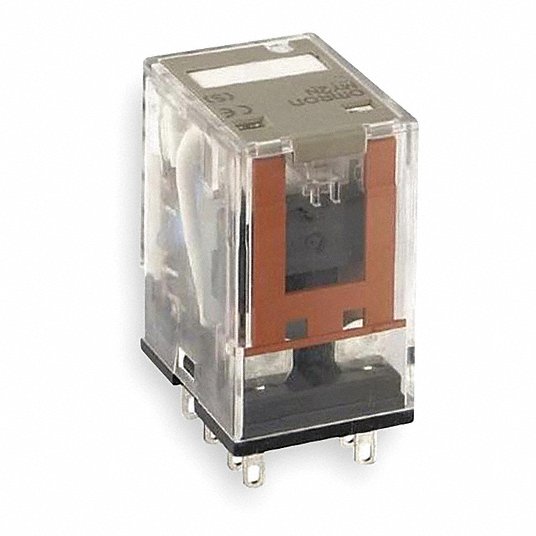

Omron MY2N-DC24(S) General Purpose Relay 24V DC DPDT 8 Pin

Brand: OMRON
SKU: MY2N-DC24(S)
Availability: Out Of Stock
$30.55
$30.55
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The OMRON MY2N-DC24(S) is a general purpose relay with a square base, designed for a variety of applications. This 24V DC relay features a DPDT contact form and a current rating of 10A. It offers quick electrical connections with circuits, has an LED indicator, and a manual push-to-test method.

  • Features a DPDT contact form.
  • Rated for a current of 10A.
  • Includes an LED indicator for status.

Product Highlights

This general purpose relay is ideal for applications requiring periodic relay changes and quick electrical connections.

Product Information

Standard Information

  • Brand: OMRON
  • Manufacturer Part Number: MY2N-DC24(S)
  • Country of Origin: Japan
Technical Specifications
Item
General Purpose Relay
Series
MY Series
Socket
Mfr. No. PYF08A-E
Sealing
Enclosed
Base Type
Square
Horsepower @ 120V AC
1/6 hp
Horsepower @ 240V AC
1/6 hp
Pin Shape
Flat
Standards
CE Marked, CSA Certified, SEV, UL Listed, VDE
Base Shape
Square
Body Depth
1.42 in
Body Width
0.85 in
Coil Voltage
24V DC
Body Height
1.1 in
Motor Rated
Yes
Socket Code
K
Contact Form
DPDT
Push To Test
Manual
Input Voltage
24V DC
Overall Depth
1.67 in
Response Time
20 msec
Contact Rating
10 A at 240 VAC/28 VDC
Current Rating
10 A
Flat Pin Width
0.102 in
Mounting Style
Plug-In
Number of Pins
8.0
Coil Resistance
662 ohm
Contact Material
Silver Nickel
Mounting
Socket
Status Indicator
LED Indicator
Coil Voltage Type
DC
Operating Current
2 A at 220V AC (Inductive Load), 2 A at 24V DC (Inductive Load), 5 A at 220V AC (Resistive Load), 5 A at 24V DC (Resistive Load)
Power Consumption
0.9 W
Contact Rating (AC)
2 A @ 240V, 5 A @ 240V
Contact Rating (DC)
2 A @ 24V, 5 A @ 24V
Dielectric Strength
1,000V AC Between Contacts of Same Polarity, 2,000V AC Between Coil and Contact, 2,000V AC Between Contacts of Different Polarity
Push-To-Test Button
Manual Push Test Button
Push-To-Test Method
Manual
Electrical Connection
Quick-Connect
Insulation Resistance
100 megaohm
Resistance Properties
Shock-Resistant, Vibration-Resistant
Overall Height
1.67 in
Environmental Protection
Enclosed
AC Contact Rating
10A @ 240V
DC Contact Rating
10A @ 28V
Maximum Switching Voltage
125V DC, 250V AC
Electrical Connection Type
Tab
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-67 Degrees F
Electrical Operating Durability
500,000
Mechanical Operating Durability
100,000,000
Compatible Manufacturer Part Number
PY08, PY08-02, PY08-Y1, PYF08A-E, PYF08A-N, PYF08S, PYFZ-08-E
Rated current
5A (resistive load; 250Vac / 30Vdc) 2A (inductive load cos phi = 0.4; L/R = 7ms; 250Vac / 30Vdc) 5A (rated carry current)
Rated power
1100VA max. switching (on a 250Vac circuit; resistive load) 120W max. switching (on a 125Vdc circuit; resistive load) 440VA max. switching (on a 250Vac circuit; inductive load cos phi = 0.4; L/R = 7ms) 48W max. switching (on a 125Vdc circuit; inductive load cos phi = 0.4; L/R = 7ms)
Rated insulation voltage (Ui)
between contacts of the same polarity (50/60Hz; 1min.) 1000 V between contacts of different polarity (50/60Hz; 1min.) 2000 V between coil and contacts (50/60Hz; 1min.) 2000 V
Control Voltage (DC)
19.2-26.4Vdc (24Vdc nom.) relay is guaranteed to close at 19.2Vdc input and above relay is guaranteed to be opened at 2.4Vdc input or below above 26.4Vdc sustained voltage relay may face permanent coil damage
Contacts type
2C/O / DPDT contacts
Material
Silver (Ag) alloy contacts coating
Ambient air temperature for operation
-55...+60 °C
Current consumption
36.3mA (DC)
Electrical durability (with load)
500 000 operations
Mechanical durability (at no load)
100 000 000 operations
Equivalent to
MY2N DC24 (S) MY2N-DC24 (S) MY2NDC24S
Inductance
(armature OFF) 3.2 mH (armature ON) 5.72 mH
Compliant with standard(s)
CE cURus CSA VDE LR
Frequency Rating
50/60 Hz
Number Of Poles
2
Power Rating
300 W
Terminal Type
Plug-In
Application
For use with control panel
Amperage Rating
10 A
Maximum Pick-Up Voltage
19.2VDC
Minimum Dropout Voltage
2.4VDC
Maximum AC Switching Voltage
250
Maximum DC Switching Voltage
125
Maximum Switching Current
10
Maximum Switching Power
300W|2.5kVA
Operate Time (ms)
20
LED Indicator
Yes
Push to Test Button
No
Coil Suppression Diode
No
Relay Construction
Non-Latching
Termination Style
Solder Lug
Number of Terminals
8
Minimum Operating Temperature (°C)
-55
Maximum Operating Temperature (°C)
70
