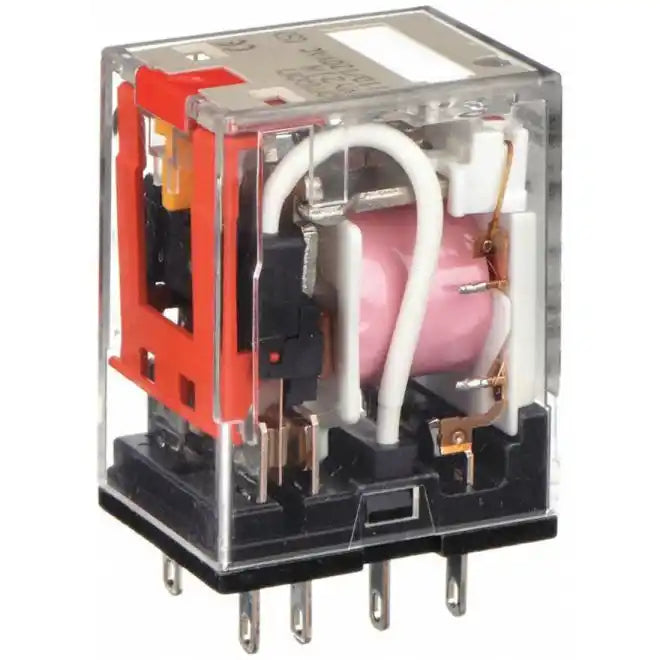

Omron MY2INAC110/120(S) MY Series DPDT Miniature Relay

Product Description

The Omron MY2IN AC110/120 (S) is a MY series relay that has been an industry leader for over 15 years. It features a DPDT contact configuration and a coil voltage of 110VAC - 120VAC. Standard options include a push to test button, LED indicator, and write-on nameplate. It is suitable for base/socket mounting with plug-in terminals.

• Industry leader for over 15 years
• Diverse contact configuration (DPDT 4PDT)
• Many different coil voltages (10 different AC and DC)
• Standard options such as: push to test button, mechanical indicator, LED indicator and write-on nameplate

Product Highlights

The Omron MY series relay offers diverse contact configurations and coil voltages, with standard options such as a push-to-test button and LED indicator.

Product Information

Standard Information

• Brand: OMRON
• Manufacturer Part Number: MY2INAC110/120(S)
• Country of Origin: Japan

Technical Specifications

• Brand: Omron Automation
• Manufacturer Part Number: MY2IN AC110/120 (S)
• Manufacturer Alternate Number: MY2INAC110120S
• UPC: 4.54E+12
• Coil Voltage: 120V AC
• Contact Arrangement: DPDT (2 Form C)
• Terminal Type: Plug-in
• Mounting Type: Base/Socket
• Indicator: LED
• Test Button: Yes
• Max. Switching Voltage: 250 VAC, 125 VDC
• Max. Switching Current: 10 A
• Rated Current: 2 A at 250 VAC, 2 A at 30 VDC
• Rated Load (Resistive): 5 A at 250 VAC, 5 A at 30 VDC
• Max. Switching Power(Resistive): 2,500 VA, 300 W
• Max. Switching Power (Inductive): 500 VA, 60 W
• Minimum Load: 1 mA at 5 VDC
• Operating Temperature: -55°C - +70°C
• Power Consumption: Approx. 0.9 VA to 1.3 VA (60 Hz)
• RoHS Compliant: Yes
• Series: MY
• Relay Mounting Style: Socket
• Electrical Connection Type: Pin
• Number of Pins/Terminals: 8
• Contact Rating (AC): 10 A @ 120V
• Contact Rating (DC): 5 A @ 28V
• Horsepower @ 120V AC: 1/6 hp
• Horsepower @ 240V AC: 1/6 hp
• Push-To-Test Button: Lockable Push Test Button
• Sealing: Enclosed
• Coil Voltage (Nominal@60Hz): 120V AC
• UNSPSC: 39121515
