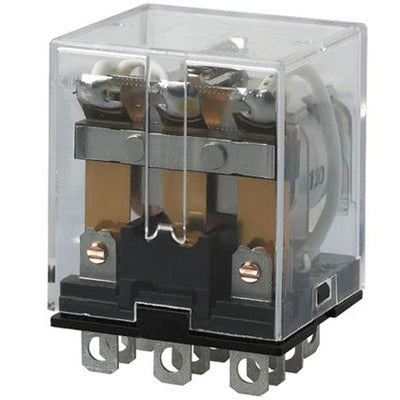

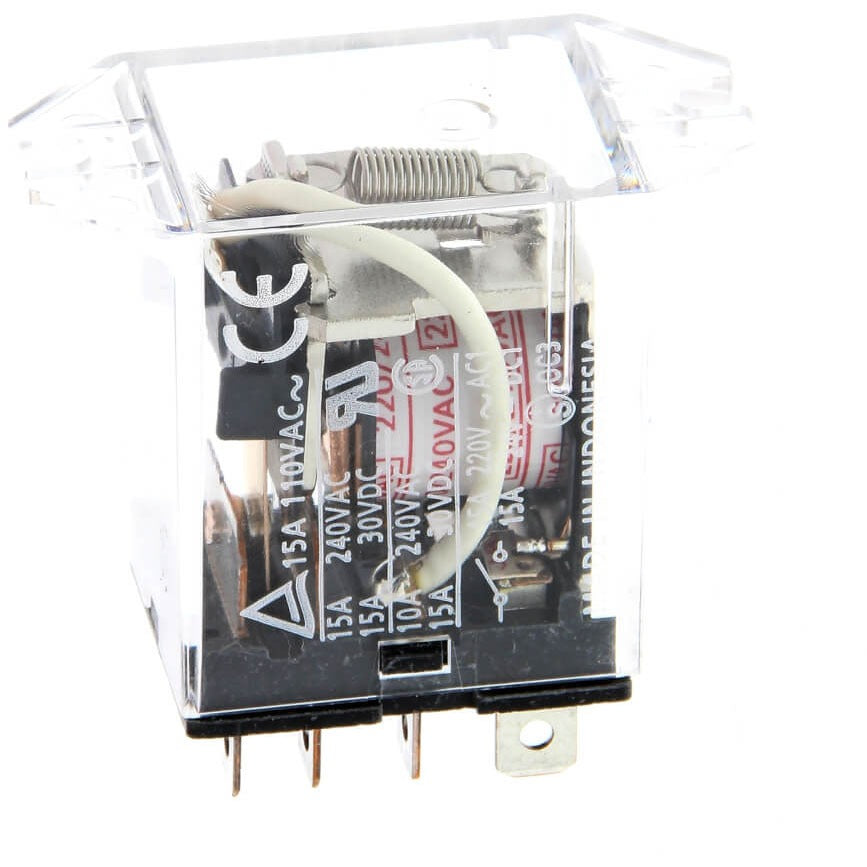

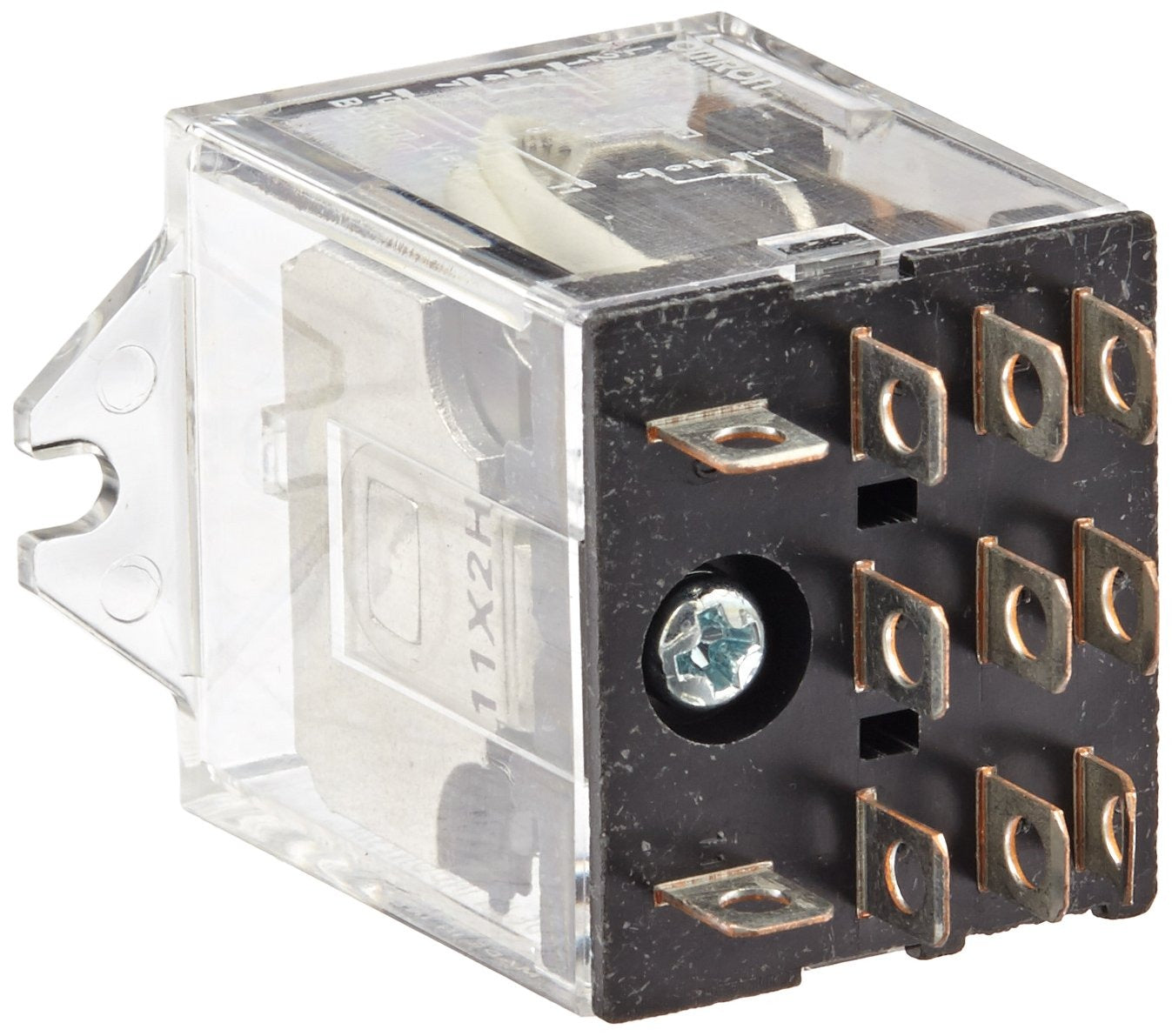

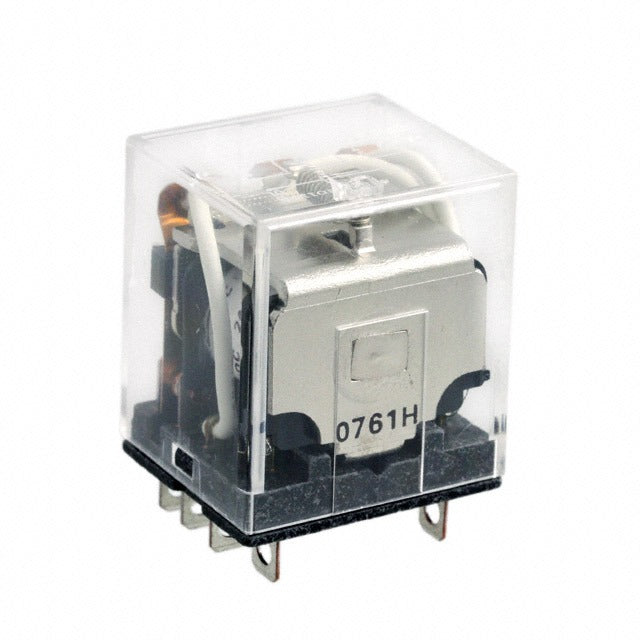

Omron LY3F-AC24 Relay Gen Purpose 3PDT 10A 24VAC (11-Pin) LY3FAC24

Brand: OMRON
SKU: LY3F-AC24
Availability: In Stock

Ships same day if ordered by 12 pm
$37.37
$37.37
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Omron LY3F-AC24 is a general-purpose electromechanical relay with a 24 VAC coil and 3PDT (triple pole double throw) contacts. It provides 10 A contact switching, plug-in terminals with an 11-pin configuration, and upper-bracket or top-flange mounting for socket or panel installation. The relay offers 2,000 VAC dielectric strength, coil input currents of 80 mA (50 Hz) and 67 mA (60 Hz), and an operating range of -25 to +55 C.

  • Contact form: 3PDT (three poles, double throw) with 10 A contact rating and silver alloy contacts
  • Coil: 24 VAC; input current 80 mA (50 Hz) / 67 mA (60 Hz)
  • Mounting and connections: plug-in terminals, 11-pin octal base, upper-bracket/top-flange mounting

Product Highlights

General-purpose 3PDT 24 VAC relay, 10 A contacts, 2000 VAC dielectric strength, -25 to +55 C

Product Information

Standard Information

  • Brand: OMRON
  • Manufacturer Part Number: LY3F-AC24
  • Country of Origin: Indonesia
Technical Specifications
Brand
Omron
Manufacturer Part Number
LY3F-AC24
Product Type
General-purpose electromechanical relay
Contact Form
3PDT (Triple Pole Double Throw)
Coil Voltage
24 VAC
Input Current (50 Hz)
80 mA
Input Current (60 Hz)
67 mA
Contact Rating (Current)
10 A
Load Rating
110 VAC, 10 A
Dielectric Strength
2000 VAC (between coil and contacts; other dielectric ratings reported)
Operating Temperature
-25 to +55 C
Dimensions (H x W x D)
1.40 x 0.85 x 1.10 inches
Number of Pins
11
Termination
Plug-in terminals
Mounting Type
Plug-in; upper-bracket (case-surface) or top-flange mounting
Contact Material
Silver alloy
Power Consumption
1.6 to 2.0 VA
Response Time
Max 25 ms
Electrical Durability
200,000 operations
Mechanical Durability
100,000,000 operations
Must Operate Voltage
19.2 VAC
Must Release Voltage
7.2 VAC
Standards/Certifications
UL, CSA, IEC, Electrical Appliances and Material Safety Act
Country of Origin
Indonesia
