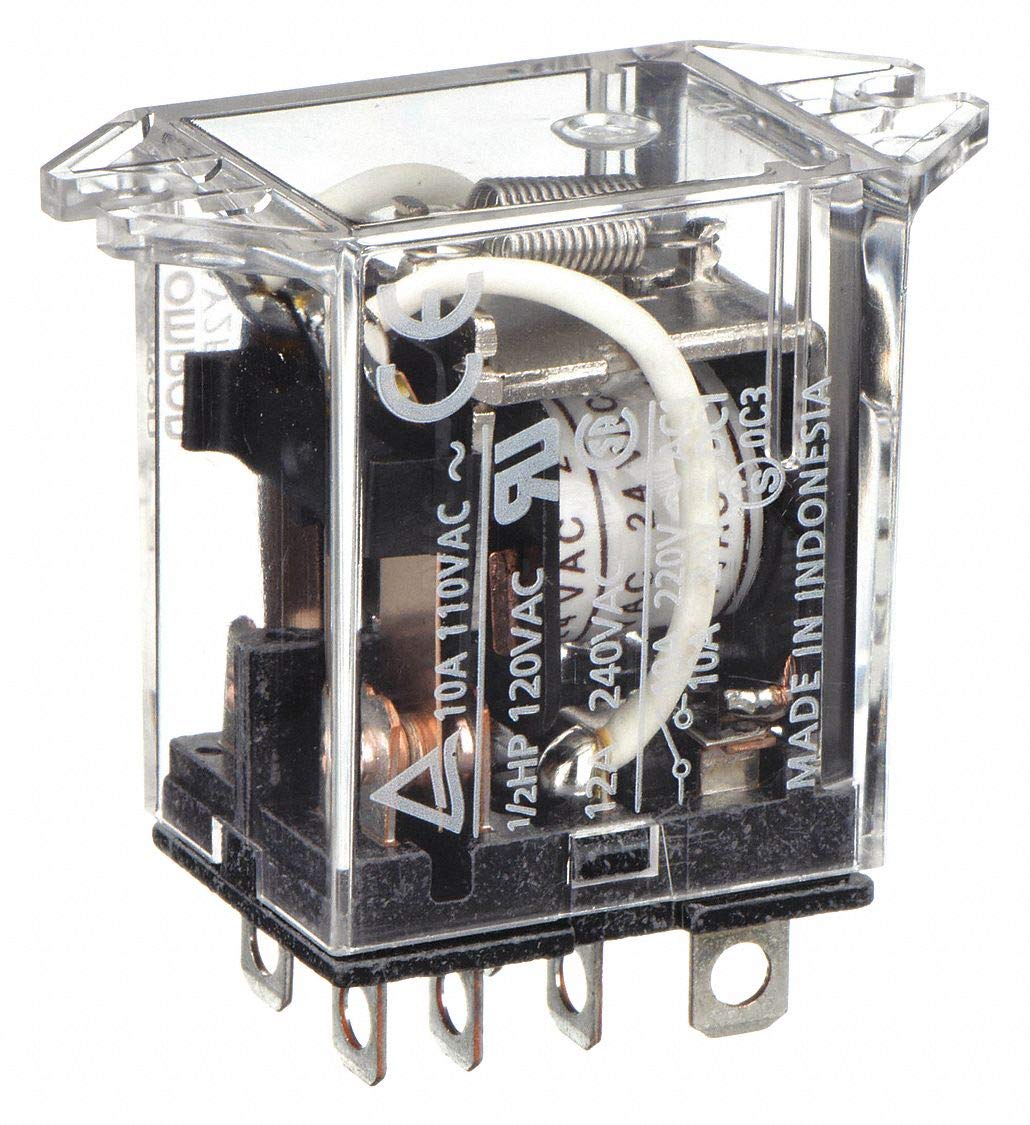

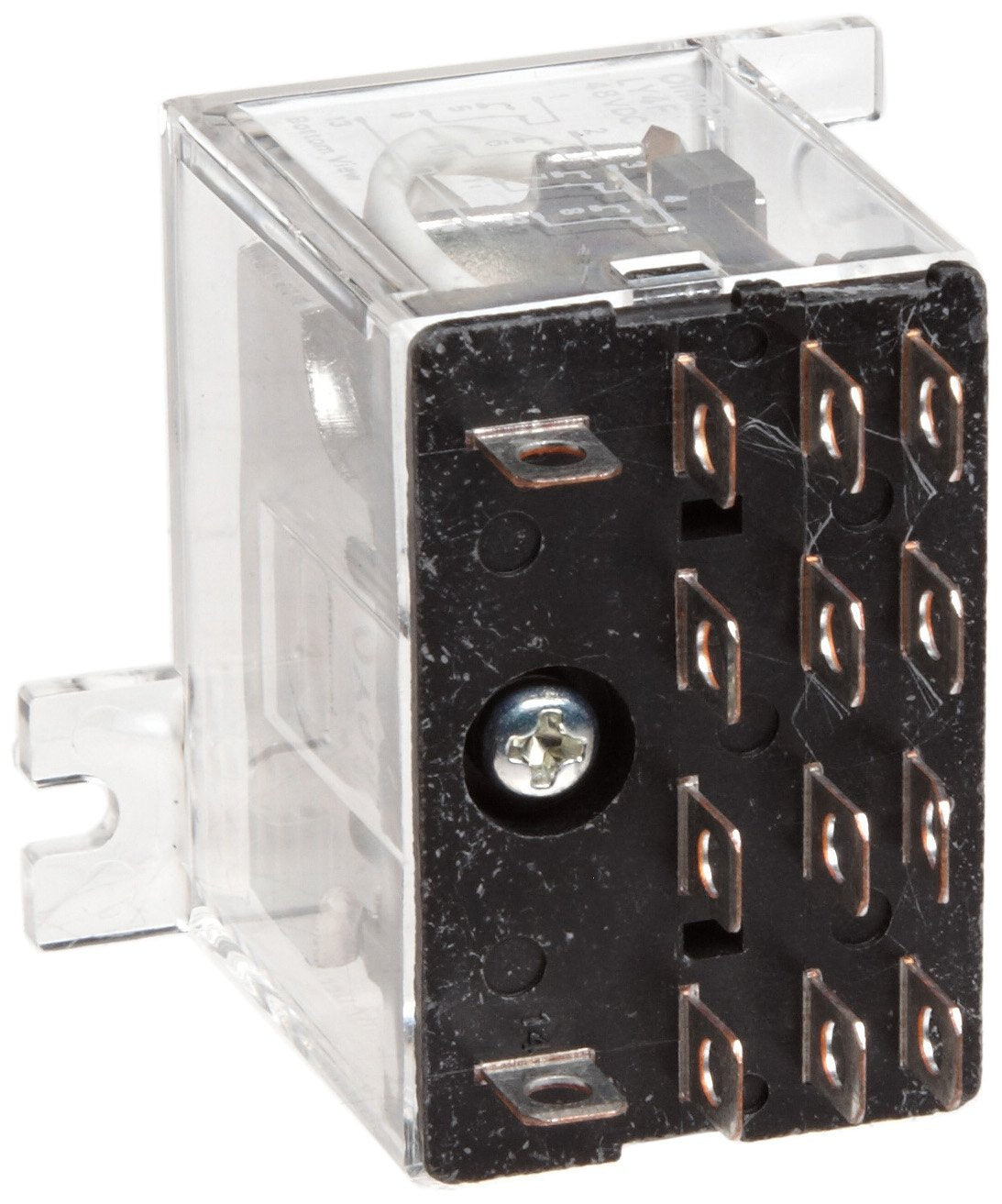

Omron LY2F-AC24 General Purpose Relay 24 VAC

Brand: OMRON
SKU: LY2F-AC24
Availability: In Stock

Ships same day if ordered by 12 pm
$36.78
$36.78
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Omron LY2F-AC24 is a general purpose relay with plug-in/solder terminals and an upper mounting bracket. This relay features double pole double throw contacts and a rated load voltage of 24 VAC. It is suitable for use in low current applications. The LY2F-AC24 is designed for diverse industrial applications.

  • Standard Type
  • Plug-In/Solder Terminal
  • Upper Mounting Bracket

Product Highlights

This general purpose relay is suitable for a variety of applications. It has a compact design and is suitable for use in installations with limited space.

Product Information

Standard Information

  • Brand: OMRON
  • Manufacturer Part Number: LY2F-AC24
  • Country of Origin: Indonesia
Technical Specifications
Brand
Omron
Type
General Purpose Relay
Terminal
Plug-In/Solder Terminal
Mounting
Upper Mounting Bracket
Contact Form
DPDT
Rated Load Current
53.8 mA at 50 Hz and 46 mA at 60 Hz
Rated Load Voltage
24 VAC
Pins
8
Contact Material
Silver Alloy
Coil Volts
24VAC
Contact Rating
10A @ 110VAC/24VDC
Contact Configuration
DPDT
Contact Current
10A
Product Range
LY Series
Relay Mounting
Plug In
Coil Type
Non Latching
Contact Voltage VAC
110VAC
Relay Terminals
Solder
RoHS Compliant
Yes
Load current rating
53.8 mA at 50 Hz, 46 mA at 60 Hz
Load voltage rating
24 VAC
Dielectric strength
2,000 VAC
Operating temperature
-40 to +70 degrees C
Enclosure dimensions
44 x 22.5 x 35.5 mm (H x W x D)
Standards met
UL (Underwriter's Laboratories), CSA (Canadian Standards Association)
Voltage
24V
Amperage
10A
Termination
Solder Pin
Resistance
180 OHM
Degree of protection
Closed type (cover)
Coil ratings
24 VAC 50 Hz 53.8 mA, 24 VAC 60 Hz 46 mA
Coil resistance
180 Ω
Operate voltage (Set voltage)
80 % max.
Release voltage (Reset voltage)
30 % min.
Maximum voltage
110 %
Power consumption
Approx. 1.0 to 1.2 VA 60 Hz
Contact rated load
10 A (Resistive load), 110 VAC 7.5 A (Inductive load (cosφ = 0.4)), 24 VDC 10 A (Resistive load), 24 VDC 5 A (Inductive load (L/R = 7 ms))
Max. contact voltage
250 VAC, 125 VDC
Max. contact current
AC: 10 A, DC: 10 A
Contact method
Single
Contact material
Ag alloy
Contact resistance
50 mΩ max. (Voltage drop method with 5 VDC 1 A)
Operating time
25 ms max. (With rated operating power applied, 23 ℃, not including contact bounce)
Reset time
25 ms max. (With rated operating power applied, 23 ℃, not including contact bounce)
Maximum operating frequency Mechanical
18000 time/hour
Maximum operating frequency Rated load
1800 time/hour
Insulation resistance Between coil and contacts
100 MΩ min. (at 500 VDC)
Insulation resistance Between contacts of same polarity
100 MΩ min. (at 500 VDC)
Insulation resistance Between contacts of different polarity
100 MΩ min. (at 500 VDC)
Dielectric strength Between coil and contacts
2000 VAC 50/60 Hz 1 min
Dielectric strength Between contacts of same polarity
1000 VAC 50/60 Hz 1 min
Dielectric strength Between contacts of different polarity
2000 VAC 50/60 Hz 1 min
Vibration resistance (destruction)
10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude)
Vibration resistance (Malfunction)
10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude)
Shock resistance (destruction)
1000 m/s2
Shock resistance (Malfunction)
200 m/s2
Endurance (Mechanical)
50 million operations min. (switching frequency 18,000 operations/h)
Failure rate
100 mA at 5 VDC (failure level: Preference value, Switching frequency: 120 operations per minute)
Ambient temperature (Operating)
-25 to 55 ℃ (with no freezing or condensation)
Ambient humidity (Operating)
5 to 85 %
Mounting method
Case-surface mounting
Contact Voltage VDC
24V
Coil Resistance
180ohm
Approvals & Standards
CE, CSA, UL, VDE
Enclosure
Upper Mounting Bracket
