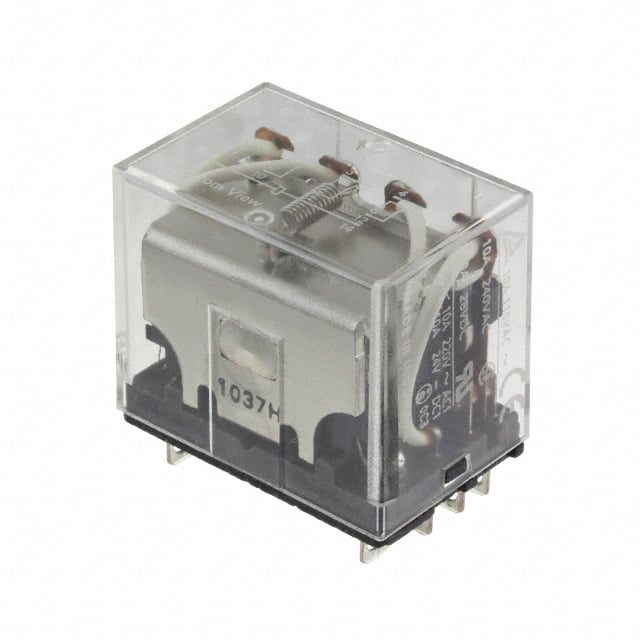

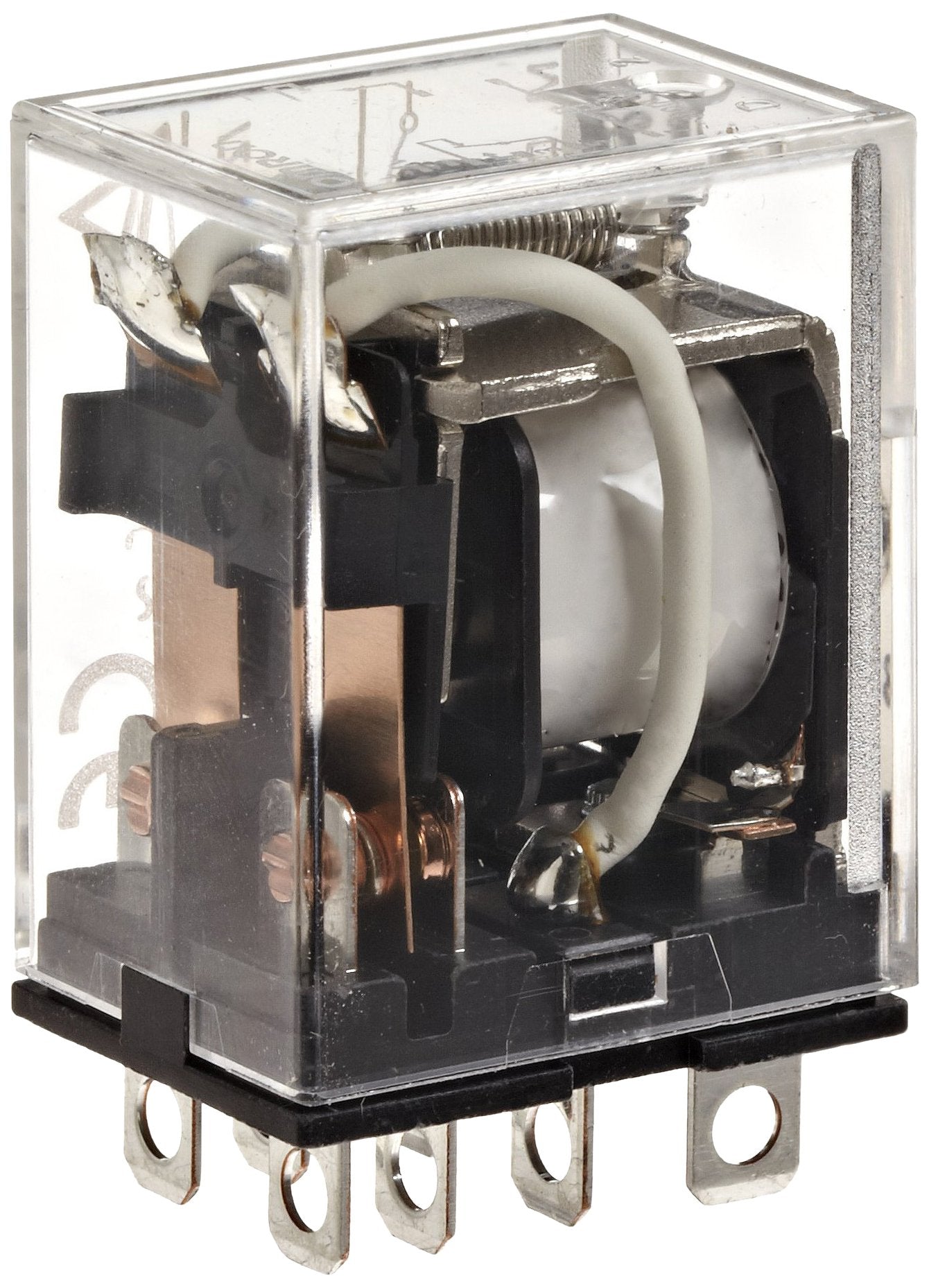

Omron LY2-AC12 General Purpose Relay 12 VAC (1 Pack) LY2AC12

Product Description

Omron LY2-AC12 is a general-purpose electromechanical relay with a 12 VAC coil and DPDT (2 Form C) contacts. It provides 10 A contact switching up to 250 VAC/125 VDC with silver-alloy contacts and 8-pin plug-in/socket mounting. The coil is specified at 9.6–13.2 VAC (12 VAC nominal) with 1–1.2 VA power consumption and typical operate/release times of 25 ms. Operating range is -25 to +55 C and dielectric strength up to 2000 VAC.

• DPDT (2 Form C) contacts rated 10 A; max switching 250 VAC / 125 VDC; silver alloy contact coating
• 12 VAC coil (9.6–13.2 VAC operate range), power consumption 1–1.2 VA; coil resistance and coil current values in source show inconsistency (see validation notes)
• 8-pin plug-in/socket mounting with quick-connect options; operate/release time 25 ms; operating temperature -25 to +55 C

Product Highlights

12 VAC DPDT general-purpose relay, 10 A contacts, 8-pin plug-in/socket mounting, silver-alloy contacts

Product Information

Standard Information

• Brand: OMRON
• Manufacturer Part Number: LY2-AC12

Technical Specifications

• Brand: Omron
• Manufacturer Part Number: LY2-AC12
• Product Type: Electromechanical relay / General purpose relay
• Relay Type: General purpose
• Contact Configuration: DPDT (2 Form C) / Double pole double throw
• Number of Poles: 2
• Contact Rating (Current): 10 A
• Max Switching Voltage (AC): 250 VAC
• Max Switching Voltage (DC): 125 VDC
• Contact Material: Silver alloy
• Contact Resistance: 50 mOhm max. (1 A at 5 Vdc, voltage drop method)
• Insulation Resistance: 100 MOhm min. (at 500 Vdc)
• Dielectric Strength: 1000 V between same polarity contacts; 2000 V between different polarity contacts; 2000 VAC between coil and contacts
• Coil Voltage (AC): 12 VAC nominal
• Control Voltage Range (AC): 9.6-13.2 VAC (guaranteed operate >=9.6 VAC, release <=3.6 VAC)
• Power Consumption: 1.0-1.2 VA (at 60 Hz)
• Mounting Type: Plug-in / socket mounting
• Connection Type: 8-pin plug-in connections / quick-connect terminals
• Operate Time: OFF->ON max 25 ms
• Release Time: ON->OFF max 25 ms
• Electrical Durability (with load): 500,000 operations
• Mechanical Durability (no load): AC 50,000,000 operations; DC 100,000,000 operations
• Operating Temperature: -25 to +55 C
• Dimensions (HxWxD): 36 mm x 21.5 mm x 28 mm (1.42 x 0.85 x 1.10 inches)
• Weight (Item): 20 g
• Certifications: CE, cURus, UL, CSA, TUV, SEV, LR, VDE, UR
• EAN / GTIN: 4536853611378
