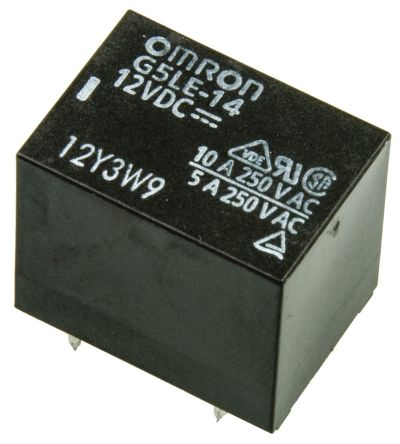

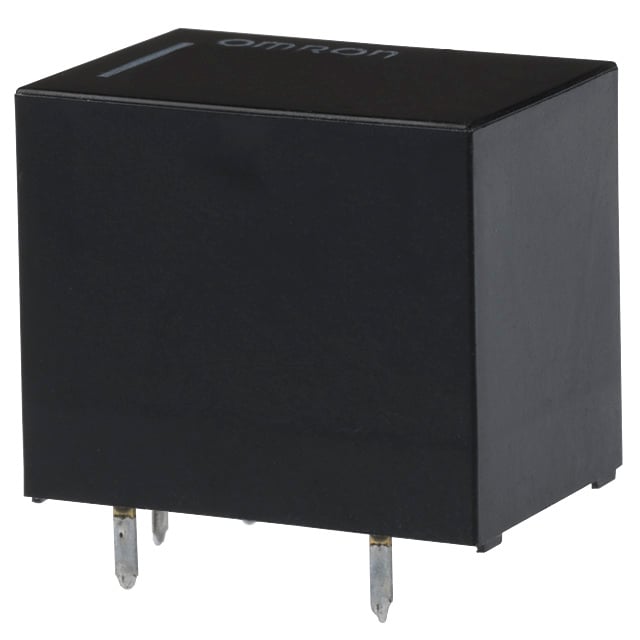

Omron G5LE-14-DC12 power relay SPDT 12VDC 10A PC board

Product Description

The OMRON G5LE-14-DC12 is a general purpose PCB mount power relay, featuring a SPDT (1 Form C) contact form with AgSnO2 contacts. It operates with a 12VDC coil and handles a 10A current rating, designed for PC board mounting. This fully sealed relay has an operate time of 10 ms and an operating temperature range of -25°C to 85°C.

• PCB Mount Relay
• 12VDC coil SPDT
• 10 Amp switching

Product Highlights

General purpose SPDT power relay with 10A switching capacity and 12VDC coil, suitable for PCB mounting.

Product Information

Standard Information

• Brand: OMRON
• Manufacturer Part Number: G5LE-14-DC12

Technical Specifications

• Product Type: RELAY
• Manufacturer: Omron
• Brand: Omron
• Model / MPN: G5LE-14-DC12
• Contact Form: SPDT (1 Form C)
• Contact Material: AgSnO2
• Current Rating: 10A
• Coil Voltage: 12VDC
• Mounting Type: PCB Mount
• Seal Rating: Sealed - Fully
• Coil Insulation: Class B
• Series: G5LE
• Must Operate Voltage: 9 VDC
• Operate Time: 10 ms
• Release Time: 5 ms
• Operating Temperature: -25°C ~ 85°C
• Approval Agency: CSA, TUV, UR, VDE
• Switching Voltage: 250VAC, 125VDC - Max
• Relay Type: General Purpose
• Coil Current: 33.3 mA
• Coil Resistance: 360 Ohms
• Coil Type: Non Latching
• Base Product Number: G5LE-14
• Termination Style: PC Pin
• Mechanism: E-Mech
• Function: Power
