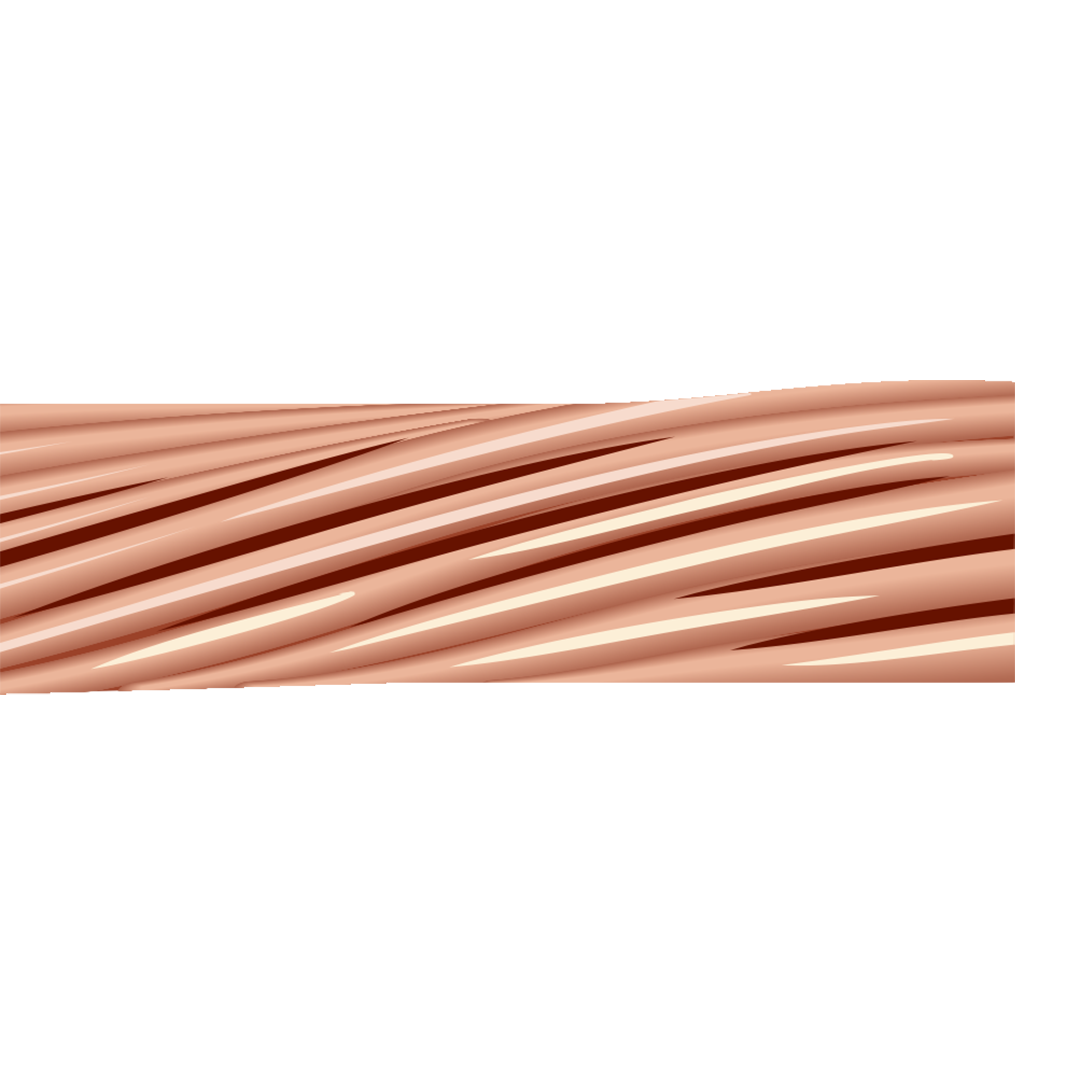

Omni Cable Q10607 6 AWG 7 stranded bare copper conductor 500 ft reel BST7S6

Product Description

Omni Cable Q10607 is a 500-foot 6 AWG 7-strand bare copper conductor reel, soft-drawn to ASTM B-1, B-2, and B-8 standards. The uninsulated, unjacketed stranded conductor has an outside diameter of 0.184 inches and is rated for an allowable ampacity of 130 A at 75 C for both direct burial and in-duct installations. Typical applications include overhead transmission, distribution, grounding, jumpers, and uninsulated hook-up.

• Stranded bare copper per ASTM B-1, B-2, B-8 with soft-drawn combination unilay temper
• Uninsulated and unjacketed design for overhead transmission, distribution, jumpers, and grounds
• Allowable ampacity: 130 A at 75 C (direct burial and in duct); outside diameter 0.184 inches

Product Highlights

500 ft reel of 6 AWG, 7-strand bare copper conductor; uninsulated/unjacketed; 130 A allowable ampacity at 75 C.

Product Information

Standard Information

• Brand: OMNI CABLE
• Manufacturer Part Number: Q10607

Technical Specifications

• Brand: Omni Cable
• Manufacturer Part Number: Q10607
• Reel Length: 500 ft
• Size AWG: 6
• Number of Strands: 7
• Conductor Type: Bare copper
• Conductor Construction: Stranded bare copper per ASTM B-1, B-2, B-8; soft-drawn combination unilay temper
• Temper: Soft-drawn (combination unilay)
• Outside Diameter: 0.184 inches
• Weight: 85 lb/1000 ft (equates to 42.5 lb for 500 ft reel)
• Insulation: Uninsulated
• Jacket: Unjacketed
• Allowable Ampacity (Direct Burial, 75 C): 130 A
• Allowable Ampacity (Duct, 75 C): 130 A
• Applications: Overhead transmission and distribution; uninsulated hook up, jumpers, and grounds in electrical construction
• Compatible Manufacturer Part Numbers: Service Wire Co: BST7S6; Omni Cable: Q10607; Houston Wire & Cable: HW00000601
• SKU: NNC2140X03
