OMNI C30801 8 AWG Copper MG Lead Wire

Product Description

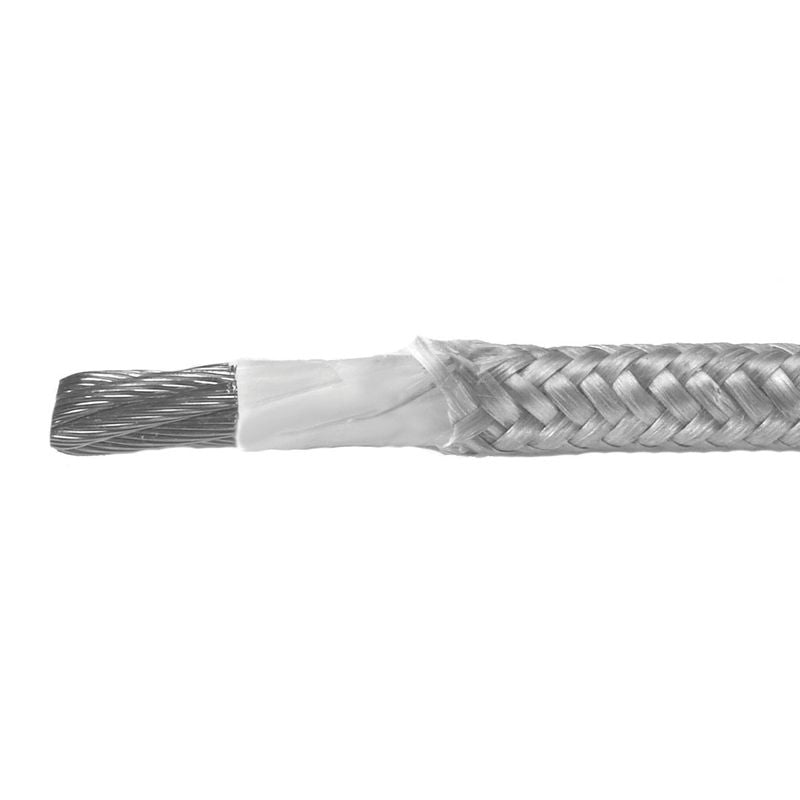

The OMNI C30801 is an 8 AWG lead wire designed for high-temperature applications. This wire has a conductor made from annealed stranded copper featuring one hundred thirty-three strands. It is insulated with glass-reinforced mica tape, providing robust protection against heat and electrical interference. The wire comes with a tan fiberglass braid jacket and is rated for six hundred volts and a temperature of four hundred fifty degrees Celsius. It can be used in equipment wiring at iron and steel mills, cement kilns, and glass plants. Additionally, it is suitable for internal wiring of cooking appliances and domestic and commercial ovens.

• Flexible stranded conductor for easy installation.
• Insulated with glass reinforced mica tape.
• UL 5107 and 5359 Listed for safety.

Product Highlights

This wire meets rigorous safety standards and is ideal for industrial and cooking environments.

Product Information

Standard Information

• Brand: OMNI
• Manufacturer Part Number: C30801

Technical Specifications

• Strands: 133
• Outside Diameter: 0.265 inches
• Temperature Rating: 450 degrees Celsius
• Voltage Rating: 600 volts
• Conductor Material: Copper
• Number of Conductors: 1
• Jacket Material: Fiberglass Braid
• Insulation Material: Glass Reinforced Mica Tape
• Conductor Size: 8 AWG
• Jacket Color: Tan
• Country Of Origin: France
• RoHS Flag: Yes
• UNSPSC: 41113630
• Insulation Thickness: 0.03 inches
• Jacket Thickness: 0.017 inches
• Stranded/Solid: Stranded
