OMNI A11802R 18/2 VNTC Tray Cable

Product Description

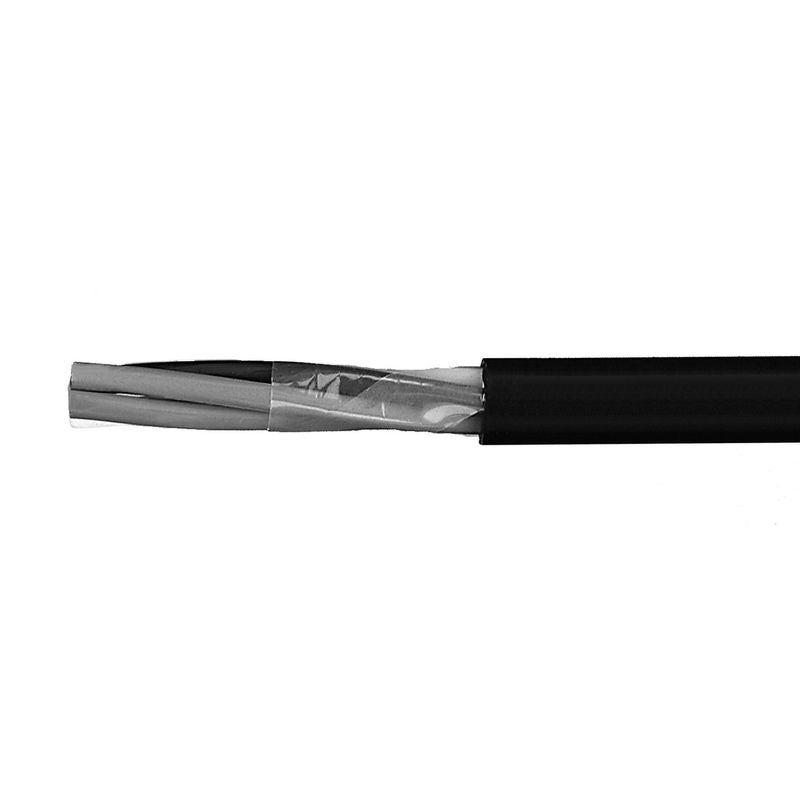

The OMNI Cable A11802R is an 18 AWG tray cable made for various applications such as free air, raceways, and direct burial. This cable has two bare stranded copper conductors that meet ASTM B3 standards. It is designed for both wet and dry locations and features flame-retardant PVC insulation with a nylon jacket.

• Suitable for free air, raceways, and direct burial applications.
• UL 1581 Listed and TC-ER rated.
• RoHS compliant.

Product Highlights

This cable is rated for 600 VAC and has a temperature tolerance of up to 194 degrees Fahrenheit. The construction includes a black jacket that is both flame-retardant and sunlight-resistant, ensuring durability in various conditions.

Product Information

Standard Information

• Brand: OMNI Cable
• Conductor Size: 18 AWG

Technical Specifications

• Conductor Material: Bare Copper
• Conductor Type: Annealed Bare Stranded Copper
• Insulation Material: PVC/Nylon
• Jacket Color: Black
• Jacket Material: PVC
• Number of Conductors: 2
• Outside Diameter: 0.27 inches
• Strands: 7
• Temperature Rating: 194 degrees F (90 degrees C)
• Voltage Rating: 600 VAC
• Country Of Origin: France
